Drilling Machines

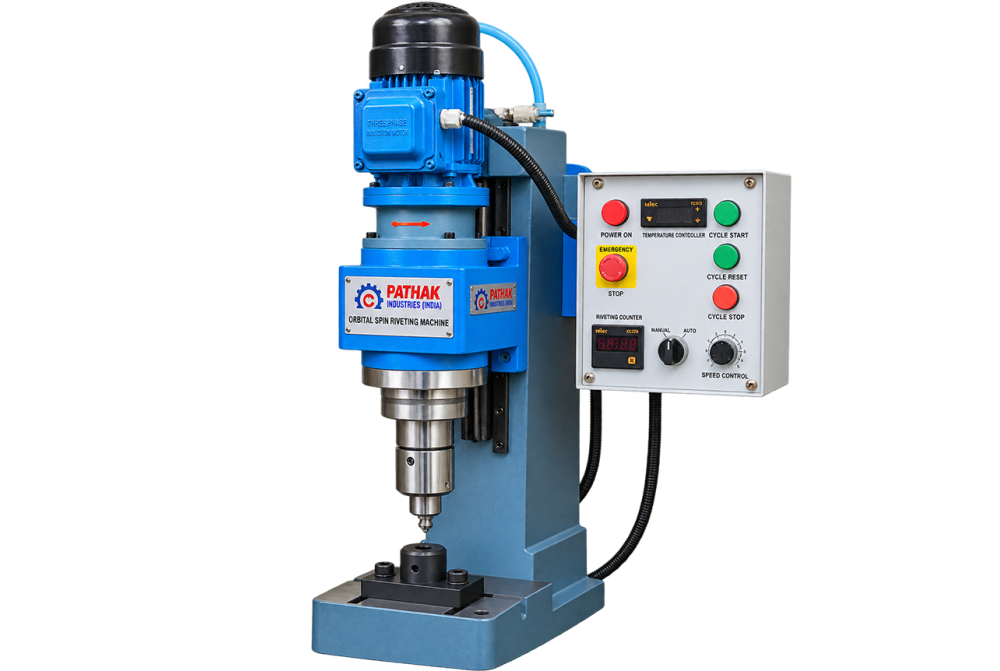

Orbital Spin Riveting Machine
For work involving plates, linings, utensils, and title-specific assemblies, the Orbital Spin Riveting Machine offers a process-specific solution. The operating method supports automotive parts, cookware, sheet-metal products, and repair shops and centres on guided pressure for consistent joint formation.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Orbital Spin Riveting Machine
Machine Purpose
The Orbital Spin Riveting Machine provides a dedicated method of forming permanent riveted joints. Rather than acting as unrelated general equipment, it brings the working elements together around plates, linings, utensils, and title-specific assemblies.
How It Works
A typical cycle begins with locating the job correctly, after which the machine supports the assembly and deforms the rivet with controlled pressure. Its guided pressure for consistent joint formation supports repeat work without replacing the need for trained operation.
Industrial Applications
Likely users are found in automotive parts, cookware, sheet-metal products, and repair shops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Orbital Spin Riveting Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODELS | Riveting capacity (M.S.38kg/mm U.T.S) (mm) | Throat depth (mm) |
Shut height (Max) (mm) |
Stroke Adjustable (mm) | Cycle time Adjustable(mm) | Over all dim.(mm) | Motor3 415V | Air Pressure |
| Model-003 | 3 | 110 | 200 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.25 HP (0.18 kw) | 3-7 kg/cm |
| Model-005 | 6 | 110 | 180 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.5 HP (0.37 kw) | 3-7 kg/cm |
| Model-008 | 8 | 140 | 225 | 0-45 | 0-9.9 sec. | 570x525x1100 | 1 HP (0.75 kw) | 3-7 kg/cm |
| Model-012 | 12 | 200 | 280 | 0-45 | 0-9.9 sec. | 625x585x1325 | 1.5 HP (1.2 kw) | 3-7 kg/cm |
| Model-016-H | 16 | 225 | 220 | 0-45 | 0-9.9 sec | 540x615x1375 | 6.0 HP (4.5 kw) Including Power Pack | 0-80 kg/cm (Hydraulic Pressure) |
Applications
Applications
Rollers
Bakelite Metal Assembly
Bicycle Parts
Chain Assembly
Fans
Clutch Brake Liners
Toys
Electronics
Electrical Parts
Castors
Hand Tools
Auto Electricals
Surgical Instruments
Baggage
Locks
Typewriters
FAQs
Frequently Asked Questions
What is a Orbital Spin Riveting Machine used for?
The Orbital Spin Riveting Machine is intended for forming permanent riveted joints. It is arranged around plates, linings, utensils, and title-specific assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Orbital Spin Riveting Machine?
The machine supports the assembly and deforms the rivet with controlled pressure. Its guided pressure for consistent joint formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Orbital Spin Riveting Machine?
It is primarily associated with plates, linings, utensils, and title-specific assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Orbital Spin Riveting Machine?
Typical users include automotive parts, cookware, sheet-metal products, and repair shops. In these settings, the Orbital Spin Riveting Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Orbital Spin Riveting Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Orbital Spin Riveting Machine be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Orbital Spin Riveting Machine price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Orbital Spin Riveting Machine.
