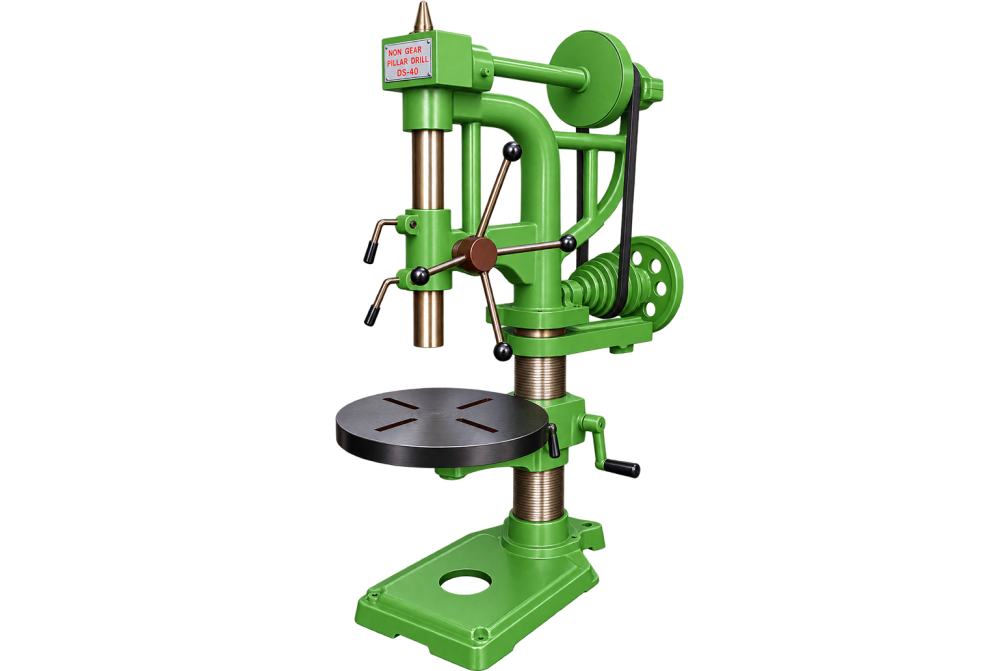

Non Gear Pillar Drill Machine PM 40
For work involving metal parts, plates, castings, and fabricated assemblies, the Non Gear Pillar Drill Machine PM 40 offers a process-specific solution. Its stable spindle guidance and practical feed control suits engineering workshops, maintenance departments, and production floors.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Non Gear Pillar Drill Machine PM 40
Machine Purpose
The Non Gear Pillar Drill Machine PM 40 is a purpose-built unit for creating positioned holes and related hole-finishing work. Its layout is organised around metal parts, plates, castings, and fabricated assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to engineering workshops, maintenance departments, and production floors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Non Gear Pillar Drill Machine PM 40 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Drilling capacity in Steel | 40mm |
| Spindle Taper | JT-6/MT-2 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 625 |
| Distance btw centre of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 250 |
| Max Distance btw Spindle & Base | 363 |
| Table working space | Ø 200 |
| Base Working Surface (Machined) | 175 x 175 |
| Overall size of base | 320 x 320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (rpm) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 45 Kg |
| Space Occupied (LxBxH) | 390 x 300 x 815 |
