NC Press Brake Machine
Sheet Metal Machines

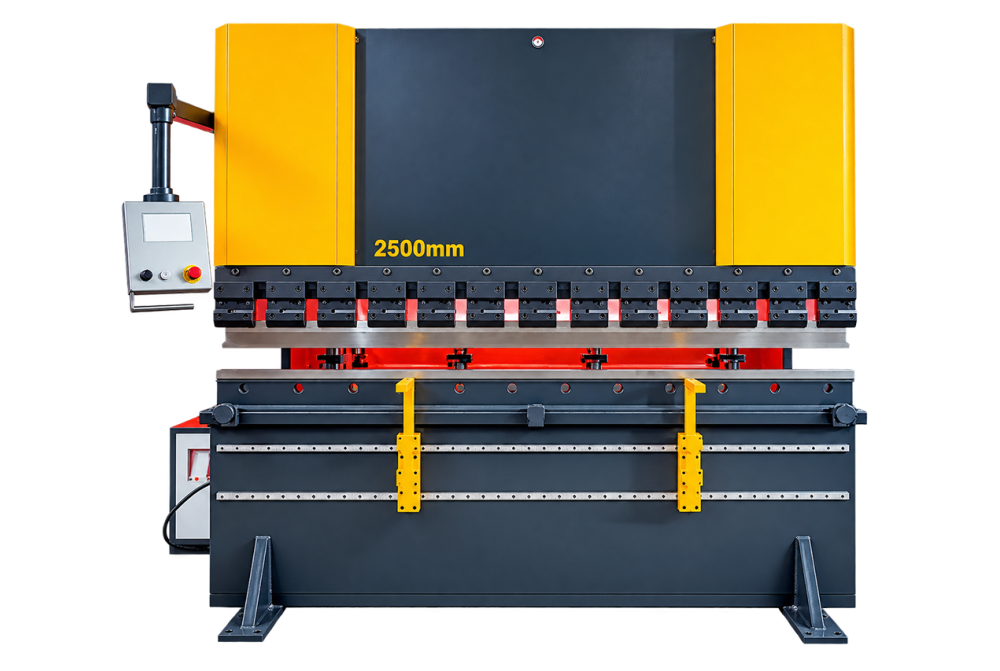

NC Press Brake Machine

The primary role of the NC Press Brake Machine is forming straight bends in sheet and plate. The operating method supports enclosure production, ducting, and fabrication shops and centres on guided ram motion with adaptable tooling.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

NC Press Brake Machine

Machine Purpose

Used for forming straight bends in sheet and plate, the NC Press Brake Machine addresses a distinct stage of industrial work. It accommodates sheet blanks, panels, brackets, and profiles and keeps setup, tool engagement, and job handling centred on that task.

Industrial Applications

The machine is applicable to enclosure production, ducting, and fabrication shops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.

How It Works

In operation, it drives a punch into a matched die along the bend line. The practical focus is guided ram motion with adaptable tooling. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.

Selection Considerations

Machines within sheet metal machines can differ in arrangement and capability. The required NC Press Brake Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Model Name Pressing Force Bending Length Stroke Power Max Daylight Table Height Distance Between Throat Depth Approach Speed Pressing Speed Return Speed Motor Power
NCPB 1612 50 Tons 1600 mm 125 mm 350 mm 800 mm 1250 mm 250 mm 50 mm/sec 10 mm/sec 40 mm/sec 5 H.P.
NCPB 1612 80 Tons 1600 mm 125 mm 350 mm 800 mm 1250 mm 250 mm 50 mm/sec 10 mm/sec 40 mm/sec 5 H.P.
NCPB 2116 50 Tons 2100 mm 125 mm 450 mm 800 mm 1600 mm 300 mm 50 mm/sec 10 mm/sec 40 mm/sec 5 H.P.
NCPB 2116 80 Tons 2100 mm 125 mm 450 mm 800 mm 1600 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 7.5 H.P.
NCPB 2520 80 Tons 2500 mm 150 mm 450 mm 900 mm 2000 mm 300 mm 80 mm/sec 10 mm/sec 60 mm/sec 7.5 H.P.
NCPB 2520 100 Tons 2500 mm 150 mm 450 mm 900 mm 2000 mm 300 mm 80 mm/sec 10 mm/sec 60 mm/sec 7.5 H.P.
NCPB 3125 80 Tons 3100 mm 150 mm 550 mm 900 mm 2500 mm 300 mm 80 mm/sec 10 mm/sec 60 mm/sec 7.5 H.P.
NCPB 3125 100 Tons 3100 mm 150 mm 550 mm 900 mm 2500 mm 300 mm 80 mm/sec 10 mm/sec 60 mm/sec 7.5 H.P.
NCPB 3125 150 Tons 3100 mm 150 mm 550 mm 900 mm 2500 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 15 H.P.
NCPB 3125 200 Tons 3100 mm 200 mm 550 mm 900 mm 2500 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 15 H.P.
NCPB 3125 250 Tons 3100 mm 200 mm 550 mm 900 mm 2500 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 20 H.P.
NCPB 3125 300 Tons 3100 mm 250 mm 550 mm 900 mm 2500 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 25 H.P.
NCPB 3125 400 Tons 3100 mm 250 mm 550 mm 900 mm 2500 mm 300 mm 70 mm/sec 10 mm/sec 50 mm/sec 30 H.P.
NCPB 4135 250 Tons 4100 mm 200 mm 550 mm 900 mm 3100 mm 300 mm 60 mm/sec 10 mm/sec 40 mm/sec 20 H.P.
NCPB 4135 400 Tons 4100 mm 250 mm 550 mm 900 mm 3100 mm 300 mm 60 mm/sec 10 mm/sec 40 mm/sec 30 H.P.
Short Videos

YouTube Short Videos

FAQs

Frequently Asked Questions

Which operation is the NC Press Brake Machine designed to perform?
The NC Press Brake Machine is intended for forming straight bends in sheet and plate. It is arranged around sheet blanks, panels, brackets, and profiles, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a NC Press Brake Machine work?
The machine drives a punch into a matched die along the bend line. Its guided ram motion with adaptable tooling supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a NC Press Brake Machine?
It is primarily associated with sheet blanks, panels, brackets, and profiles. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a NC Press Brake Machine?
Typical users include enclosure production, ducting, and fabrication shops. In these settings, the NC Press Brake Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different NC Press Brake Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a NC Press Brake Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a NC Press Brake Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title NC Press Brake Machine.
