Sheet Metal Machines

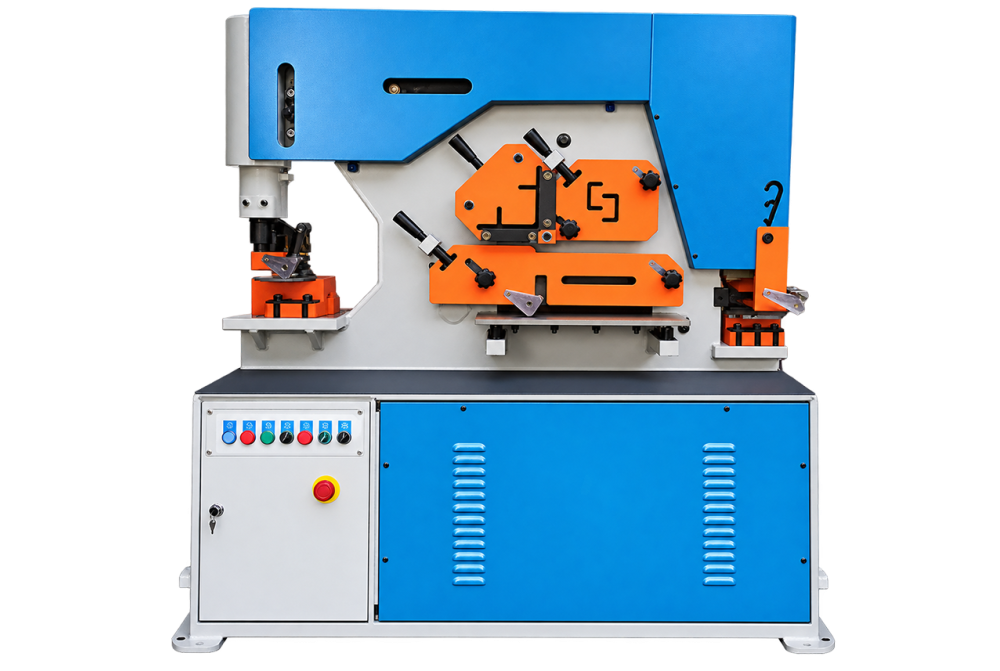

Multipurpose Iron Worker Machine
The primary role of the Multipurpose Iron Worker Machine is performing the specialised operation identified by its title. The operating method supports production workshops, maintenance departments, and engineering facilities and centres on a task-focused layout built around its primary operation.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Multipurpose Iron Worker Machine
Machine Purpose
Used for performing the specialised operation identified by its title, the Multipurpose Iron Worker Machine addresses a distinct stage of industrial work. It accommodates components and materials suitable for the named process and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in production workshops, maintenance departments, and engineering facilities. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within sheet metal machines can differ in arrangement and capability. The required Multipurpose Iron Worker Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PIW-66 | PIW-90 | PIW-120 | PIW-160 | PIW-200 |
| Punching Force | 660 KN | 900 KN | 1200 KN | 1600 KN | 2000 KN |
| Punching Capacity | 25x16 mm | 30x20 mm | 30x25 mm | 35x30 mm | 38x35 mm |
| Throat Depth | 300 | 355 | 406 | 600 | 700 |
| Max Stroke Length | 80 | 80 | 80 | 80 | 80 |
| Cycle/Min (25 mm Stroke) | 20 | 20 | 20 | 20 | 20 |
| Punching Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Square Bar Shear | 40x40 | 50x50 | 50x50 | 55x55 | 60x60 |
| Round Bar Shear | 45 | 50 | 60 | 65 | 70 |
| Channel Shear | 120 | 160 | 200 | 280 | 320 |
| H Beam Shear | 120 | 160 | 200 | 280 | 320 |
| Equal Angle at 90 | 125x12 | 140x12 | 160x14 | 180x16 | 200x16 |
| Section Table Height | 940 | 1010 | 1100 | 1250 | 1300 |
| Rectangular Notcher (WxDxT) | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 | 800x100x8 |
| Notching Table Height | 900 | 900 | 910 | 1040 | 1040 |
| Max Width Of Shear | 400x8 mm | 480x10 mm | 600x16 mm | 600x20 mm | 700x25 mm |
| Round Bar Shear | 250x16 mm | 330x20 mm | 330x25 mm | 355x30 mm | 450x35 mm |
| Channel Shear | 900 | 900 | 910 | 1030 | 1030 |
| Motor Power | 4 KW | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
| Tensile Strength | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 | 450 N/mm 2 |
| Oil Volume | 60 L | 80 L | 120 L | 210 L | 250 L |
| Machine Dimension (LxWxH) | 1640x730x1770 mm | 1860x900x1900 mm | 2355x960x2090 mm | 2690x1040x2300 mm | 2900x1200x2450 mm |
| Machine Weight | 1700 kg | 2300 kg | 4300 kg | 6800 kg | 9500 kg |
