Sheet Metal Machines

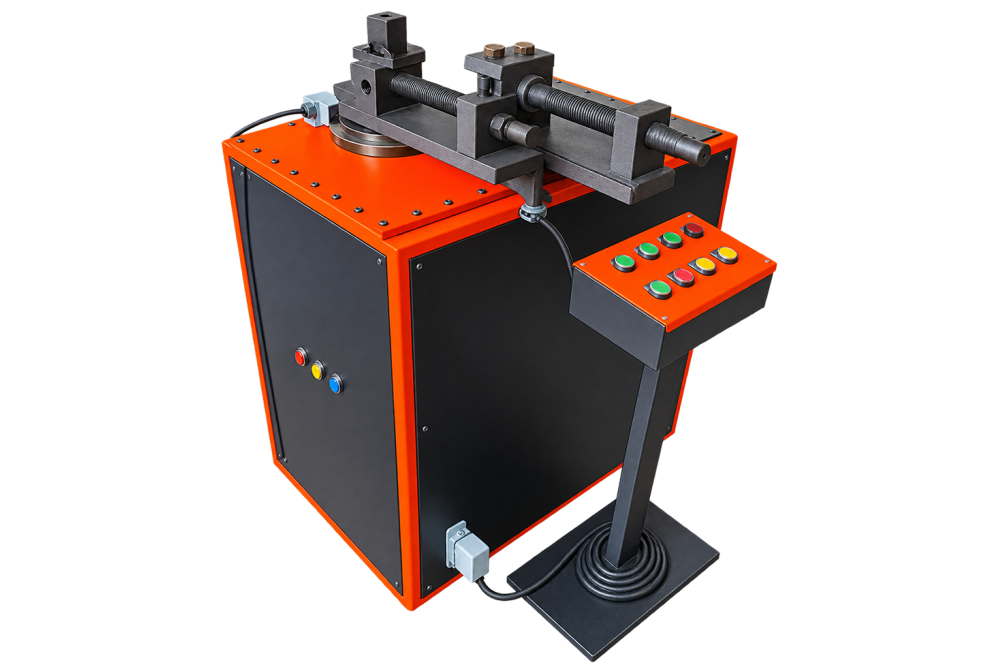

Motor Based Degree Pipe Bending Machines
The Motor Based Degree Pipe Bending Machines is designed for forming sheet, plate, pipe, bar, or sections into required shapes. It draws, presses, or rolls supported material around suitable tooling, with dedicated tooling that supports material during forming.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Motor Based Degree Pipe Bending Machines
Machine Purpose
The Motor Based Degree Pipe Bending Machines is a purpose-built unit for forming sheet, plate, pipe, bar, or sections into required shapes. Its layout is organised around the metal stock identified by the machine title, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it draws, presses, or rolls supported material around suitable tooling. The design therefore prioritises dedicated tooling that supports material during forming; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Motor Based Degree Pipe Bending Machines, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model Name | ROUND PIPE | SQUARE PIPE | ROUND BAR | SQUARE BAR | MOTOR | MOTO RISE | HYDRAULIC | CYLINDER NOS |
| PMBM 1.5''-2 MM | OD 38*2mm | 38*38*2mm | 15mm | 15*15mm | 2 HP | YES | NO | NO |
| PMBM 2''-3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | YES | NO | NO |
| PHBM 2''- 3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | NO | YES | 1 NOS |
| PHBM 2''-5 MM | OD 50*5mm | 50*50*3mm | 20mm | 20mm | 5 HP | NO | YES | 1 NOS |
| PHBM 2.5''-5 MM | OD 63*5mm | 63*63*5mm | 25mm | 25mm | 5 HP | NO | YES | 1 NOS |
| PHBM 3''-5 MM | OD 76*5mm | 76*76*5mm | 28mm | 28mm | 7.5 HP | NO | YES | 1 NOS |
| PHCBM 2''-3 MM | OD 50*3mm | 50*50*3mm | 18mm | 18mm | 3 HP | NO | YES | 3 NOS |
| PHCBM 2''-5 MM | OD 50 5mm | 50*50*3mm | 20mm | 20mm | 5 HP | NO | YES | 3 NOS |
| PHCBM 2.5''-5 MM | OD 63*5mm | 63*63*5mm | 25mm | 25mm | 5 HP | NO | YES | 3 NOS |
| PHCBM 3''-5 MM | OD 76 5mm | 76*76*5mm | 28mm | 28mm | 7.5 HP | NO | YES | 3 NOS |
| PHCBM3.5''- 5 MM | OD 90*5mm | 90*90*5mm | 35mm | 35mm | 7.5 HP | NO | YES | 3 NOS |
| PHCBM 4''-5 MM | OD 114*5mm | 110*110*5mm | 40mm | 40mm | 10 HP | NO | YES | 3 NOS |
FAQs
Frequently Asked Questions
Which operation is the Motor Based Degree Pipe Bending Machines designed to perform?
The Motor Based Degree Pipe Bending Machines is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Motor Based Degree Pipe Bending Machines work?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Motor Based Degree Pipe Bending Machines?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Motor Based Degree Pipe Bending Machines?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Motor Based Degree Pipe Bending Machines may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Motor Based Degree Pipe Bending Machines models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Motor Based Degree Pipe Bending Machines require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Motor Based Degree Pipe Bending Machines vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Motor Based Degree Pipe Bending Machines.
