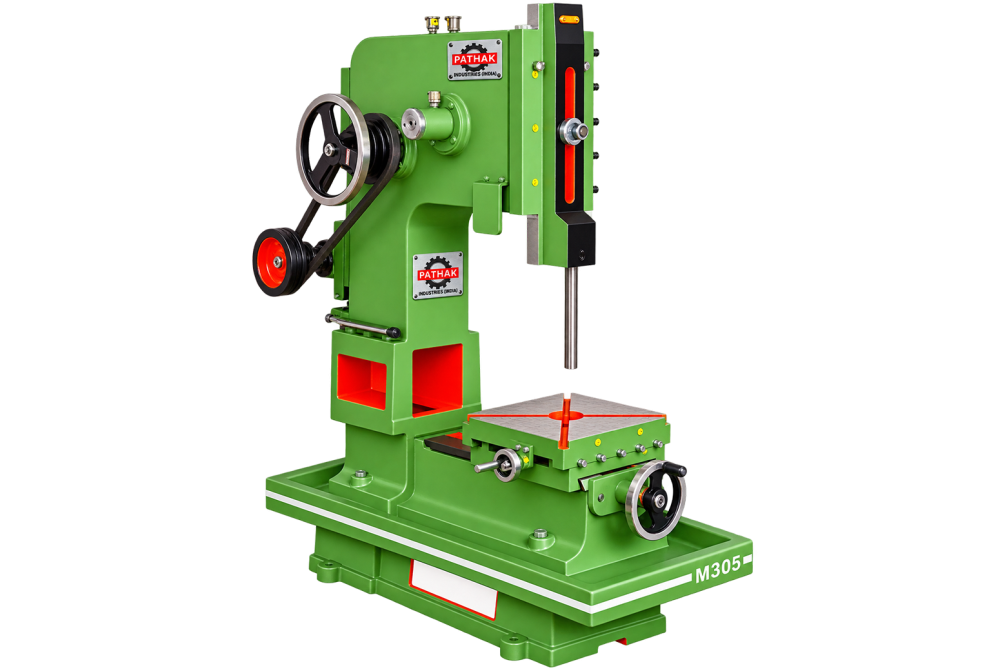

Mini Slotting Machine 6
The Mini Slotting Machine 6 is designed for cutting internal slots, keyways, and vertical profiles. Typical users include repair shops, tool rooms, and gear workshops, where vertical tool access to internal surfaces is valuable. The compact format suits appropriately sized work and restricted floor space.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Mini Slotting Machine 6
Machine Purpose
The Mini Slotting Machine 6 provides a dedicated method of cutting internal slots, keyways, and vertical profiles. Rather than acting as unrelated general equipment, it brings the working elements together around gears, pulleys, bushes, and internal features.
How It Works
A typical cycle begins with locating the job correctly, after which the machine reciprocates a single-point tool vertically through the component. Its vertical tool access to internal surfaces supports repeat work without replacing the need for trained operation. The compact format suits appropriately sized work and restricted floor space.
Industrial Applications
The machine is applicable to repair shops, tool rooms, and gear workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Mini Slotting Machine 6, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPMS-6 | TLPMS-10 | TLPMS-12 |
| Tool to Pillar Distance | 210 mm | 330 mm | 495 mm |
| Ram to Table Distance | 310 mm | 410 mm | 430 mm |
| Table Size | 280x335 mm | 280x335 mm | 360x305 mm |
| Adjustable Stroke | 10 to 150 mm | 10 to 250 mm | 10 to 300 mm |
| Longitudinal Movement | 200 mm | 230 mm | 300 mm |
| Cross Movement | 110 mm | 110 mm | 110 mm |
| No. of Speed | 3 Speed | 3 Speed | 3 Speed |
| Ram Adjustment | 150 mm | 250 mm | 300 mm |
| Power Required | 1 H.P. | 1.5 H.P. | 2 H.P. |
FAQs
Frequently Asked Questions
Which operation is the Mini Slotting Machine 6 designed to perform?
The Mini Slotting Machine 6 is intended for cutting internal slots, keyways, and vertical profiles. It is arranged around gears, pulleys, bushes, and internal features, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Mini Slotting Machine 6 work?
The machine reciprocates a single-point tool vertically through the component. Its vertical tool access to internal surfaces supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Mini Slotting Machine 6?
It is primarily associated with gears, pulleys, bushes, and internal features. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Mini Slotting Machine 6?
Typical users include repair shops, tool rooms, and gear workshops. In these settings, the Mini Slotting Machine 6 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Mini Slotting Machine 6 models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Mini Slotting Machine 6 require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Mini Slotting Machine 6 vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mini Slotting Machine 6.
How does design arrangement affect the Mini Slotting Machine 6?
The compact format suits appropriately sized work and restricted floor space. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
