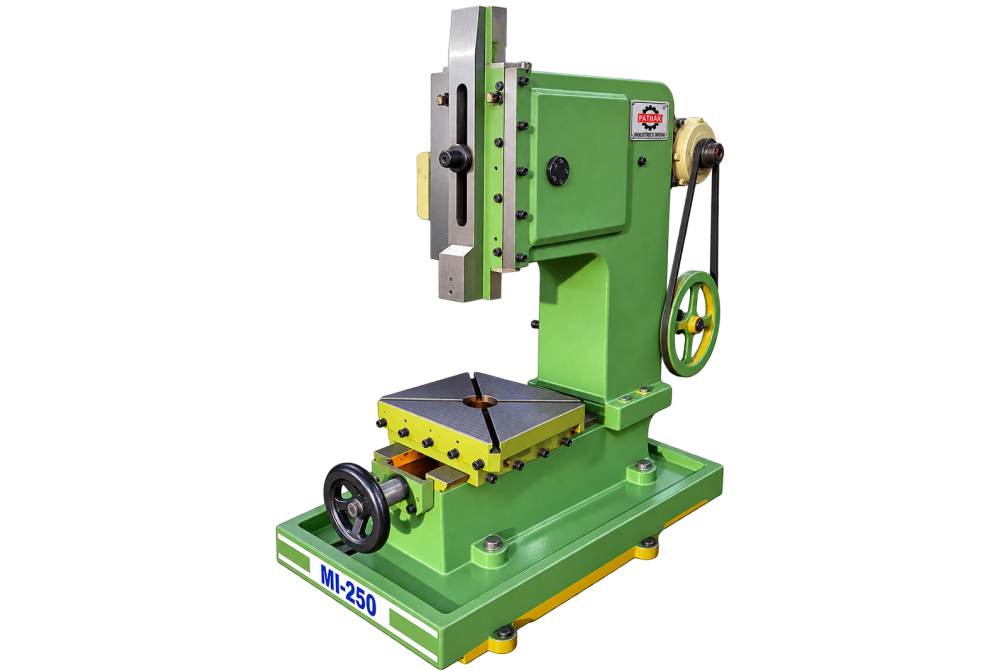

Mini Slotting Machine 250
The primary role of the Mini Slotting Machine 250 is cutting internal slots, keyways, and vertical profiles. The operating method supports repair shops, tool rooms, and gear workshops and centres on vertical tool access to internal surfaces. The compact format suits appropriately sized work and restricted floor space.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Mini Slotting Machine 250
Machine Purpose
Used for cutting internal slots, keyways, and vertical profiles, the Mini Slotting Machine 250 addresses a distinct stage of industrial work. It accommodates gears, pulleys, bushes, and internal features and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in repair shops, tool rooms, and gear workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it reciprocates a single-point tool vertically through the component. The practical focus is vertical tool access to internal surfaces. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. The compact format suits appropriately sized work and restricted floor space.
Selection Considerations
Machines within workshop equipment can differ in arrangement and capability. The required Mini Slotting Machine 250 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Mini Slotting Machine Specifications | MI-250 |
| Working Stroke | 10mm To 250mm |
| Longitudinal Traverse | 245mm |
| Cross Traverse | 85mm |
| Speed Adjustment | 3 Speed |
| Ram Adjustment | Upto 250 mm |
| Motor Requirment | 1.5 H.P |
| A- Distance from Body to Ram | 310 mm |
| B- Distance from Body to T-Slot Slide | 370 mm |
| C-T-Slot Table Size | 280mm x 330 mm |
Videos
Product Videos
FAQs
Frequently Asked Questions
Which operation is the Mini Slotting Machine 250 designed to perform?
The Mini Slotting Machine 250 is intended for cutting internal slots, keyways, and vertical profiles. It is arranged around gears, pulleys, bushes, and internal features, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Mini Slotting Machine 250 work?
The machine reciprocates a single-point tool vertically through the component. Its vertical tool access to internal surfaces supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Mini Slotting Machine 250?
It is primarily associated with gears, pulleys, bushes, and internal features. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Mini Slotting Machine 250?
Typical users include repair shops, tool rooms, and gear workshops. In these settings, the Mini Slotting Machine 250 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Mini Slotting Machine 250 models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Mini Slotting Machine 250 require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Mini Slotting Machine 250 vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mini Slotting Machine 250.
What is the benefit of design arrangement on this Mini Slotting Machine 250?
The compact format suits appropriately sized work and restricted floor space. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
