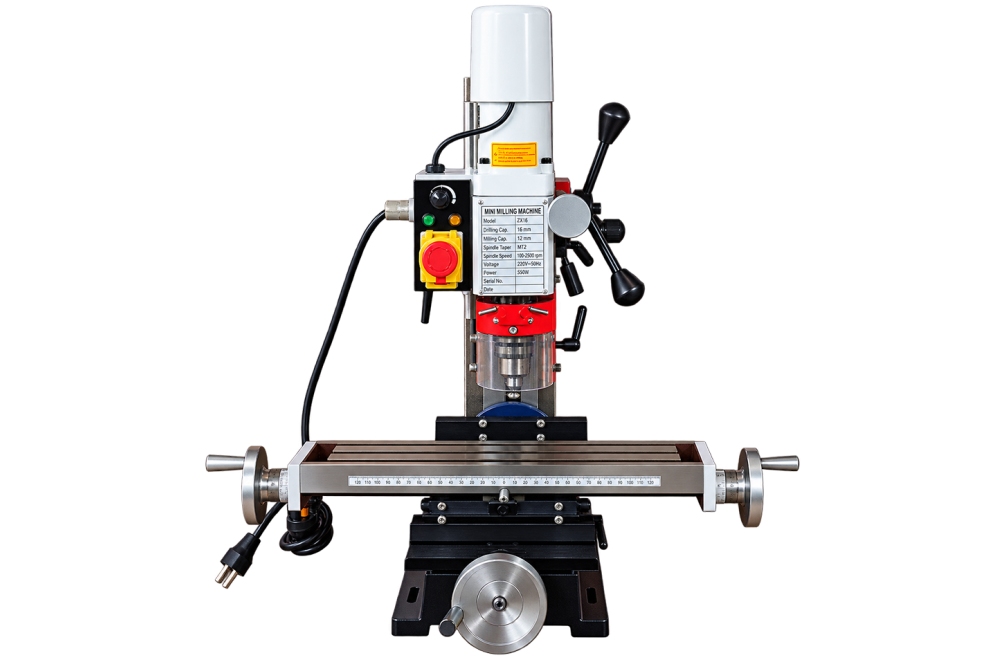

Mini Hobby Milling Machine
Built around machining faces, slots, keyways, and contoured features, the Mini Hobby Milling Machine provides a dedicated working arrangement. Typical users include tool rooms, maintenance departments, and component factories, where controlled table travel and rigid cutter support is valuable. The compact format suits appropriately sized work and restricted floor space.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Mini Hobby Milling Machine
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Mini Hobby Milling Machine offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to tool rooms, maintenance departments, and component factories. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
Its cycle is based on the way it feeds supported work against a rotating multi-edge cutter. The design therefore prioritises controlled table travel and rigid cutter support; actual output still depends on the chosen model, tool, workpiece, and operating method. The compact format suits appropriately sized work and restricted floor space.
Selection Considerations
When comparing versions of the Mini Hobby Milling Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | ZAY7013V |
| Max Drilling capacity | 13mm |
| Max Face mill capacity | 16mm |
| Max end mill capacity | 30mm |
| Max distance from spindle to table | 300mm |
| Working table size | 460x110mm |
| Swivel angle of headstock | + _ 45 degree |
| Spindle taper | MT3/R8 |
| Spindle speed | L50-1100RPM;H:120-2500RPM |
| X-axis travel | 300mm |
| Y-axis travel | 130mm |
| Z-axis travel | 220mm |
| Motor power | 550W/brushless motor |
| N.W./G.W. | 65/85KGS |
| Packing size (LXWXH) | 570x550x850mm |
Applications
Applications
Tool Rooms
Workshops
Educational Institutes
Fasteners Industries
Fabrication Workshops
FAQs
Frequently Asked Questions
What does a Mini Hobby Milling Machine do?
The Mini Hobby Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Mini Hobby Milling Machine complete its working cycle?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Mini Hobby Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Mini Hobby Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Mini Hobby Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Mini Hobby Milling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Mini Hobby Milling Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Mini Hobby Milling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mini Hobby Milling Machine.
When is design arrangement useful on a Mini Hobby Milling Machine?
The compact format suits appropriately sized work and restricted floor space. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
