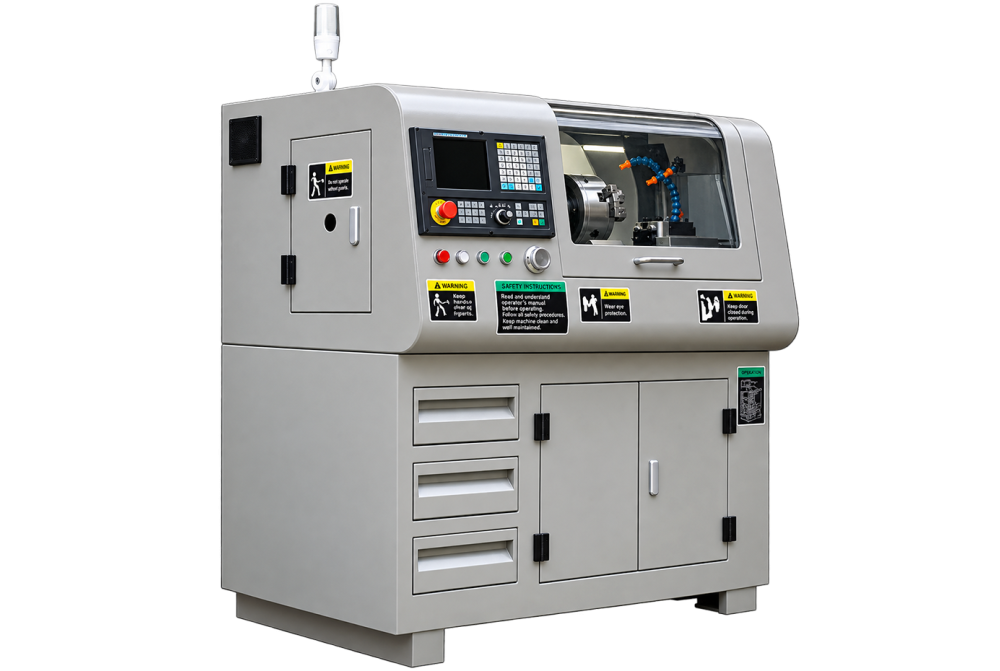

Mini CNC Lathe Machine
The primary role of the Mini CNC Lathe Machine is turning rotational components and producing faces, diameters, bores, or threads. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel. Programmed motion supports repeatable positioning and cycle control. The compact format suits appropriately sized work and restricted floor…
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Mini CNC Lathe Machine
Machine Purpose
Used for turning rotational components and producing faces, diameters, bores, or threads, the Mini CNC Lathe Machine addresses a distinct stage of industrial work. It accommodates shafts, bushes, sleeves, discs, and other title-specific round parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to machine shops, repair workshops, tool rooms, and component plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control. The compact format suits appropriately sized work and restricted floor space.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required Mini CNC Lathe Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | CNC 210 |
| Max.Swing over bed | 210mm |
| Distance between centers | 400mm |
| Spindle bore dia. | 26mm |
| Spindle taper | MT4 |
| Spindle speed | 3000rpm |
| Tool post | 4-position |
| Gangtool bar size | 12mm |
| X-axis travel | 90mm |
| Z-axis travel | 300mm |
| X moving speed | 2000mm/min |
| Z moving speed | 2000mm/min |
| Spindle motor power | 1.2kw |
| Min. setting unit | 0.001mm |
| Tailstock dia. | 22m |
| Tailstock tavel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 1300x800x1500mm |
| N.W | 350kgs |
Videos
Product Videos
FAQs
Frequently Asked Questions
Which operation is the Mini CNC Lathe Machine designed to perform?
The Mini CNC Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Mini CNC Lathe Machine work?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Mini CNC Lathe Machine?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Mini CNC Lathe Machine?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Mini CNC Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Mini CNC Lathe Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Mini CNC Lathe Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Mini CNC Lathe Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mini CNC Lathe Machine.
What is the benefit of CNC control on this Mini CNC Lathe Machine?
Programmed motion supports repeatable positioning and cycle control. The compact format suits appropriately sized work and restricted floor space. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
