Lathe Machines

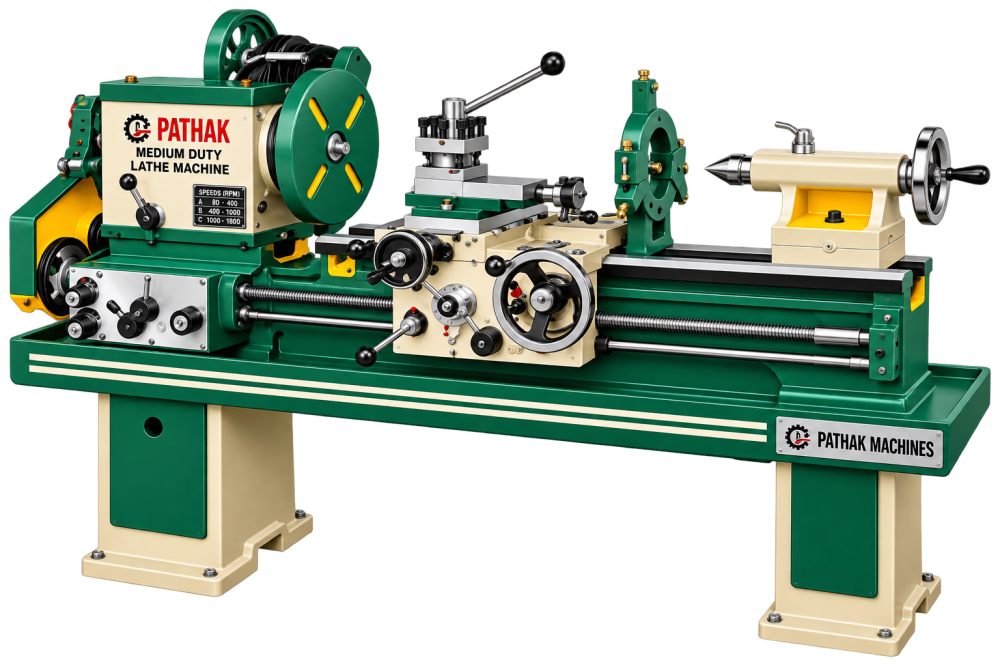

Medium Duty Lathe Machine
For work involving shafts, bushes, sleeves, discs, and other title-specific round parts, the Medium Duty Lathe Machine offers a process-specific solution. It rotates a securely held workpiece while a guided tool removes material, with rigid workholding with controlled tool travel.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Medium Duty Lathe Machine
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the Medium Duty Lathe Machine offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Likely users are found in machine shops, repair workshops, tool rooms, and component plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it rotates a securely held workpiece while a guided tool removes material. The practical focus is rigid workholding with controlled tool travel. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Medium Duty Lathe Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | HML-4 | HML-6 | ||
|---|---|---|---|---|
| SPECIFICATION | 4’.1/2”(1370 MM) | 6’.00”(1825 MM) | ||
| INCH | MM | INCH | MM | |
| BED WIDTH | 11” | 279 | 11” | 279 |
| HEIGHT OF CENTRE OVER FLAT BED WAYS | 8” | 203” | 8” | 203” |
| MAXIMUM SWING OVER BED | 16” | 405” | 16” | 405” |
| MAXIMUM SWING OVER CROSS LIDE | 9” | 228” | 9” | 228” |
| MAXIMUM SWING IN GAP | 23” | 580” | 23” | 580” |
| ADMIT BETWEEN CENTRE | 25″ | 635″ | 34″ | 860” |
| SPINDLE NOSE | 6TPI | 6TPI | ||
| NUMBER OF SPINDLE SPEED | 6” | 6” | ||
| DIAMETER OF HOLE THROUGH SPINDLE | 21/16” | 52 | 21/16” | 52 |
| INCH RANGE THREADS | 4 TO 60 TPI | 4 TO 60 TPI | ||
| METRIC RANGE THREADS | 0.5 TO 7.5 MM | 0.5 TO 7.5 MM | ||
| LED SREW DIA & PITCH | 1.1/4” | 31.75 | 1.1/4” | 31.75 |
| FEAD SAFT DIA | 7/8″ | 22.22 | 7/8″ | 22.22 |
| TAIL STOCK SPINDLE TAPER BORE | Mt4 | Mt4 | ||
| TAIL STOCK SPINDLE TRAVEL | 5.1/2 | 140 | 5.1/2 | 140 |
| POWER REQUIRED | 2 HP 1440 RPM | 2 HP 1440 RPM | ||
| APPROX WEIGHT | 650 KG | 750 KG | ||
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
Why is a Medium Duty Lathe Machine used in industrial work?
The Medium Duty Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Medium Duty Lathe Machine?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Medium Duty Lathe Machine handle?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Medium Duty Lathe Machine typically installed?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Medium Duty Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Medium Duty Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Medium Duty Lathe Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Medium Duty Lathe Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Medium Duty Lathe Machine.
