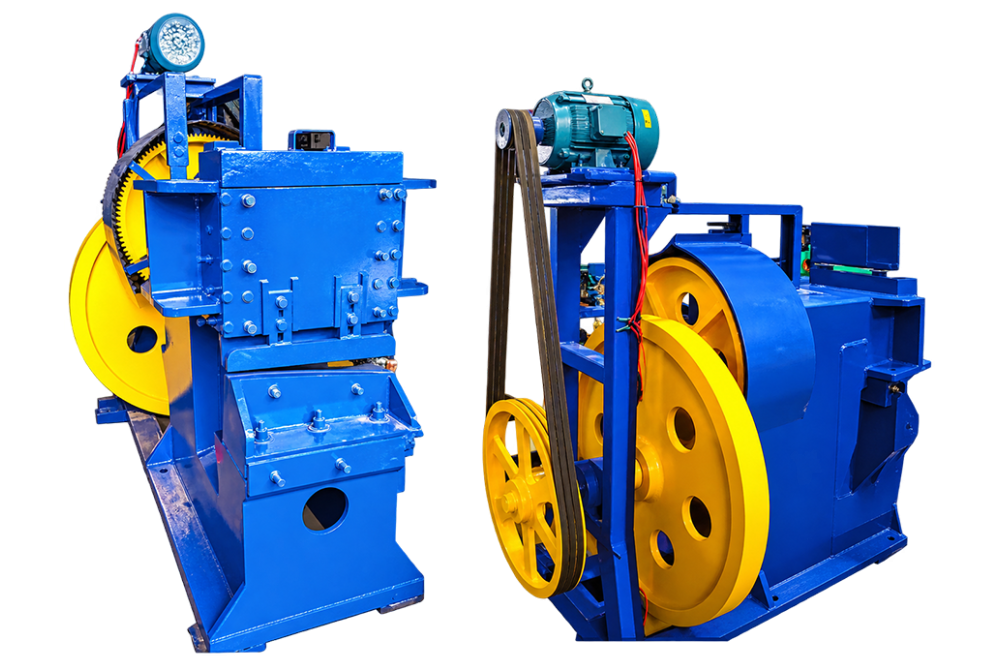

Mechanical Scrap Shearing Machine
The Mechanical Scrap Shearing Machine handles sheet blanks, plate, bars, or title-specific scrap through a layout intended for cutting sheet, plate, sections, or scrap without conventional sawing. It passes a moving blade through material supported at the cutting zone, with guided blade movement and stable material support.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Mechanical Scrap Shearing Machine
Machine Purpose
The Mechanical Scrap Shearing Machine is a purpose-built unit for cutting sheet, plate, sections, or scrap without conventional sawing. Its layout is organised around sheet blanks, plate, bars, or title-specific scrap, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it passes a moving blade through material supported at the cutting zone. The practical focus is guided blade movement and stable material support. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Natural settings include fabrication shops, recycling yards, and metal processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the Mechanical Scrap Shearing Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPMSS 20 | TLPMSS 22 | TLPMSS 25 |
| Blade Size | 20 inch | 22 inch | 25 inch |
| Blade Open Size | 75 mm | 90 mm | 110 mm |
| Crank Shaft | 1 Nos. | 1 Nos. | 1 Nos. |
| Steel Gear | 1 Nos. | 1 Nos. | 1 Nos. |
| Fly Wheel | 1 Nos. | 1 Nos. | 1 Nos. |
| Gun Metal Bushing | Provided | Provided | Provided |
| V-Belt | Provided | Provided | Provided |
| V-Belt | Provided | Provided | Provided |
| Pulley | Provided | Provided | Provided |
| Elector Starter | Provided | Provided | Provided |
| Motor | 75 H.P.,1440 RPM Make NBE | 75 H.P.,1440 RPM Make NBE | 75 H.P.,1440 RPM Make NBE |
| Overall Dimension | 84 (L) x 36 (W) x 140 (H) in inch | 84 (L) x 39 (W) x 143 (H) in inch | 86 (L) x 42 (W) x 150 (H) in inch |
| Body Plate | 16 mm,20 mm,30 mm Fabricated Body | 16 mm,20 mm,30 mm Fabricated Body | 16 mm,20 mm,30 mm Fabricated Body |
| Weight | 2100 kg (approx) | 2300 kg (approx) | 2600 kg (approx) |
Applications
Applications
Mechanical Scrap Shearing Machine Application Image 1
Mechanical Scrap Shearing Machine Application Image 2
Mechanical Scrap Shearing Machine Application Image 3
Mechanical Scrap Shearing Machine Application Image 4
FAQs
Frequently Asked Questions
Why is a Mechanical Scrap Shearing Machine used in industrial work?
The Mechanical Scrap Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Mechanical Scrap Shearing Machine?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Mechanical Scrap Shearing Machine handle?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Mechanical Scrap Shearing Machine typically installed?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Mechanical Scrap Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Mechanical Scrap Shearing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Mechanical Scrap Shearing Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Mechanical Scrap Shearing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mechanical Scrap Shearing Machine.
