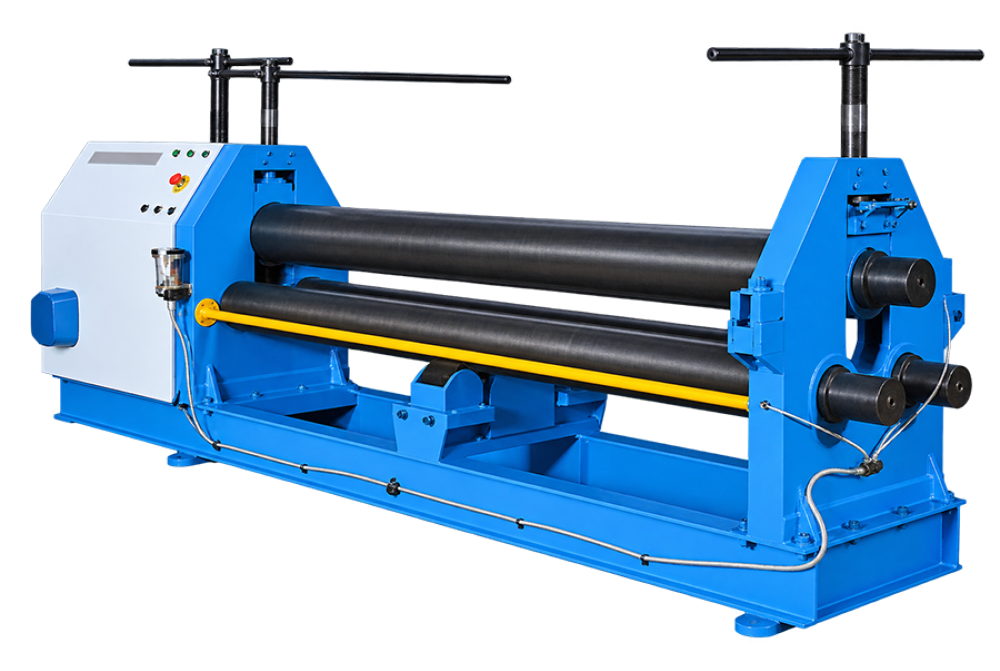

Mechanical Plate Rolling Machine
Sheet Metal Machines

Mechanical Plate Rolling Machine

Built around performing the specialised operation identified by its title, the Mechanical Plate Rolling Machine provides a dedicated working arrangement. The operating method supports production workshops, maintenance departments, and engineering facilities and centres on a task-focused layout built around its primary operation.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

Mechanical Plate Rolling Machine

Machine Purpose

The Mechanical Plate Rolling Machine is a purpose-built unit for performing the specialised operation identified by its title. Its layout is organised around components and materials suitable for the named process, making it relevant when this operation must be completed in a controlled sequence.

How It Works

In operation, it controls the working tool and supports the job through its cycle. The practical focus is a task-focused layout built around its primary operation. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.

Industrial Applications

Natural settings include production workshops, maintenance departments, and engineering facilities. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.

Selection Considerations

When comparing versions of the Mechanical Plate Rolling Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Model Length Max Thickness (MS.) Max Thickness (SS.) Top Roll Diameter Bottom Roll Diameter Power H.P.
MPBD-0615 1550 mm 6 mm 4 mm 120 mm 100 mm 5
MPBD-1015 1550 mm 10 mm 6 mm 160 mm 130 mm 5
MPBD-1215 1550 mm 12 mm 8 mm 180 mm 150 mm 7.5
MPBD-1615 1550 mm 16 mm 12 mm 200 mm 160 mm 10
MPBD-2015 1550 mm 20 mm 14 mm 220 mm 180 mm 12.5
MPBD-2515 1550 mm 25 mm 18 mm 240 mm 200 mm 15
MPBD-3015 1550 mm 30 mm 24 mm 260 mm 225 mm 15
MPBD-0620 2100 mm 6 mm 4 mm 140 mm 115 mm 5
MPBD-1020 2100 mm 10 mm 6 mm 180 mm 150 mm 7.5
MPBD-1220 2100 mm 12 mm 8 mm 200 mm 160 mm 10
MPBD-1620 2100 mm 16 mm 12 mm 220 mm 180 mm 15
MPBD-2020 2100 mm 20 mm 15 mm 240 mm 200 mm 20
MPBD-2520 2100 mm 25 mm 18 mm 260 mm 210 mm 20
MPBD-3020 2100 mm 30 mm 22 mm 300 mm 240 mm 25
MPBD-4020 2100 mm 40 mm 30 mm 340 mm 280 mm 30
MPBD-5020 2100 mm 50 mm 36 mm 380 mm 310 mm 40
MPBD-0625 2600 mm 6 mm 4 mm 170 mm 140 mm 7.5
MPBD-1025 2600 mm 10 mm 4 mm 200 mm 160 mm 10
MPBD-1225 2600 mm 12 mm 8 mm 220 mm 180 mm 10
MPBD-1625 2600 mm 16 mm 12 mm 240 mm 200 mm 15
MPBD-2025 2600 mm 20 mm 15 mm 280 mm 230 mm 20
MPBD-2525 2600 mm 25 mm 18 mm 300 mm 240 mm 25
MPBD-3025 2600 mm 30 mm 22 mm 320 mm 260 mm 30
MPBD-3525 2600 mm 35 mm 26 mm 340 mm 270 mm 30
MPBD-4025 2600 mm 40 mm 30 mm 380 mm 310 mm 30
MPBD-4525 2600 mm 45 mm 35 mm 400 mm 330 mm 40
MPBD-5025 2600 mm 50 mm 38 mm 420 mm 350 mm 40
MPBD-6025 2600 mm 60 mm 45 mm 450 mm 380 mm 50
MPBD-0830 3100 mm 8 mm 5 mm 200 mm 160 mm 50
MPBD-1030 3100 mm 10 mm 6 mm 220 mm 180 mm 10
MPBD-1230 3100 mm 12 mm 8 mm 240 mm 200 mm 15
MPBD-1630 3100 mm 16 mm 12 mm 260 mm 210 mm 15
MPBD-2030 3100 mm 20 mm 15 mm 300 mm 240 mm 20
MPBD-2530 3100 mm 25 mm 18 mm 320 mm 260 mm 25
MPBD-3030 3100 mm 30 mm 22 mm 350 mm 280 mm 30
MPBD-3530 3100 mm 35 mm 26 mm 380 mm 310 mm 40
MPBD-4030 3100 mm 40 mm 30 mm 400 mm 320 mm 40
MPBD-4530 3100 mm 45 mm 35 mm 420 mm 340 mm 40
MPBD-5030 3100 mm 50 mm 38 mm 450 mm 380 mm 50
MPBD-6030 3100 mm 60 mm 45 mm 480 mm 400 mm 50
FAQs

Frequently Asked Questions

Why is a Mechanical Plate Rolling Machine used in industrial work?
The Mechanical Plate Rolling Machine is intended for performing the specialised operation identified by its title. It is arranged around components and materials suitable for the named process, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Mechanical Plate Rolling Machine?
The machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Mechanical Plate Rolling Machine handle?
It is primarily associated with components and materials suitable for the named process. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Mechanical Plate Rolling Machine typically installed?
Typical users include production workshops, maintenance departments, and engineering facilities. In these settings, the Mechanical Plate Rolling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Mechanical Plate Rolling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Mechanical Plate Rolling Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Mechanical Plate Rolling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Mechanical Plate Rolling Machine.
