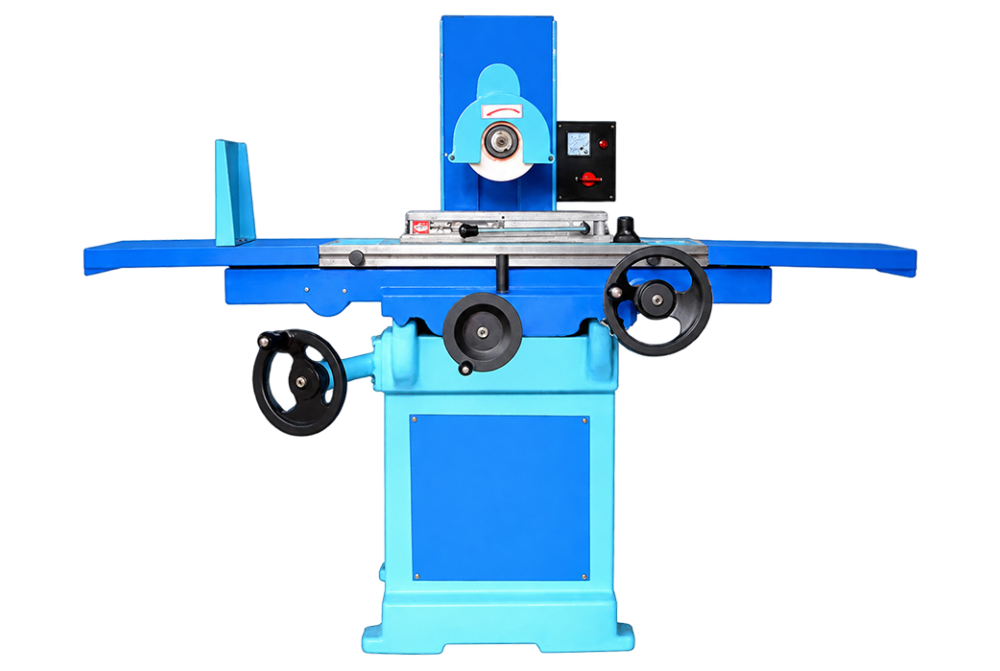

Manual Surface Grinder Machine
The primary role of the Manual Surface Grinder Machine is producing flat, smooth component surfaces. Typical users include tool rooms, die shops, repair facilities, and precision plants, where stable table movement and controlled wheel engagement is valuable. Manual control keeps setup and movement under direct operator supervision.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Manual Surface Grinder Machine
Machine Purpose
The Manual Surface Grinder Machine is a purpose-built unit for producing flat, smooth component surfaces. Its layout is organised around plates, dies, tooling, and machine parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports repeat work without replacing the need for trained operation. Manual control keeps setup and movement under direct operator supervision.
Industrial Applications
The machine is applicable to tool rooms, die shops, repair facilities, and precision plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within grinding machines can differ in arrangement and capability. The required Manual Surface Grinder Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Models | PPSC-20 | PPSC-24 | PPSC-30 |
| Working Surface of Table | 525X205 MM | 625X200 MM | 625x300 MM |
| Grinding Capacity | 500X200 MM | 600X200 MM | 600X300 MM |
| Longitudinal Traverse | 525 MM | 610 MM | 630 MM |
| Cross Traverse | 215 MM | 215 MM | 320 MM |
| Vertical Traverse | 250 MM | 250 MM | 330 MM |
| Grinding Wheel Dia and Width | 200X12 MM | 200X12 MM | 200X12 MM |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Cross Feed Graduation | .05 MM | .05 MM | .05 MM |
| Vertical Feed Graduation | .02 MM | .02 MM | .02 MM |
| Floor Space Requires | 1150X900 MM | 1250X1200 MM | 1850X1350 MM |
| Weight Gross | 1250X kgs. Approx | 1350 kgs. Approx | 1750 kgs. Approx |
|
ELECTRICALS
|
-
|
-
|
-
|
| Electrical Motors For Grinding Wheel | 1.0 H.P 2800 | 1.0 H.P 2800 |
-
|
| Elecrtrical Motor For Auto Feed Models Only |
-
|
1.0 H.P 1440 |
-
|
FAQs
Frequently Asked Questions
What does a Manual Surface Grinder Machine do?
The Manual Surface Grinder Machine is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Manual Surface Grinder Machine complete its working cycle?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Manual Surface Grinder Machine?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Manual Surface Grinder Machine?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Manual Surface Grinder Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Manual Surface Grinder Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Manual Surface Grinder Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Manual Surface Grinder Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Manual Surface Grinder Machine.
What is the benefit of manual operation on this Manual Surface Grinder Machine?
Manual control keeps setup and movement under direct operator supervision. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
