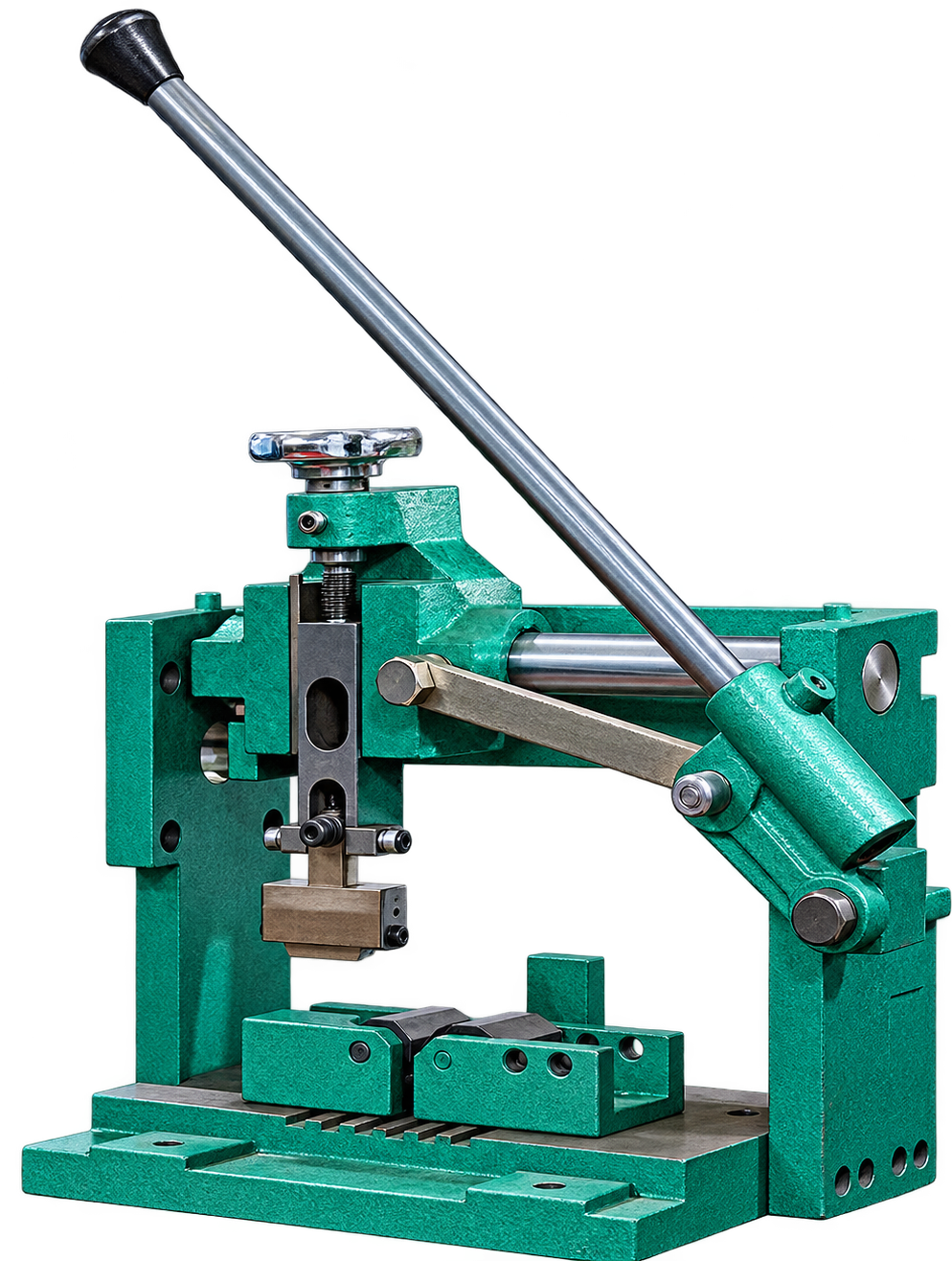

Manual Roll Making Machine
A compact hand-operated roll making machine for controlled workshop production using interchangeable holders. Model TLPRM-1 supports the listed holder codes for compatible T-series tooling and components.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Manual Roll Making Machine is a compact, hand-operated workshop unit designed for controlled roll-making work with compatible holders and tooling. Its long operating lever provides mechanical advantage, while the rigid frame and adjustable work area support repeatable setup.
Model TLPRM-1 uses interchangeable holder arrangements selected according to the required T-series component. The supplied compatibility chart covers holder codes 8 R 20, 8 R 40, 8 R 60, 125 R 1000, 125 R 2000 and 250 R 1000.
Manual operation makes the machine suitable for repair facilities, hose-related workshops and low- to medium-volume production where simple setup, operator control and independence from powered actuation are useful. The bench-mounting base helps provide stability during operation.
The correct holder, tooling and adjustment must be selected for each component before work begins. Finished dimensions and suitability depend on the material, component geometry, holder condition, machine setup and operator technique; sample approval is recommended for a new application.
Specifications
Technical Specifications
| Holder Code | Compatible For (IST) |
|---|---|
| 8 R 20 | T-010 / T-020 / T-030 / T-040 |
| 8 R 40 | T-010 / T-020 / T-030 / T-040 / T-050 / T-060 |
| 8 R 60 | T-010 / T-020 / T-030 / T-040 / T-050 / T-060 |
| 125 R 1000 | T-062 |
| 125 R 2000 | T-062 |
| 250 R 1000 | T-093 / T-125 |
Model: TLPRM-1. Holder and component references are reproduced from the supplied compatibility chart. Confirm the required holder, tooling and component suitability in the final technical quotation.
Accessories
Standard Accessories / Machine Parts

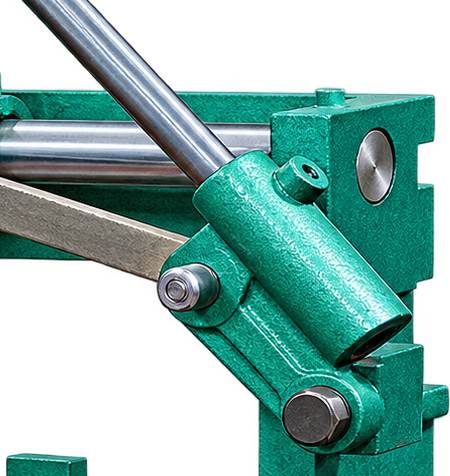

Manual Roll Making Machine Img 2

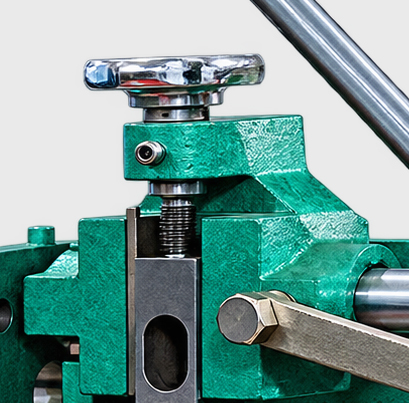

Manual Roll Making Machine Img 2

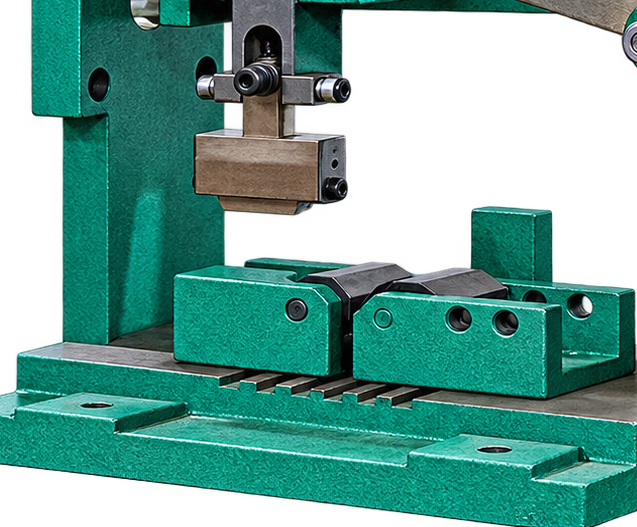

Manual Roll Making Machine Img 3
Applications
Applications
Roll Making Machine Application / Uses Image 1
Roll Making Machine Application / Uses Image 2
FAQs
Frequently Asked Questions
What is the Manual Roll Making Machine used for?
It is a hand-operated workshop machine for controlled roll-making work using the holder and tooling selected for a compatible component.
What is the model number?
The model shown in the supplied technical specification is TLPRM-1.
Does the TLPRM-1 require electrical or hydraulic power?
The supplied product is manually operated through a long hand lever. Confirm any installation or auxiliary requirements with the final machine configuration.
Which holder codes are listed for the machine?
The supplied chart lists 8 R 20, 8 R 40, 8 R 60, 125 R 1000, 125 R 2000 and 250 R 1000 holders.
Which holders are compatible with T-062?
The compatibility chart lists holder codes 125 R 1000 and 125 R 2000 for T-062.
Which holder is listed for T-093 and T-125?
Holder code 250 R 1000 is listed as compatible with T-093 and T-125.
Can holders be changed for different components?
The machine uses different holder selections for the listed component references. Always confirm compatibility and follow the correct fitting and adjustment procedure before operation.
What details should be provided with an enquiry?
Provide the component reference, material, required finished profile, production quantity, current holder or tooling details, sample or drawing and any dimensional tolerance requirements.
