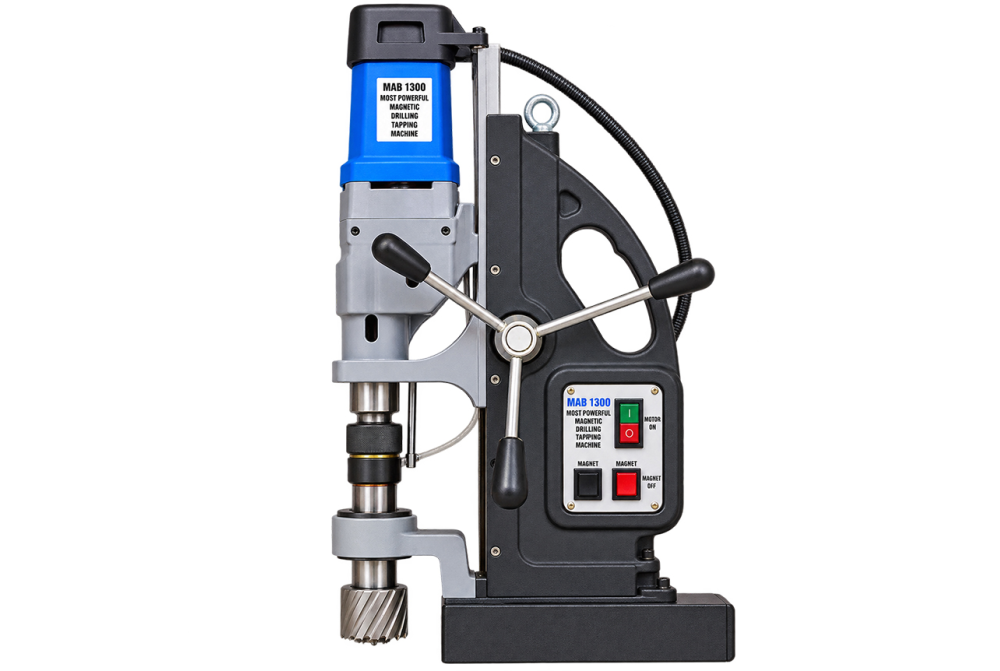

Most Powerful Magnetic Drilling Tapping Machine MAB 1300
The Most Powerful Magnetic Drilling Tapping Machine MAB 1300 is designed for drilling or tapping installed steel structures. Typical users include site fabrication, bridge work, maintenance, and shipyards, where portable mounting where work cannot be moved to a fixed drill is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Most Powerful Magnetic Drilling Tapping Machine MAB 1300
Machine Purpose
The Most Powerful Magnetic Drilling Tapping Machine MAB 1300 provides a dedicated method of drilling or tapping installed steel structures. Rather than acting as unrelated general equipment, it brings the working elements together around plates, beams, structures, and large fabricated assemblies.
How It Works
A typical cycle begins with locating the job correctly, after which the machine anchors magnetically to ferrous work while its spindle feeds the cutter. Its portable mounting where work cannot be moved to a fixed drill supports repeat work without replacing the need for trained operation.
Industrial Applications
Natural settings include site fabrication, bridge work, maintenance, and shipyards. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the Most Powerful Magnetic Drilling Tapping Machine MAB 1300, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| EAN | TPL-1300 |
|---|---|
| Core Drilling | 130 mm |
| Twist Drilling | 45 mm |
| Tapping | M42 |
| Countersink | 80 mm |
| Reaming | 50 mm |
| Motor Output | 2300 Watts |
| Stroke | 310 mm / 85 mm |
| Magnet Size | 120 x 360 x 65 mm |
| Magnet Power | 29250 N |
| Weight | 51 Kg. |
| Morse Taper | MT4 |
| Speed Gears | 4 |
| Speed 1 | 30 – 80 min-1 |
| Speed 2 | 50 – 120 min-1 |
| Speed 3 | 130 – 350 min-1 |
| Speed 4 | 210 – 550 min-1 |
| Advantages | Carbon brush indicator, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Power assist servo feed, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 Carry case on wheels, 1 drill drift & 1 taper drift, 1 offset screwdriver, 1 Operating manual, 4 ejector pins |
Applications
Applications
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
FAQs
Frequently Asked Questions
What does a Most Powerful Magnetic Drilling Tapping Machine MAB 1300 do?
The Most Powerful Magnetic Drilling Tapping Machine MAB 1300 is intended for drilling or tapping installed steel structures. It is arranged around plates, beams, structures, and large fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Most Powerful Magnetic Drilling Tapping Machine MAB 1300 complete its working cycle?
The machine anchors magnetically to ferrous work while its spindle feeds the cutter. Its portable mounting where work cannot be moved to a fixed drill supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Most Powerful Magnetic Drilling Tapping Machine MAB 1300?
It is primarily associated with plates, beams, structures, and large fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Most Powerful Magnetic Drilling Tapping Machine MAB 1300?
Typical users include site fabrication, bridge work, maintenance, and shipyards. In these settings, the Most Powerful Magnetic Drilling Tapping Machine MAB 1300 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Most Powerful Magnetic Drilling Tapping Machine MAB 1300?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Most Powerful Magnetic Drilling Tapping Machine MAB 1300 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Most Powerful Magnetic Drilling Tapping Machine MAB 1300?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Most Powerful Magnetic Drilling Tapping Machine MAB 1300.
