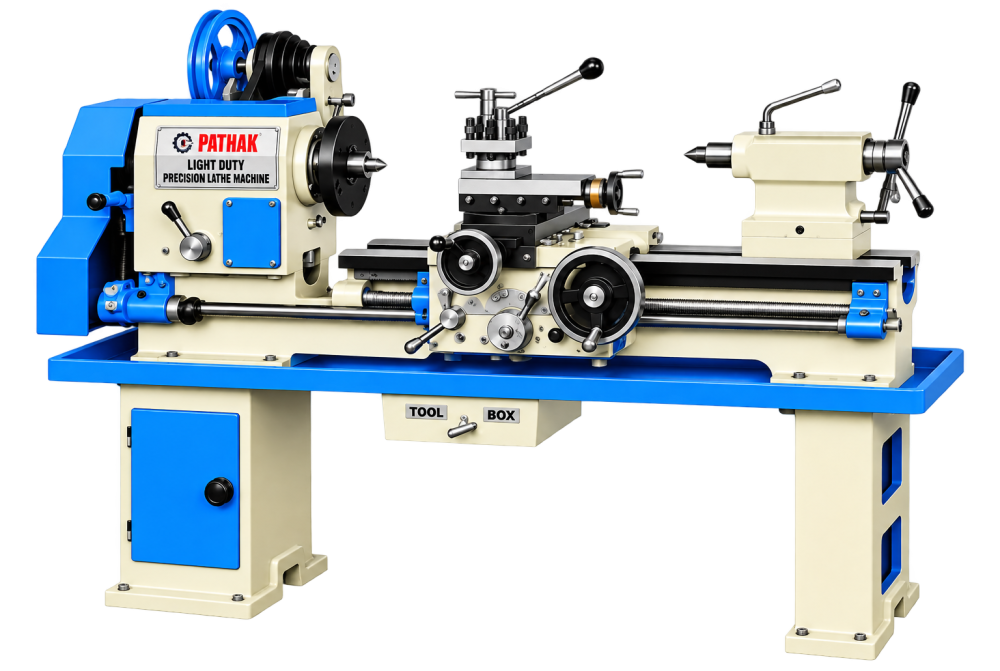

Light Duty Precision Lathe Machine
Built around turning rotational components and producing faces, diameters, bores, or threads, the Light Duty Precision Lathe Machine provides a dedicated working arrangement. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Light Duty Precision Lathe Machine
Machine Purpose
The Light Duty Precision Lathe Machine is a purpose-built unit for turning rotational components and producing faces, diameters, bores, or threads. Its layout is organised around shafts, bushes, sleeves, discs, and other title-specific round parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it rotates a securely held workpiece while a guided tool removes material. The design therefore prioritises rigid workholding with controlled tool travel; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in machine shops, repair workshops, tool rooms, and component plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
When comparing versions of the Light Duty Precision Lathe Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PLD-4 |
| Bed length (With head stock ) | 1370 mm |
| Bed Widht | 235 mm |
| Gap Length | 120 mm |
|
CAPACITIES
|
|
| Height Of Center | 165 mm |
| Swing Over Bed | 320 mm |
| Swing Over Gap | 510 mm |
| Swing Over Cross Slide | 180 mm |
| Admit Between Center | 660 mm |
| Movement of Cross Slide | 215 mm |
| Movement of Compound Slide | 110 mm |
|
HEAD STOCK
|
|
| Taper Bore In Spindle Sleeve | MT-3 |
| Spindle Thread | 6 Tpl |
| Spindle Bore | 41 mm |
| No.of Spindle Speed | 8 |
|
TAIL STOCK
|
|
| Spindle Dia | 38 mm |
| Taper in Spindle | MT-3 |
| Spindle Movment | 125 mm |
|
THREADS
|
|
| Metric Pitch | 1 to 6 mm |
| Pinch Pitch | 2 to 24 Tpl |
| Lead Screw | 4 TPL & 6 Tpl |
|
ELECTRICAL
|
|
| Motor Power | 1 H.P/O.75kw |
|
DRIVE
|
| V Belt |
|
GENERAL
|
|
| Weight (Approx) | 460 KG |
| Floor Space (Approx) |
L-1600 mm |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Videos
Product Videos
Applications
Applications
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Tool Rooms
Fasteners Industries
Fabrication Workshops
Heavy Engineering
Precision turning of small parts
DIY metalworking and model engineering
Aerospace Industry
Appliance Manufacturing
Automotive Industry
Educational Institutes
General Sheet Metal Cutting
Metal Fabrication Shops
Shaft turning and thread cutting
Sugar Mills
Textile Industries
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
What is a Light Duty Precision Lathe Machine used for?
The Light Duty Precision Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Light Duty Precision Lathe Machine?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Light Duty Precision Lathe Machine?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Light Duty Precision Lathe Machine?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Light Duty Precision Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Light Duty Precision Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Light Duty Precision Lathe Machine be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Light Duty Precision Lathe Machine price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Light Duty Precision Lathe Machine.
