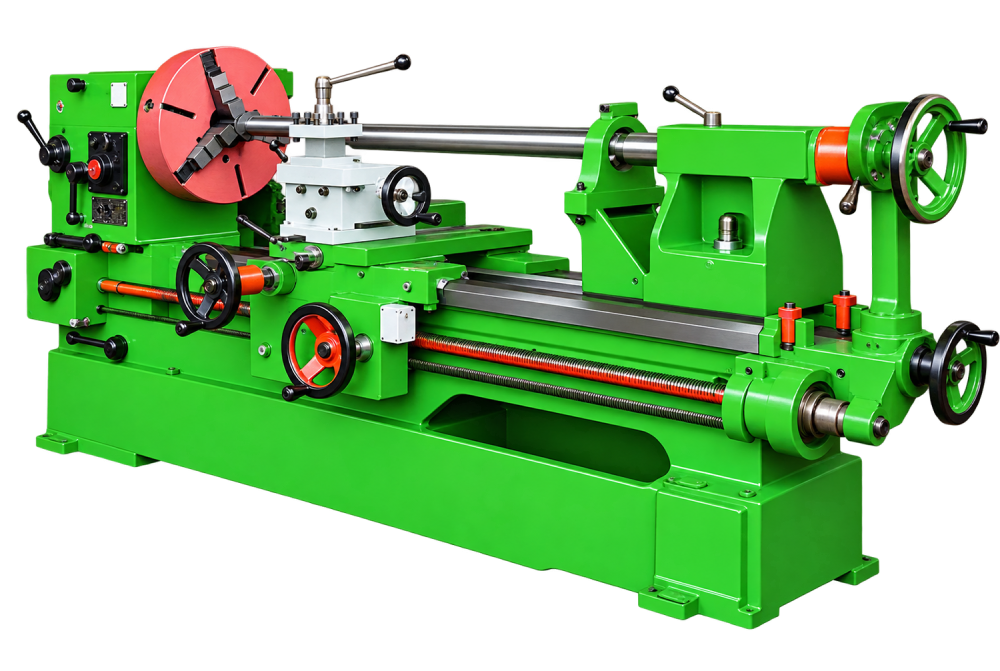

Lathe Machine With Chasing Attachment
The primary role of the Lathe Machine With Chasing Attachment is turning rotational components and producing faces, diameters, bores, or threads. Typical users include machine shops, repair workshops, tool rooms, and component plants, where rigid workholding with controlled tool travel is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Lathe Machine With Chasing Attachment
Machine Purpose
The Lathe Machine With Chasing Attachment is a purpose-built unit for turning rotational components and producing faces, diameters, bores, or threads. Its layout is organised around shafts, bushes, sleeves, discs, and other title-specific round parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it rotates a securely held workpiece while a guided tool removes material. The design therefore prioritises rigid workholding with controlled tool travel; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
The machine is applicable to machine shops, repair workshops, tool rooms, and component plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within lathe machines can differ in arrangement and capability. The required Lathe Machine With Chasing Attachment should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Parameter | Specification |
| Lathe Bed Type | Heavy-duty, flat bed |
| Center Height | 150 mm to 250 mm |
| Distance Between Centers | 500 mm to 1500 mm |
| Spindle Bore | 25 mm to 52 mm |
| Spindle Speed Range | 40 – 1800 RPM (variable or stepped) |
| Main Motor Power | 1.5 HP to 3 HP |
| Chasing Slide Movement | Manual with micrometer adjustment |
| Thread Types (via Chaser Tool) | Metric, BSW, BA, ACME, Square, Custom |
| Chaser Tool Holding Capacity | Up to 25 mm wide tools |
| Guide Plate (Optional) | Interchangeable for profile replication |
| Tailstock Quill Travel | 100 mm to 150 mm |
| Cross Slide Travel | 150 mm to 250 mm |
| Compound Slide Travel | 100 mm to 150 mm |
| Thread Pitch Range | 0.5 mm to 6 mm (depends on chaser tool) |
| Machine Weight | 600 kg to 1200 kg |
| Power Supply | 415V / 50Hz / 3 Phase |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
What is a Lathe Machine With Chasing Attachment used for?
The Lathe Machine With Chasing Attachment is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Lathe Machine With Chasing Attachment?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Lathe Machine With Chasing Attachment?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Lathe Machine With Chasing Attachment?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Lathe Machine With Chasing Attachment may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Lathe Machine With Chasing Attachment?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Lathe Machine With Chasing Attachment be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Lathe Machine With Chasing Attachment price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Lathe Machine With Chasing Attachment.
