Lathe Machines

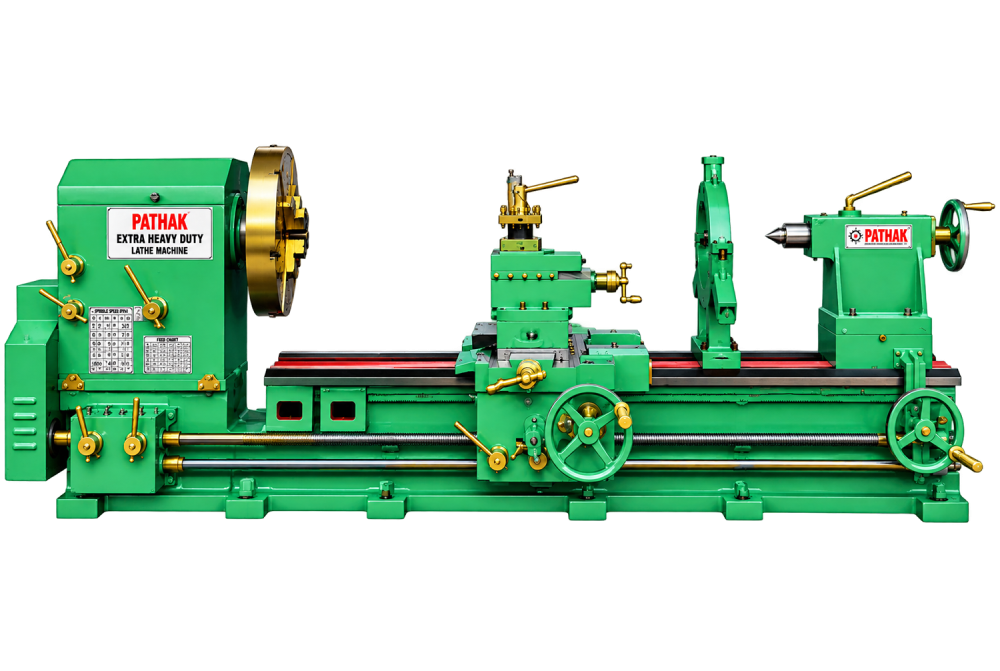

Lathe Machine 20 FT 32X30
The Lathe Machine 20 FT 32X30 handles shafts, bushes, sleeves, discs, and other title-specific round parts through a layout intended for turning rotational components and producing faces, diameters, bores, or threads. Its rigid workholding with controlled tool travel suits machine shops, repair workshops, tool rooms, and component plants.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Lathe Machine 20 FT 32X30
Machine Purpose
Used for turning rotational components and producing faces, diameters, bores, or threads, the Lathe Machine 20 FT 32X30 addresses a distinct stage of industrial work. It accommodates shafts, bushes, sleeves, discs, and other title-specific round parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to machine shops, repair workshops, tool rooms, and component plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it rotates a securely held workpiece while a guided tool removes material. The practical focus is rigid workholding with controlled tool travel. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Lathe Machine 20 FT 32X30.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PRTL-12 | PRTL-16 | PRTL-20 | PRTL-24 |
| Length of Bed (With Head Stock) | 12' | 16' | 20' | 24 |
| Width of Bed | 26" | 26" | 28" | 28 |
| Height of Center | 24" | 24" | 25" | 26 |
| Swing over Bed dia. | 47" | 47" | 51 | 51 |
| Swing in Gap dia. | 72" | 72" | 76 | 76 |
| Width of gap intent of face plate | 14" | 14" | 15 | 16 |
| Swing over saddle center | 37" | 37" | 41 | 41 |
| Admit between center | 70" | 70" | 155 | 213 |
| Spindle hollow | 41/8" | 41" | 41/8 | 41/8 |
| No. of Spindle speed | 6 | 6 | 6 | 6 |
| Size of Morse taper | MTS | MTS | MTS | MTS |
| Lead screw pitch | 2PTI | 2PTI | 2PTI | 2PTI |
| Power required in H.P. | 7.5 | 10 | 15 | 20 |
| R.P.M motor approx. | 960 | 960 | 960 | 960 |
| Approx. weight in Kgs. | 5000 | 6000 | 7200 | 8000 |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder

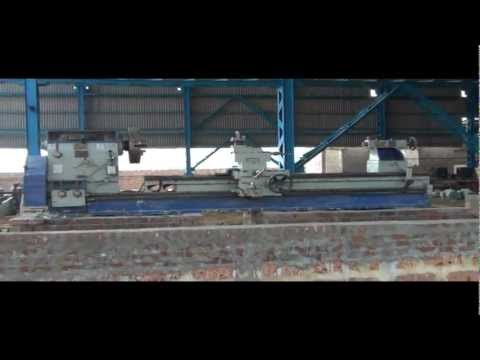

Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Textile Industries
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Precision turning of small parts
Shaft turning and thread cutting
Fasteners Industries
Sugar Mills
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
What does a Lathe Machine 20 FT 32X30 do?
The Lathe Machine 20 FT 32X30 is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Lathe Machine 20 FT 32X30 complete its working cycle?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Lathe Machine 20 FT 32X30?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Lathe Machine 20 FT 32X30?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Lathe Machine 20 FT 32X30 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Lathe Machine 20 FT 32X30?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Lathe Machine 20 FT 32X30 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Lathe Machine 20 FT 32X30?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Lathe Machine 20 FT 32X30.
