Construction Machinery

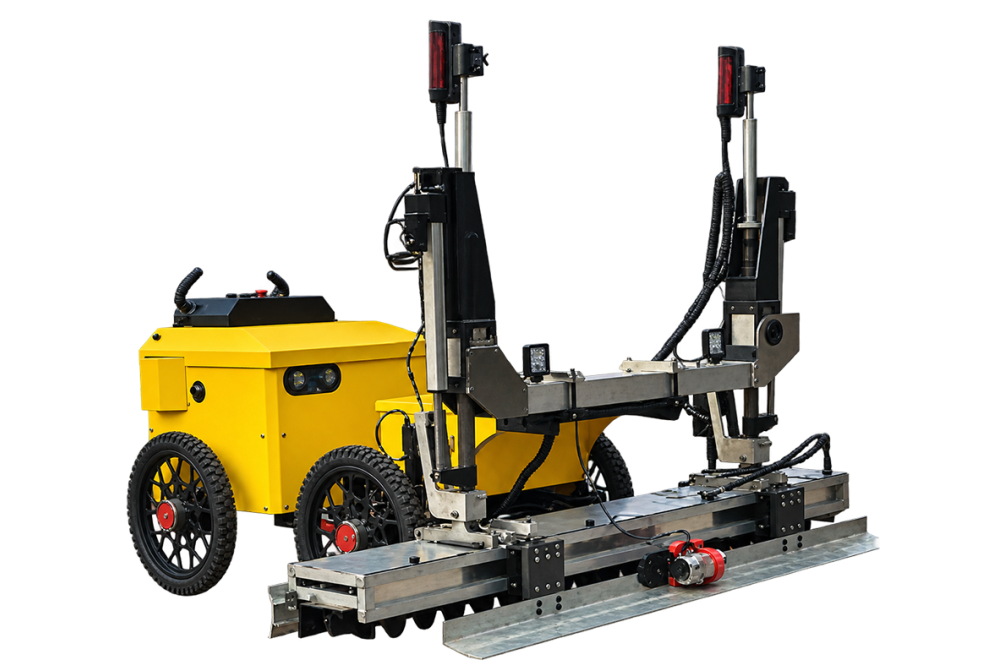

Laser Screed Machine
The Laser Screed Machine is designed for levelling and consolidating fresh concrete. It moves a vibrating beam or controlled head across the placed material, with combined levelling and vibration.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Laser Screed Machine
Machine Purpose
The Laser Screed Machine is a purpose-built unit for levelling and consolidating fresh concrete. Its layout is organised around slabs, floors, pavements, and deck surfaces, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves a vibrating beam or controlled head across the placed material. Its combined levelling and vibration supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to industrial flooring, roads, warehouses, and large pours. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within construction machinery can differ in arrangement and capability. The required Laser Screed Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| NAME | CONCRETE LASER SCREED | |
|---|---|---|
| PRODUCT | WS-940 | |
| ENGINE TYPE | HONDA CX690 | |
| CHARACTERISTIC | GASOLINE, AIR CCRDLED 4 STROKE,2 | |
| ENGINE | POWER | 18.4KW/2SHP |
| FUEL TANK VOLUME | ||
| LUBRICATION OIL | 1.9L | |
| SCREED WIDTH | ||
| PAVING MODE | HVDQAULIC SCREW CONVEYOR PAVING | |
| PAVING THICKNESS | 5-3SCM | |
| LEVELING SYSTEM | VIBRATING SYSTEM | VIBRATION MOTOR |
| EXCITATION FORCE | 2000N | |
| VIBRATION | 50HZ | |
| CONFIGURATION | LASER EMITTER & RECEIVER, TRIPOD | |
| BRAND OF LASER SYSTEM | TRIMBLE (STANDARD) LEICA (OPTIONAL) | |
| LASER SYSTEM | LASER CONTROL | MICROCOMPUTER AUTOMATIC LEVELING |
| APPLICABLE SCOPE | FLAT SURFACE, SLOPE. | SLOPE (THREE-DIMENSIONAL) |
| DRIVE TYPE | FULL HYDRAULIC DRIVE, | |
| SOLID PUNCTURE-PROOF AND ANTISKID | ||
| TYRE WIDTH | 9CM & | |
| WS-940 CONFICUQED 2 PAIRS OF T,'QES (9CMX2, 20CMX2) | ||
| DRIVING SYSTEM | WHEEL TRACK | 1230MM |
| WHEEL BASE | ||
| WALKINC SPEED | O-4SKM/H | |
| SPEED CONTROL | STEPLESS SPEED CHANCE. | |
| TURNING | HYDRAULIC ASSISTANCE, STEERING WHEEL | |
| POWER | EXTERNAL MOTOR | |
| CLEANING SYSTEM | THEORETICAL FLOW | 20CBM/H |
| RATED PRESSURE | 7 KGS/SQCM | |
| OUTLINE DIMENSION | MM | |
| SIZE AND WEIGHT | NET WEIGHT | 996 KGS |
FAQs
Frequently Asked Questions
Why is a Laser Screed Machine used in industrial work?
The Laser Screed Machine is intended for levelling and consolidating fresh concrete. It is arranged around slabs, floors, pavements, and deck surfaces, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Laser Screed Machine?
The machine moves a vibrating beam or controlled head across the placed material. Its combined levelling and vibration supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Laser Screed Machine handle?
It is primarily associated with slabs, floors, pavements, and deck surfaces. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Laser Screed Machine typically installed?
Typical users include industrial flooring, roads, warehouses, and large pours. In these settings, the Laser Screed Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Laser Screed Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Laser Screed Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Laser Screed Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Laser Screed Machine.
