Scrap Bailing Machines
Jute Bag Baler 150 Ton
The Jute Bag Baler 150 Ton is designed for reducing loose recyclable material into compact bales. Typical users include scrap yards, recycling plants, and recovery operations, where organised chamber-based compaction is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

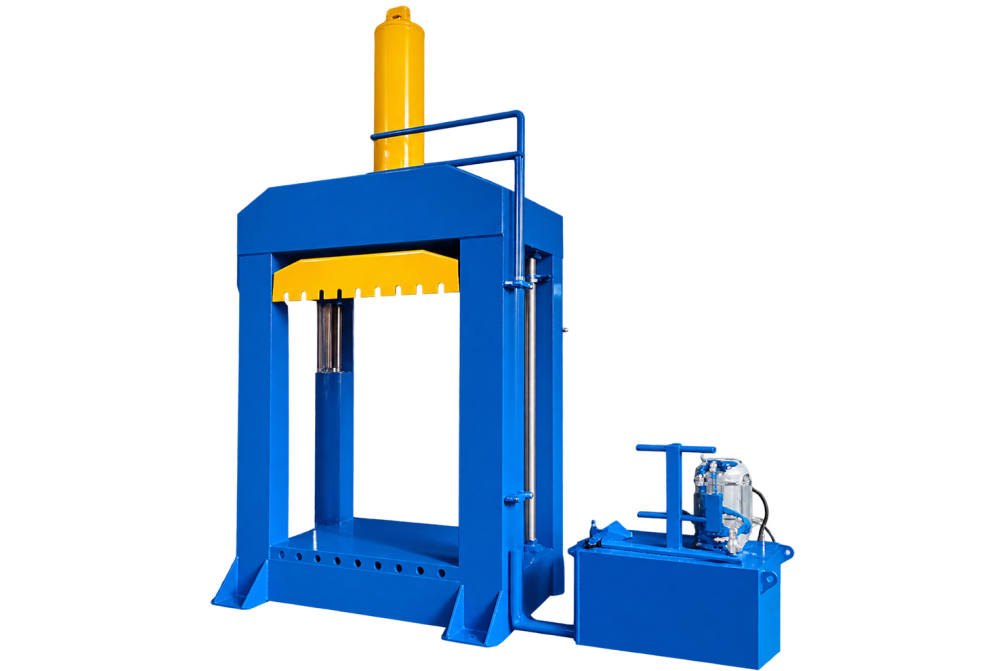

Jute Bag Baler 150 Ton
Machine Purpose
The Jute Bag Baler 150 Ton provides a dedicated method of reducing loose recyclable material into compact bales. Rather than acting as unrelated general equipment, it brings the working elements together around the recyclable material identified by the title.
How It Works
In operation, it compresses loaded feed inside a reinforced chamber. The practical focus is organised chamber-based compaction. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Industrial Applications
Natural settings include scrap yards, recycling plants, and recovery operations. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within scrap bailing machines can differ in arrangement and capability. The required Jute Bag Baler 150 Ton should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Capacity | 150 Ton Pressure Jute Bags Baler Machine |
| Bale Size | 60(L)x40(W) in inch |
| Bale Weight | 400 to 500 kg |
| Chamber Size | 60(L)x40(W)x72(H) in inch |
| No. of Cylinder | 1 nos. |
| No. of Gide | 4 nos. |
| No. of Tie | 9 nos. |
| No. of Pillar | 4 nos. 12 inch I Beam |
| Cylinder Size | 300 (Bore) x 350 (OD) x 180 (RAM) x 1400 (Stroke) mm |
| Oil Tank Capacity | 400 lit. |
| Production Rates | 10 to 12 minutes |
| Hydraulic System | Double Vane Pump System |
| Day Light Gap | 72 inch |
| Operation | Hand levers operate systems |
| Electric Motor | 20 H.P. Motor,3 Phase,1440 RPM,50 Hz |
| Electric Starter | Provided |
| Overall Dimension | 80(L)x60(W)x170(H) in inch |
| Body Plate | 8(L)x60(W)x170(H) in inch |
FAQs
Frequently Asked Questions
Which operation is the Jute Bag Baler 150 Ton designed to perform?
The Jute Bag Baler 150 Ton is intended for reducing loose recyclable material into compact bales. It is arranged around the recyclable material identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Jute Bag Baler 150 Ton work?
The machine compresses loaded feed inside a reinforced chamber. Its organised chamber-based compaction supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Jute Bag Baler 150 Ton?
It is primarily associated with the recyclable material identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Jute Bag Baler 150 Ton?
Typical users include scrap yards, recycling plants, and recovery operations. In these settings, the Jute Bag Baler 150 Ton may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Jute Bag Baler 150 Ton models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Jute Bag Baler 150 Ton require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Jute Bag Baler 150 Ton vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Jute Bag Baler 150 Ton.
