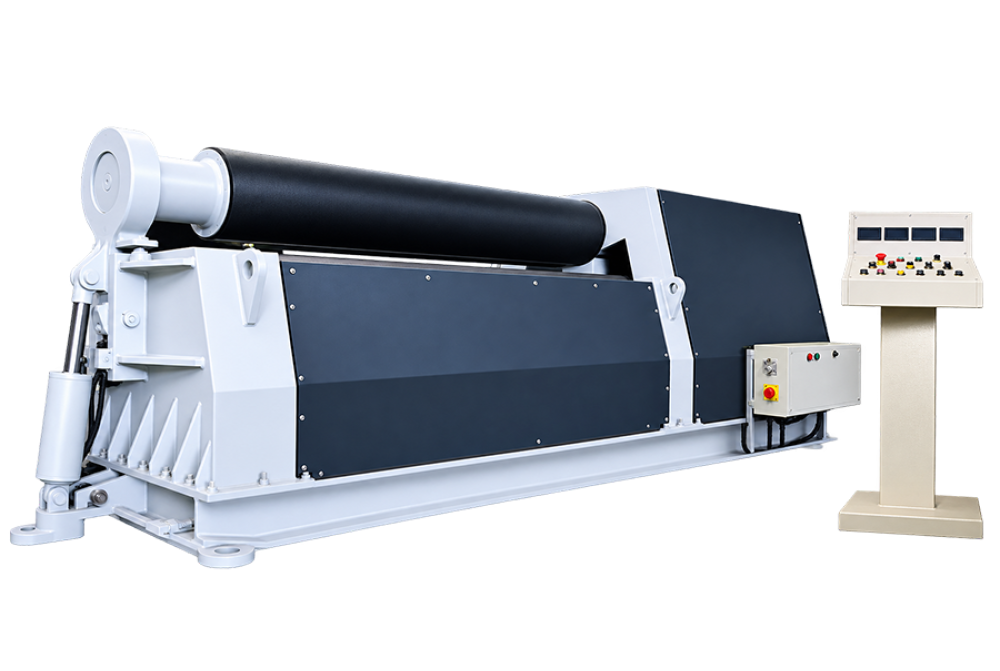

Hydro Mechanical Plate Bending Machine
Sheet Metal Machines

Hydro Mechanical Plate Bending Machine

Built around forming sheet, plate, pipe, bar, or sections into required shapes, the Hydro Mechanical Plate Bending Machine provides a dedicated working arrangement. Its dedicated tooling that supports material during forming suits structural fabrication, sheet-metal shops, and component production.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

Hydro Mechanical Plate Bending Machine

Machine Purpose

The Hydro Mechanical Plate Bending Machine provides a dedicated method of forming sheet, plate, pipe, bar, or sections into required shapes. Rather than acting as unrelated general equipment, it brings the working elements together around the metal stock identified by the machine title.

How It Works

Its cycle is based on the way it draws, presses, or rolls supported material around suitable tooling. The design therefore prioritises dedicated tooling that supports material during forming; actual output still depends on the chosen model, tool, workpiece, and operating method.

Industrial Applications

The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.

Selection Considerations

When comparing versions of the Hydro Mechanical Plate Bending Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Model Working Roll Length Max Thickness (MS.) Max Thickness (SS.) Top Roll Diameter Bottom Roll Diameter Power H.P. Power Pack Motor
MPBD-3HM-0615 1550 mm 6 mm 4 mm 120 mm 100 mm 5 1
MPBD-3HM-1015 1550 mm 10 mm 6 mm 160 mm 130 mm 5 1
MPBD-3HM-1215 1550 mm 12 mm 8 mm 180 mm 150 mm 7.5 2
MPBD-3HM-1615 1550 mm 16 mm 12 mm 200 mm 160 mm 10 3
MPBD-3HM-2015 1550 mm 20 mm 14 mm 220 mm 180 mm 12.5 3
MPBD-3HM-2515 1550 mm 25 mm 18 mm 240 mm 200 mm 15 3
MPBD-3HM-3015 1550 mm 30 mm 24 mm 260 mm 225 mm 15 3
MPBD-3HM-0620 2100 mm 6 mm 4 mm 140 mm 115 mm 5 1
MPBD-3HM-1020 2100 mm 10 mm 6 mm 180 mm 150 mm 7.5 2
MPBD-3HM-1220 2100 mm 12 mm 8 mm 200 mm 160 mm 10 3
MPBD-3HM-1620 2100 mm 16 mm 12 mm 220 mm 180 mm 15 3
MPBD-3HM-2020 2100 mm 20 mm 15 mm 240 mm 200 mm 20 5
MPBD-3HM-2520 2100 mm 25 mm 18 mm 260 mm 210 mm 20 5
MPBD-3HM-3020 2100 mm 30 mm 22 mm 300 mm 240 mm 25 5
MPBD-3HM-4020 2100 mm 40 mm 30 mm 340 mm 280 mm 30 7.5
MPBD-3HM-5020 2100 mm 50 mm 36 mm 380 mm 310 mm 40 10
MPBD-3HM-0625 2600 mm 6 mm 4 mm 170 mm 140 mm 7.5 2
MPBD-3HM-1025 2600 mm 10 mm 4 mm 200 mm 160 mm 10 3
MPBD-3HM-1225 2600 mm 12 mm 8 mm 220 mm 180 mm 10 3
MPBD-3HM-1625 2600 mm 16 mm 12 mm 240 mm 200 mm 15 5
MPBD-3HM-2025 2600 mm 20 mm 15 mm 280 mm 230 mm 20 5
MPBD-3HM-2525 2600 mm 25 mm 18 mm 300 mm 240 mm 25 5
MPBD-3HM-3025 2600 mm 30 mm 22 mm 320 mm 260 mm 30 7.5
MPBD-3HM-3525 2600 mm 35 mm 26 mm 340 mm 270 mm 30 7.5
MPBD-3HM-4025 2600 mm 40 mm 30 mm 380 mm 310 mm 30 7.5
MPBD-3HM-4525 2600 mm 45 mm 35 mm 400 mm 330 mm 40 10
MPBD-3HM-5025 2600 mm 50 mm 38 mm 420 mm 350 mm 40 10
MPBD-3HM-6025 2600 mm 60 mm 45 mm 450 mm 380 mm 50 10
MPBD-3HM-0830 3100 mm 8 mm 5 mm 200 mm 160 mm 50 3
MPBD-3HM-1030 3100 mm 10 mm 6 mm 220 mm 180 mm 10 3
MPBD-3HM-1230 3100 mm 12 mm 8 mm 240 mm 200 mm 15 3
MPBD-3HM-1630 3100 mm 16 mm 12 mm 260 mm 210 mm 15 3
MPBD-3HM-2030 3100 mm 20 mm 15 mm 300 mm 240 mm 20 5
MPBD-3HM-2530 3100 mm 25 mm 18 mm 320 mm 260 mm 25 5
MPBD-3HM-3030 3100 mm 30 mm 22 mm 350 mm 280 mm 30 7.5
MPBD-3HM-3530 3100 mm 35 mm 26 mm 380 mm 310 mm 40 10
MPBD-3HM-4030 3100 mm 40 mm 30 mm 400 mm 320 mm 40 10
MPBD-3HM-4530 3100 mm 45 mm 35 mm 420 mm 340 mm 40 10
MPBD-3HM-5030 3100 mm 50 mm 38 mm 450 mm 380 mm 50 15
MPBD-3HM-6030 3100 mm 60 mm 45 mm 480 mm 400 mm 50 15
FAQs

Frequently Asked Questions

Why is a Hydro Mechanical Plate Bending Machine used in industrial work?
The Hydro Mechanical Plate Bending Machine is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Hydro Mechanical Plate Bending Machine?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Hydro Mechanical Plate Bending Machine handle?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Hydro Mechanical Plate Bending Machine typically installed?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Hydro Mechanical Plate Bending Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Hydro Mechanical Plate Bending Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Hydro Mechanical Plate Bending Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Hydro Mechanical Plate Bending Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydro Mechanical Plate Bending Machine.
