Grinding Machines

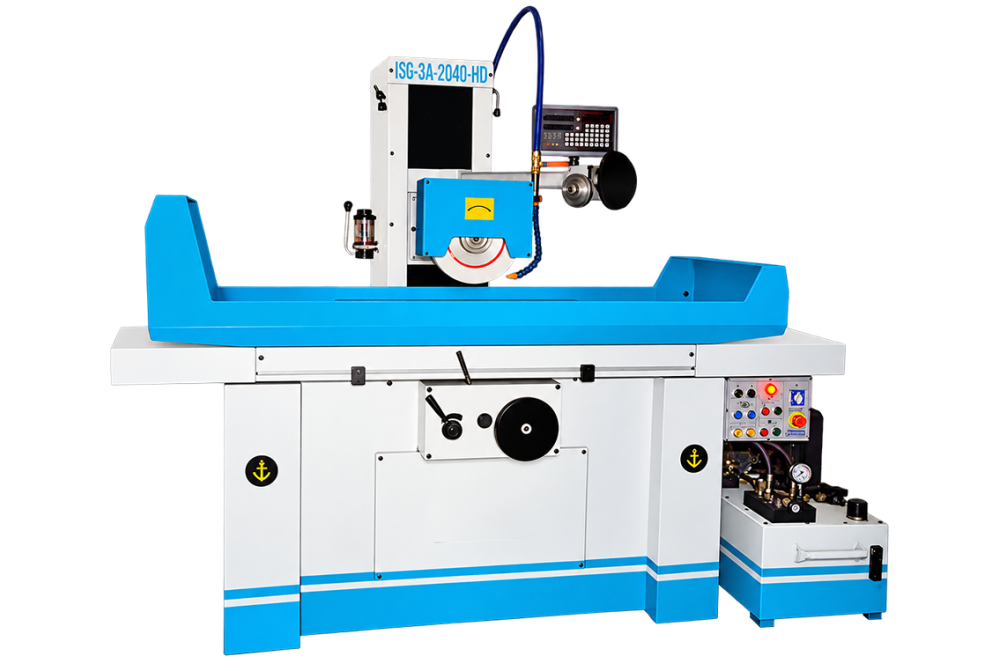

Hydraulic Surface Grinder
Built around producing flat, smooth component surfaces, the Hydraulic Surface Grinder provides a dedicated working arrangement. Its stable table movement and controlled wheel engagement suits tool rooms, die shops, repair facilities, and precision plants. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Surface Grinder
Machine Purpose
The Hydraulic Surface Grinder provides a dedicated method of producing flat, smooth component surfaces. Rather than acting as unrelated general equipment, it brings the working elements together around plates, dies, tooling, and machine parts.
How It Works
Its cycle is based on the way it passes supported work beneath a rotating abrasive wheel. The design therefore prioritises stable table movement and controlled wheel engagement; actual output still depends on the chosen model, tool, workpiece, and operating method. Hydraulic actuation provides progressive force and controlled movement.
Industrial Applications
Likely users are found in tool rooms, die shops, repair facilities, and precision plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Hydraulic Surface Grinder.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Descriptions | Model | PISG-618 A, 1A, 2A, 3A, ED/HD | PISG-820 A, 1A,2A,3A, ED/HD | PISG-1024 A, 1A, 2A, 3A, ED/HD | PISG-1224 A, 1A, 2A 3A, ED/HD |
| Table size | 150x450mm. (6"x18") | 200x500mm (8" 20") | 200x500mm (10" x 24") | 300 x 600 mm (12" x 24") | |
| Max. grinding length | Longitudinal | 475mm (19") | 525mm (21") | 625mm (25') | 625mm (25") |
| Max. grinding Width | Crosswise | 160m (6 1/4) | 212mm (81/2") | 212mm (101/2") | 312mm (12 1/2") |
| Max. Distance from table surface to spindle centerline | 250mm (10") | 400mm (16") | 450 mm (18") | ||
| Standard Magnetic Chuck Size | 160x350mm (6"x14") | ||||
| Longitidinal Movement of table | Hand wheel per rev. | 100mm (4") | |||
| Table speed elect. autofeed | |||||
| Max travel hydraulic | 475mm (19") | 525 mm (21") | 625mm (25") | 625mm (31") | |
| Table speed infinitely variable hydraulc | 50HZ, 5-25 m/min, 60HZ, 5-25 m/min | ||||
| Cross transverse travel | Max. auto transverse travel | 160m (61/4") | 212mm (8 1/4) | 262mm (10 1/2") | 312mm (12 1/2") |
| Handwheel per revolution | 5mm (0.2") | ||||
| Handwheel per graduation | 0.05mm (0.0012 1/2") | ||||
| Auto transverse increment | 1-10mm (0.04"-0.4") | ||||
| Wheelhead Vertical | Handwheel per revolution | 1mm (0.05") | |||
| Handwhee; per gradulution | 0.01 | ||||
| Griding spindle drive | Power rating | 1. H.P | 2 H.P | ||
| Speed | 50 HZ, 2850 RPM., 60HZ, 3450 R.P.M | ||||
| Standard grinding wheel | Diamter | 178mm (7") | 203mm (8") | ||
| Width | 12 mm (1/2") | 19mm (3/4") | |||
| Bore | |||||
| Hydraulic motor | Power rating | 1HP X 6P | 2HP X 6P | ||
| Longitidinal feed motor | Power rating | 1HP X 6P | 1HP X 6P | 2HP X 6P | |
| Floor space | Length x width x height total space require | 1370 x 1020 x 1845 mm (54"x40"x73") | 2030x1370x1630 mm (80" x 54" x 64") | 2450 x 1500 x 1630mm (96" x 61' x 64") | 2500 x 1680 x 2500mm (98"x66"x98") |
| Packing dimesnsions | LxWxH | 1270 x 920 x 1820 mm (50" x 36" x 72") | 1680 x 1270 x 1650 mm (66"x50'x65") | 1780 x 1320 x 1650 mm (70'x52'x65") | 1780 x 1440 x 1700 mm (70" x 56" x 67") |
Accessories
Optional Accessories
Digital Readout
Electromagnetic Chuck
Magnetic Chuck
Precision Vice
Videos
Product Videos
FAQs
Frequently Asked Questions
What does a Hydraulic Surface Grinder do?
The Hydraulic Surface Grinder is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Hydraulic Surface Grinder complete its working cycle?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Hydraulic Surface Grinder?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Hydraulic Surface Grinder?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Hydraulic Surface Grinder may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Hydraulic Surface Grinder?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Hydraulic Surface Grinder need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Hydraulic Surface Grinder?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydraulic Surface Grinder.
When is hydraulic actuation useful on a Hydraulic Surface Grinder?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
