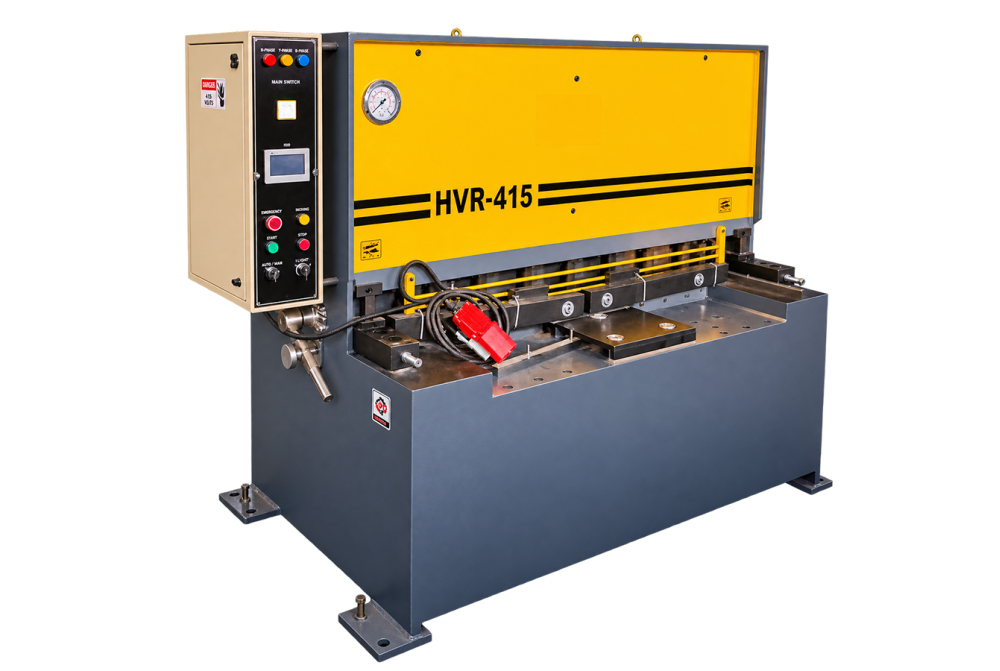

Hydraulic Shearing Machine
The Hydraulic Shearing Machine handles sheet blanks, plate, bars, or title-specific scrap through a layout intended for cutting sheet, plate, sections, or scrap without conventional sawing. It passes a moving blade through material supported at the cutting zone, with guided blade movement and stable material support. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Shearing Machine
Machine Purpose
The Hydraulic Shearing Machine is a purpose-built unit for cutting sheet, plate, sections, or scrap without conventional sawing. Its layout is organised around sheet blanks, plate, bars, or title-specific scrap, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports repeat work without replacing the need for trained operation. Hydraulic actuation provides progressive force and controlled movement.
Industrial Applications
The machine is applicable to fabrication shops, recycling yards, and metal processors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Hydraulic Shearing Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Shearing Length mm | Min. Rake Angle | Maximum Rake Angle (M.S) | Rake Angle | Rake Angle Range | Strokes/Minute at Min. & Max. Rake Angle | Holddowns | Holding Force kgs. | Power H.P. | Overall Dimensions in mm (L x W x H) | Approx. Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PHS325 | 2500 | 3.15 / 4 | 2 / 3 | 1'15" | 0.5-2" | 28-13 | 13 | 2500 | 5 | 3150 x 2000 x 2400 | 3800 |
| PHS330 | 3000 | 3.15 / 4 | 2 / 3 | 1'15" | 0.5-2" | 24-9 | 16 | 2500 | 5 | 3500 x 2000 x 2400 | 4400 |
| PHS412 | 1250 | 4 / 6 | 3 / 4 | 1'37" | 0.5-3" | 33-17 | 5 | 4000 | 5 | 2000 x 2000 x 2400 | 2700 |
| PHS415 | 1500 | 4 / 6 | 3 / 4 | 1'37" | 0.5-3" | 30-15 | 8 | 4500 | 5 | 2250 x 2000 x 2400 | 3200 |
| PHS420 | 3000 | 4 / 6 | 3 / 4 | 1'37" | 0.5-3" | 28-13 | 11 | 6200 | 7.5 | 2750 x 2000 x 2400 | 3500 |
| PHS425 | 2500 | 4 / 6 | 3 / 4 | 1'37" | 0.5-3" | 27/12 | 13 | 8000 | 7.5 | 3400 x 2750 x 2450 | 5200 |
| PHS430 | 3000 | 4 / 6 | 3 / 4 | 1'37" | 0.5-3" | 26-8 | 16 | 10000 | 10 | 4000 x 2350 x 2450 | 6000 |
| PHS440 | 4000 | 4 / 6 | 3 / 4 | 1'45" | 0.5-3" | 24-6 | 20 | 12000 | 10 | 4500 x 2350 x 2450 | 8500 |
| PHS615 | 1500 | 6 / 8 | 4 / 6 | 1'45" | 0.5-3" | 24-8 | 9 | 6600 | 10 | 2250 x 2350 x 2500 | 4000 |
| PHS620 | 5000 | 6 / 8 | 4 / 6 | 1'45" | 0.5-3" | 22-7 | 11 | 6500 | 10 | 2750 x 2350 x 2500 | 4300 |
| PHS625 | 6000 | 6 / 8 | 4 / 6 | 1'45" | 0.5-3" | 28-8 | 14 | 8500 | 15 | 3400 x 2350 x 2500 | 6200 |
| PHS630 | 1500 | 6 / 8 | 4 / 6 | 1'45" | 0.5-3" | 24-6 | 16 | 10800 | 15 | 4000 x 2200 x 2500 | 7000 |
| PHS640 | 2000 | 6 / 8 | 4 / 6 | 2" | 0.5-3" | 24-6 | 20 | 13600 | 20 | 5100 x 2700 x 2800 | 8400 |
| PHS815 | 1500 | 8 / 10 | 6 / 8 | 2" | 0.5-3" | 22-10 | 9 | 10500 | 15 | 2250 x 2600 x 2650 | 5000 |
| PHS820 | 3000 | 8 / 10 | 6 / 8 | 2" | 0.5-3" | 18-8 | 11 | 12500 | 15 | 2750 x 2600 x 2650 | 5500 |
| PHS825 | 4000 | 8 / 10 | 6 / 8 | 2" | 0.5-3" | 24-8 | 14 | 16300 | 20 | 3500 x 2600 x 2650 | 6800 |
| PHS830 | 5000 | 8 / 10 | 6 / 8 | 2" | 0.5-3" | 20-6 | 16 | 18500 | 20 | 4200 x 2600 x 2650 | 7700 |
| PHS840 | 1500 | 8 / 10 | 6 / 8 | 2" | 0.5-3" | 20-8 | 20 | 23000 | 25 | 5200 x 2900 x 2800 | 13500 |
| PHS1015 | 1500 | 10 / 13 | 8 / 10 | 2" | 0.5-3" | 20-10 | 9 | 10500 | 15 | 2250 x 2650 x 2700 | 5500 |
| PHS1020 | 2500 | 10 / 13 | 8 / 10 | 2" | 0.5-3" | 18-8 | 11 | 12600 | 15 | 2750 x 2650 x 2700 | 6000 |
| PHS1025 | 3000 | 10 / 13 | 8 / 10 | 2" | 0.5-3" | 24-8 | 14 | 17500 | 20 | 3600 x 2650 x 2700 | 8000 |
| PHS1030 | 1500 | 10 / 13 | 8 / 10 | 2" | 0.5-3" | 20-6 | 16 | 20000 | 20 | 4200 x 2650 x 2700 | 10500 |
| PHS1040 | 4000 | 10 / 13 | 8 / 10 | 2" | 0.5-3" | 18-6 | 20 | 25000 | 30 | 5200 x 2900 x 2900 | 15200 |
| PHS1320 | 2000 | 13 / 16 | 10 / 13 | 2" | 1-3" | 13-5 | 11 | 16500 | 20 | 2750 x 2650 x 2950 | 7000 |
| PHS1325 | 3000 | 13 / 16 | 10 / 13 | 2" | 1-3" | 15-10 | 13 | 32000 | 25 | 3600 x 2650 x 2950 | 9600 |
| PHS1330 | 4000 | 13 / 16 | 10 / 13 | 2" | 1-3" | 12-6 | 16 | 37000 | 25 | 4200 x 2650 x 2950 | 11800 |
| PHS1340 | 5000 | 13 / 16 | 10 / 13 | 2" | 1-3" | 10-4 | 20 | 22000 | 30 | 5200 x 3000 x 3050 | 17800 |
| PHS1620 | 2000 | 16 / 20 | 13 / 16 | 2" | 1-3" | 13-7 | 11 | 20000 | 25 | 2750 x 2950 x 3150 | 12000 |
| PHS1625 | 2500 | 16 / 20 | 13 / 16 | 2" | 1-3" | 15-8 | 13 | 40000 | 30 | 3600 x 2950 x 3150 | 12000 |
| PHS1630 | 3000 | 16 / 20 | 13 / 16 | 2" | 1-3" | 12-6 | 16 | 43500 | 30 | 4250 x 2950 x 3150 | 15300 |
| PHS1640 | 4000 | 16 / 20 | 13 / 16 | 2" | 1-3" | 10-4 | 20 | 30000 | 30 | 5200 x 3050 x 3500 | 21500 |
| PHS2020 | 2000 | 20 / 25 | 16 / 20 | 2" | 1-3" | 16-8 | 11 | 32000 | 40 | 2900 x 2950 x 3150 | 17000 |
| PHS2025 | 2500 | 20 / 25 | 16 / 20 | 2" | 1-3" | 15-8 | 13 | 48000 | 40 | 3600 x 2950 x 3150 | 18000 |
| PHS2030 | 3000 | 20 / 25 | 16 / 20 | 2" | 1-3" | 12-6 | 16 | 52000 | 40 | 4250 x 2950 x 3150 | 20000 |
| PHS2040 | 4000 | 20 / 25 | 16 / 20 | 2" | 1-3" | 10-4 | 20 | 30000 | 50 | 5200 x 3050 x 3500 | 24000 |
