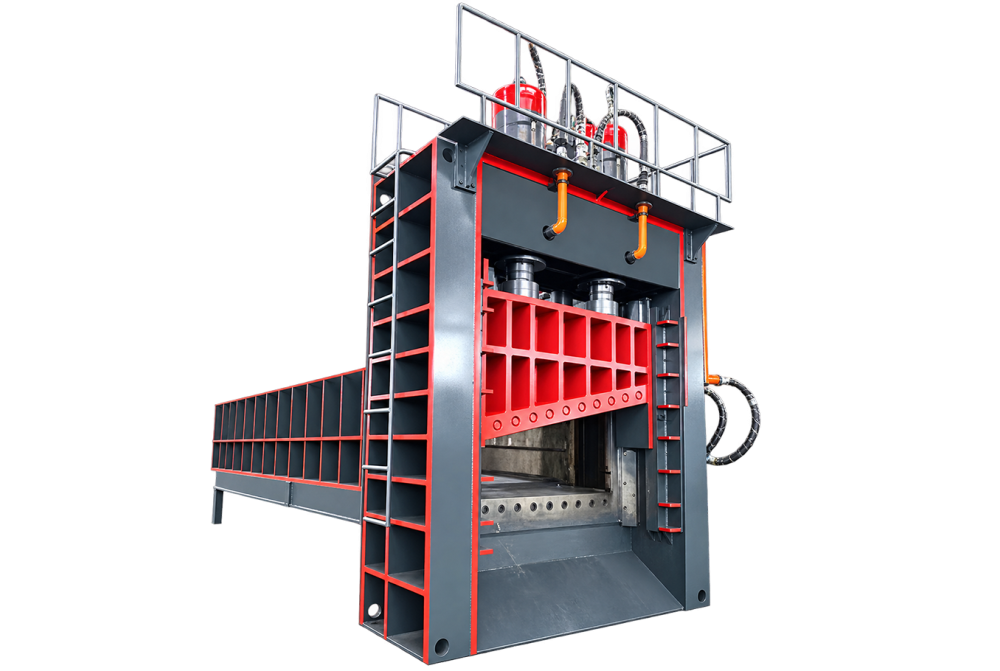

Hydraulic Scrap Gantry Shearing Machine
Built around cutting sheet, plate, sections, or scrap without conventional sawing, the Hydraulic Scrap Gantry Shearing Machine provides a dedicated working arrangement. Its guided blade movement and stable material support suits fabrication shops, recycling yards, and metal processors. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Scrap Gantry Shearing Machine
Machine Purpose
The Hydraulic Scrap Gantry Shearing Machine provides a dedicated method of cutting sheet, plate, sections, or scrap without conventional sawing. Rather than acting as unrelated general equipment, it brings the working elements together around sheet blanks, plate, bars, or title-specific scrap.
How It Works
A typical cycle begins with locating the job correctly, after which the machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports repeat work without replacing the need for trained operation. Hydraulic actuation provides progressive force and controlled movement.
Industrial Applications
The machine is applicable to fabrication shops, recycling yards, and metal processors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within scrap bailing machines can differ in arrangement and capability. The required Hydraulic Scrap Gantry Shearing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Specification | PCSM-400 | PCSM-500 | PCSM-630 | PCSM-800 |
|---|---|---|---|---|
| Journey | 600 mm | 600 mm | 1060 mm | 1000 mm |
| Maximum working pressure | 25 MPa | 25-28 MPa | 25 MPa | 25-30 MPa |
| Cutting width | 1400 mm | - | 1800 mm | 2000 mm |
| Shear angle | 1 Degree | 1 Degree | 13 Degree | 9 Degree |
| Shear speed | 2-3 times/minute | 2-3 times/minute | 3 times/minute | 2-4 times/minute |
| Cut opening | Minimum 400 mm | 400-650 mm | 500-800 mm | 600-1500 mm |
| Equipment motor total power | 74 KW | 111 KW | 180 KW | 270 KW |
| Rated pressure | 31.5 MPa | 31.5 MPa | 31.5 MPa | 31.5 MPa |
| Operation mode | PLC computer programming fully automatic control | PLC computer programming fully automatic control | PLC computer programming fully automatic control | PLC computer programming fully automatic control |
Short Videos
YouTube Short Videos
Applications
Applications
Hydraulic Scrap Gantry Shearing Machine Application Image 1
Hydraulic Scrap Gantry Shearing Machine Application Image 2
FAQs
Frequently Asked Questions
What does a Hydraulic Scrap Gantry Shearing Machine do?
The Hydraulic Scrap Gantry Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Hydraulic Scrap Gantry Shearing Machine complete its working cycle?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Hydraulic Scrap Gantry Shearing Machine?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Hydraulic Scrap Gantry Shearing Machine?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Hydraulic Scrap Gantry Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Hydraulic Scrap Gantry Shearing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Hydraulic Scrap Gantry Shearing Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Hydraulic Scrap Gantry Shearing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydraulic Scrap Gantry Shearing Machine.
What is the benefit of hydraulic actuation on this Hydraulic Scrap Gantry Shearing Machine?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
