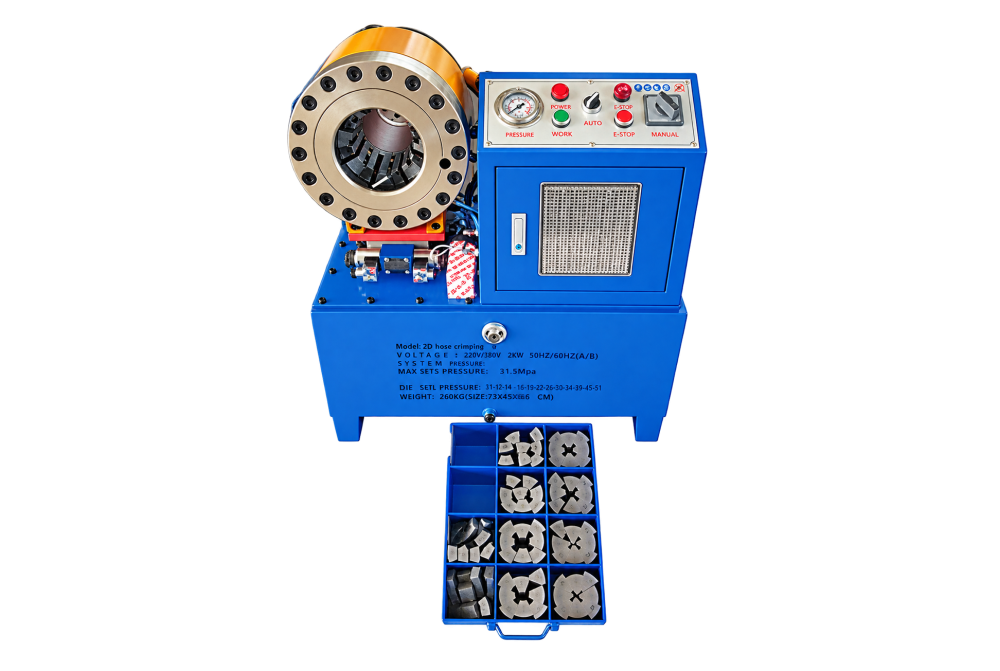

Hydraulic Hose Crimping Machine PHC 2
The primary role of the Hydraulic Hose Crimping Machine PHC 2 is securing fittings onto hose or title-specific assemblies. Its concentric die closure for repeatable retention suits hose service, equipment repair, plumbing products, and assembly plants. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Hose Crimping Machine PHC 2
Machine Purpose
For facilities needing securing fittings onto hose or title-specific assemblies, the Hydraulic Hose Crimping Machine PHC 2 offers a process-specific workstation. Its arrangement supports hoses, ferrules, fittings, or couplers identified by the title while keeping the important operating area accessible.
Industrial Applications
Likely users are found in hose service, equipment repair, plumbing products, and assembly plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it closes segmented dies uniformly around the prepared component. The design therefore prioritises concentric die closure for repeatable retention; actual output still depends on the chosen model, tool, workpiece, and operating method. Hydraulic actuation provides progressive force and controlled movement.
Selection Considerations
Machines within hose crimping machines can differ in arrangement and capability. The required Hydraulic Hose Crimping Machine PHC 2 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Crimping Capacity of 2 wire hose | 2 inches |
| Crimping Capacity of 4 wire hose | 1 inches |
| Opening at Front side | 155 mm |
| Maximum inside opening without dies | 115 mm |
| Opening at Rear end | 130 mm |
| Maximum working pressure | 315 Bar |
| Kilowatt of motor | 3.75 KW, 5 HP |
| Voltage | 220V/415 V |
| Capacity of oil tank | 50 Litres |
| Number of dies | 10 |
| Sizes of dies | 15, 19, 23, 26, 30, 34, 38, 45, 52, 62 |
| Noise level | <75db |
| Weight of the machine | 250 Kg |
| Dimensions of machine (L X B X H) | 665 x 525 x 800 mm |
| Dimensions of Export packing (wooden box) | 720 x 575 X 870 mm |
Videos
Product Videos
FAQs
Frequently Asked Questions
What does a Hydraulic Hose Crimping Machine PHC 2 do?
The Hydraulic Hose Crimping Machine PHC 2 is intended for securing fittings onto hose or title-specific assemblies. It is arranged around hoses, ferrules, fittings, or couplers identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Hydraulic Hose Crimping Machine PHC 2 complete its working cycle?
The machine closes segmented dies uniformly around the prepared component. Its concentric die closure for repeatable retention supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Hydraulic Hose Crimping Machine PHC 2?
It is primarily associated with hoses, ferrules, fittings, or couplers identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Hydraulic Hose Crimping Machine PHC 2?
Typical users include hose service, equipment repair, plumbing products, and assembly plants. In these settings, the Hydraulic Hose Crimping Machine PHC 2 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Hydraulic Hose Crimping Machine PHC 2?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Hydraulic Hose Crimping Machine PHC 2 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Hydraulic Hose Crimping Machine PHC 2?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydraulic Hose Crimping Machine PHC 2.
What is the benefit of hydraulic actuation on this Hydraulic Hose Crimping Machine PHC 2?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
