Automobile Garage Machines

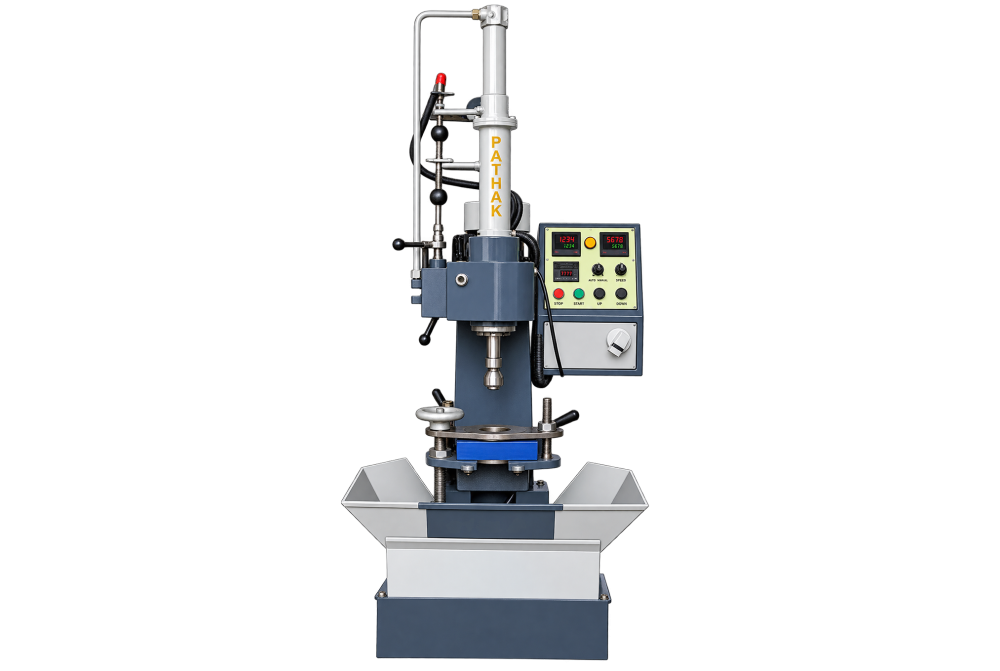

Hydraulic Honing Machine
The Hydraulic Honing Machine is designed for refining bore geometry and internal surface finish. The operating method supports engine rebuilding, hydraulic repair, and component finishing and centres on controlled abrasive contact throughout the bore. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Honing Machine
Machine Purpose
For facilities needing refining bore geometry and internal surface finish, the Hydraulic Honing Machine offers a process-specific workstation. Its arrangement supports engine cylinders, hydraulic bores, and tubular surfaces while keeping the important operating area accessible.
Industrial Applications
Likely users are found in engine rebuilding, hydraulic repair, and component finishing. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves expanding abrasive stones through the lubricated bore. Its controlled abrasive contact throughout the bore supports repeat work without replacing the need for trained operation. Hydraulic actuation provides progressive force and controlled movement.
Selection Considerations
Machines within automobile garage machines can differ in arrangement and capability. The required Hydraulic Honing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PHH1 |
| Min. Honing Diameter | 38mm |
| Max. Honing Diameter | 75mm |
| Min. Honing Stroke | 50mm |
| Max. Honing Stroke | 150mm |
| Stroke Speed | 0.5 to 12 meters/min. |
| Spindle Speed | 160 RMP |
| Motor | 1 H.P, -3 Phase |
| Coolant Pump | 0.15 H.P. (1 Phase) |
| LxWxH of Requried | 850 x 600 x1550 mm |
| Net Weight | 1000 x 750 mm |
| packing Case Dimension | 250 kg.Approx . |
| LxWxH | 1000 x 750 x 1750 mm |
| Shipping Volume | 2 m clude |
FAQs
Frequently Asked Questions
Why is a Hydraulic Honing Machine used in industrial work?
The Hydraulic Honing Machine is intended for refining bore geometry and internal surface finish. It is arranged around engine cylinders, hydraulic bores, and tubular surfaces, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Hydraulic Honing Machine?
The machine moves expanding abrasive stones through the lubricated bore. Its controlled abrasive contact throughout the bore supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Hydraulic Honing Machine handle?
It is primarily associated with engine cylinders, hydraulic bores, and tubular surfaces. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Hydraulic Honing Machine typically installed?
Typical users include engine rebuilding, hydraulic repair, and component finishing. In these settings, the Hydraulic Honing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Hydraulic Honing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Hydraulic Honing Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Hydraulic Honing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydraulic Honing Machine.
How does hydraulic actuation affect the Hydraulic Honing Machine?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
