Cutting Machines

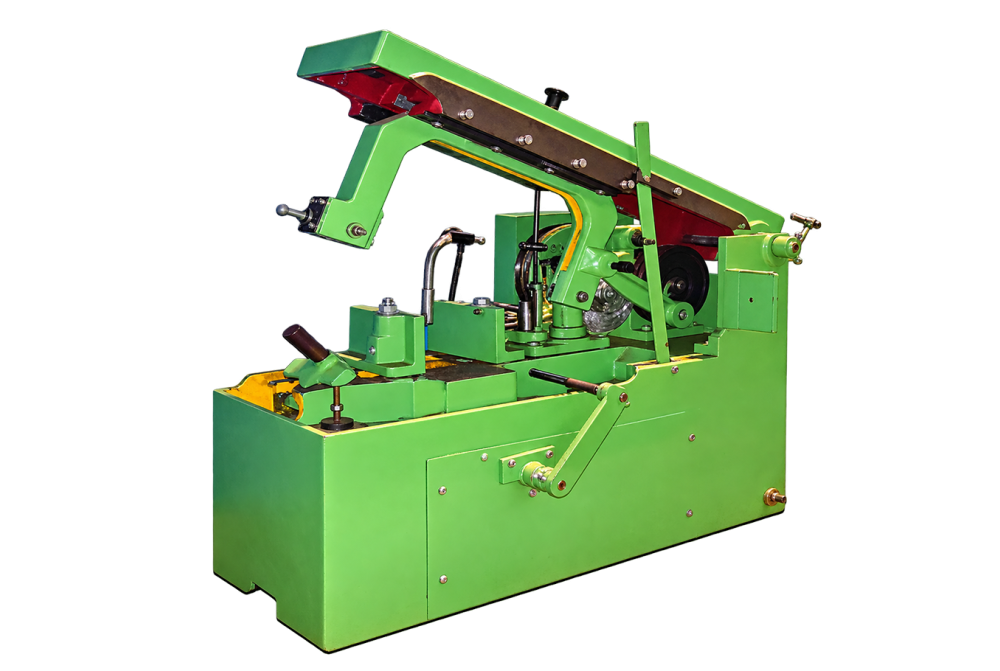

Hydraulic Hacksaw Machine
The primary role of the Hydraulic Hacksaw Machine is performing the specialised operation identified by its title. The operating method supports production workshops, maintenance departments, and engineering facilities and centres on a task-focused layout built around its primary operation. Hydraulic actuation provides progressive force and controlled movement.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hydraulic Hacksaw Machine
Machine Purpose
Used for performing the specialised operation identified by its title, the Hydraulic Hacksaw Machine addresses a distinct stage of industrial work. It accommodates components and materials suitable for the named process and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include production workshops, maintenance departments, and engineering facilities. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports repeat work without replacing the need for trained operation. Hydraulic actuation provides progressive force and controlled movement.
Selection Considerations
When comparing versions of the Hydraulic Hacksaw Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Material |
Teeth Per Inch
Below 1'' Below 2'' Below 3'' |
Strokes /min. | Force (kg.) | Coolant | ||
| Aluminium Alloy | 10 | 6 | 4 | 120/130 | 25 | YES |
| Brass | 10 | 6 | 4 | 100/120 | 25 | YES |
| Bronze | 10 | 6 | 4 | 70/90 | 55 | NO |
| Cast iron | 10 | 6 | 4 | 70/90 | 55 | NO |
| Copper | 14 | 10 | 6 | 70/90 | 55 | NO |
| Mild Steel Tube | 14 | 10 | 6 | 120/130 | 25 | YES |
| Steel Channels | 14 | 10 | 6 | 100/120 | 25 | YES |
| Steel Rails | 14 | 10 | 6 | 100/120 | 25 | YES |
| High Tensile Cl | 14 | 10 | 6 | 70/90 | 55 | NO |
| HSS & Tool Steel | 14 | 10 | 6 | 70/75 | 65 | YES |
| HCHCr,Ti Alloy | 14 | 10 | 6 | 40 | 65 | NO |
| MODEL | M-8 | M-10 | M-12 | M-16 | M-20 | M-24 |
| Cap.of Round Bars | 200 | 250 | 300 | 400 | 500 | 600 |
| Cap.of Square Bar | 150 | 200 | 250 | 325 | 350 | 425 |
| Stroke | 135 | 140 | 140 | 135 | 150 | 150 |
| Strokes Per Min (approx) | 100-120 | 85-100 | 85-100 | 70-85 | 70-85 | 70-85 |
| Blade Size | 14''-16'' | 16''-18'' | 18''-20'' | 18''-24'' | 24''-32'' | 30''-36'' |
| Electric Motor | 1 H.P. | 2 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. |
| RPM of Motor | 1440 | 1440 | 1440 | 1440 | 960 | 960 |
| Length | 1000 | 1150 | 1250 | 1500 | 1650 | 1750 |
| Width | 600 | 625 | 650 | 675 | 700 | 725 |
| Height | 800 | 1000 | 1000 | 1200 | 1300 | 1400 |
| Weight (approx.) | 335 kg. | 450 kg. | 550 kg. | 750 kg. | 1100 kg. | 1200 kg. |
| weight with packing | 450 kg. | 550 kg. | 650 kg. | 900 kg. | 1300 kg. | 1400 kg. |
| V-Belt Required | 4 pcs. | 4 pcs. | 4 pcs. | 5 pcs. | 6 pcs. | 6 pcs. |
Videos
Product Videos
Applications
Applications
Automotive
Rolling Mill
Steel Plants
Tool Rooms
Workshops
FAQs
Frequently Asked Questions
What does a Hydraulic Hacksaw Machine do?
The Hydraulic Hacksaw Machine is intended for performing the specialised operation identified by its title. It is arranged around components and materials suitable for the named process, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Hydraulic Hacksaw Machine complete its working cycle?
The machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Hydraulic Hacksaw Machine?
It is primarily associated with components and materials suitable for the named process. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Hydraulic Hacksaw Machine?
Typical users include production workshops, maintenance departments, and engineering facilities. In these settings, the Hydraulic Hacksaw Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Hydraulic Hacksaw Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Hydraulic Hacksaw Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Hydraulic Hacksaw Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Hydraulic Hacksaw Machine.
What is the benefit of hydraulic actuation on this Hydraulic Hacksaw Machine?
Hydraulic actuation provides progressive force and controlled movement. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
