Hydraulic Crimped Wire Mesh Machine
A heavy-duty hydraulic mesh-forming machine for 5–12 mm wire and 10–100 mm apertures where controlled crimping force is essential.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

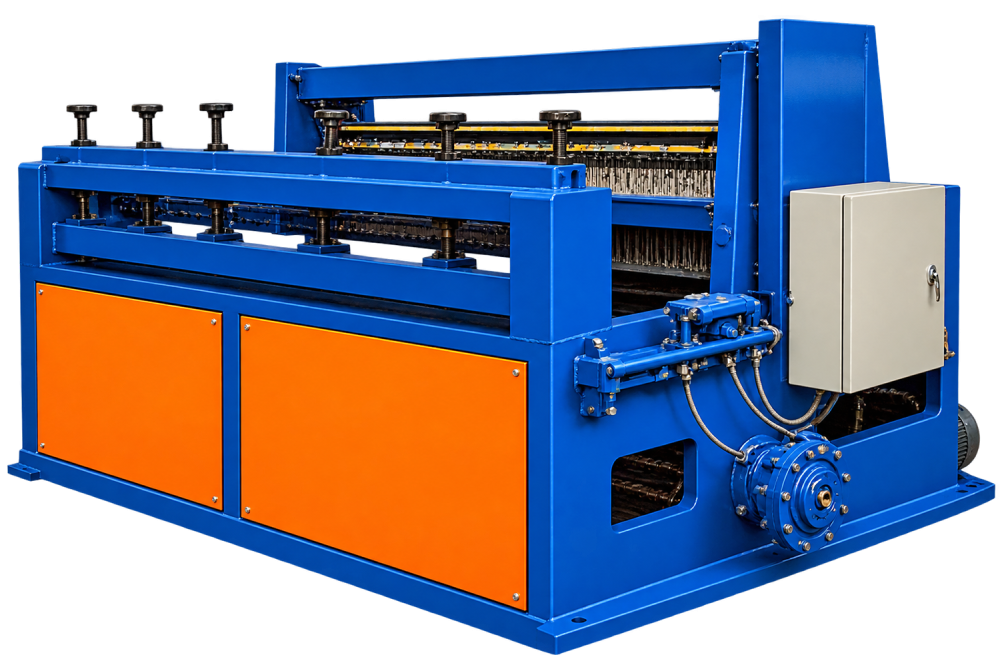

Hydraulic Crimped Wire Mesh Machine
The Hydraulic Crimped Wire Mesh Machine is designed for heavier wire that requires controlled forming pressure before it can be assembled into mesh. Its hydraulic arrangement supports stable crimp formation across robust industrial panels.
Working Principle
Hydraulic force forms the required wave profile in prepared wire. Correctly crimped longitudinal and cross wires then locate at their intersections, creating a mesh whose aperture depends on tooling and setup.
Key Production Capability
Model TLPHCWM is listed for 5–12 mm wire, 10–100 mm aperture sizes, 30 r/min speed, an 11 kW drive, and 380 V three-phase 50 Hz supply. Confirm the required mesh width directly because the legacy width unit is unclear.
Industrial Applications
The machine is relevant to quarry and screening panels, heavy guards, reinforcement and fencing products, agricultural separation screens, and other rigid mesh made from confirmed compatible wire grades.
Why Choose This Machine?
Hydraulic pressure provides controlled force for larger wire sizes, helping achieve repeat crimp geometry and firm wire intersections while reducing reliance on manual forming.
Selection and Operating Considerations
Review wire diameter and strength, crimp depth, aperture, mesh width, panel format, hydraulic duty, material handling, and expected shift volume. Trials are valuable for high-strength or stainless wire.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| Model | TLPHCWM |
| Raw Material Wire | 65 Mn Steel Wire,high carbon steel wire,low-carbon steel wire,stainless steel wire,etc. |
| Wire Diameter Range | 5-12 mm |
| Aperture Size | 10-100 mm |
| Max Mesh Width | 2.5 mm |
| Speed | 30 r/min |
| Power | 11 Kw |
| Voltage | 380 V,3 Phase,50 Hz |
FAQs
Frequently Asked Questions
What is the Hydraulic Crimped Wire Mesh Machine used for?
It forms and assembles heavier crimped wire into rigid mesh for screening, fencing, guarding, and industrial panels.
How does the Hydraulic Crimped Wire Mesh Machine work?
A hydraulic system supplies controlled forming pressure to produce wire crimps that locate adjoining wires in the selected mesh pattern.
What is the available working range of the Hydraulic Crimped Wire Mesh Machine?
The product table lists 5–12 mm wire, 10–100 mm apertures, 30 r/min, and 11 kW power.
Which industries use the Hydraulic Crimped Wire Mesh Machine?
Mining-screen suppliers, quarry equipment producers, heavy fencing plants, construction-product manufacturers, and wire processors may use it.
What should be checked before selecting the Hydraulic Crimped Wire Mesh Machine?
Confirm wire grade, tensile strength, diameter, aperture, crimp pattern, panel width, output, electrical supply, and hydraulic requirements.
How should the Hydraulic Crimped Wire Mesh Machine be maintained?
Monitor hydraulic oil and filters, inspect leaks, tooling, guides, fasteners, and controls, and keep scale and wire debris away from moving parts.
