Cutting Machines

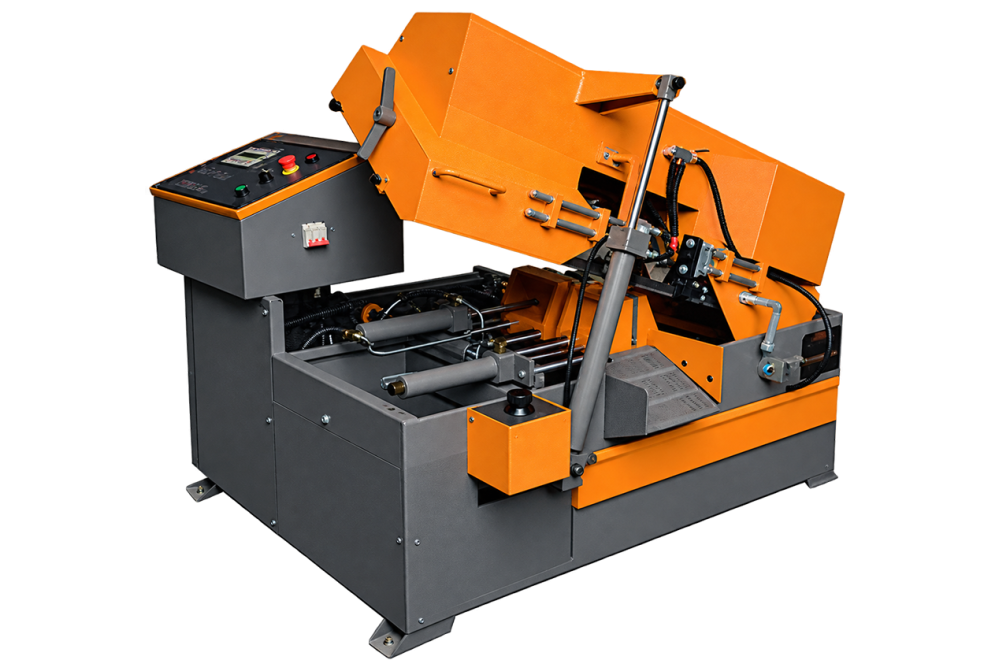

Horizontal Metal Cutting Bandsaw Machine
The Horizontal Metal Cutting Bandsaw Machine is designed for cutting stock with a continuous band blade. It guides a tensioned loop blade through supported material, with continuous cutting with stable blade guidance. The horizontal layout supports work along a level machine axis.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Horizontal Metal Cutting Bandsaw Machine
Machine Purpose
The Horizontal Metal Cutting Bandsaw Machine is a purpose-built unit for cutting stock with a continuous band blade. Its layout is organised around bars, tubes, profiles, timber, or title-specific stock, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it guides a tensioned loop blade through supported material. The design therefore prioritises continuous cutting with stable blade guidance; actual output still depends on the chosen model, tool, workpiece, and operating method. The horizontal layout supports work along a level machine axis.
Industrial Applications
Likely users are found in material stores, fabrication shops, sawmills, and workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
When comparing versions of the Horizontal Metal Cutting Bandsaw Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
MODEL
|
PDC
|
| Round mm | 175 |
| Square mm | 150 X 150 |
|
DRIVE
|
|
| Drive Motor | 1 H.P. 1440 RPM |
| Hydraulic Motor | 0.50 H.P./ 1440 RPM |
|
MACHINE SPECIFICATIONS
|
|
| Coolant Pump | 0.15 H.P.440 Volts |
| Blade Speed | 20 / 40 / 60 Mtr / Mnt |
| Saw Blade Carbon or Bi Metal (mm) | 3000 x 27 x 0.9 |
| Floor Space L X W X H mm | 1630 x 1200 x 1000 |
| Net Weight (Approx) | 475 (kg) |
| Packed Weight | 650 (Approx) |
| Bar Stand (2Pcs) | 1150 x 300 x 480 |
Videos
Product Videos
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a Horizontal Metal Cutting Bandsaw Machine used in industrial work?
The Horizontal Metal Cutting Bandsaw Machine is intended for cutting stock with a continuous band blade. It is arranged around bars, tubes, profiles, timber, or title-specific stock, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Horizontal Metal Cutting Bandsaw Machine?
The machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Horizontal Metal Cutting Bandsaw Machine handle?
It is primarily associated with bars, tubes, profiles, timber, or title-specific stock. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Horizontal Metal Cutting Bandsaw Machine typically installed?
Typical users include material stores, fabrication shops, sawmills, and workshops. In these settings, the Horizontal Metal Cutting Bandsaw Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Horizontal Metal Cutting Bandsaw Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Horizontal Metal Cutting Bandsaw Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Horizontal Metal Cutting Bandsaw Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Horizontal Metal Cutting Bandsaw Machine.
When is horizontal arrangement useful on a Horizontal Metal Cutting Bandsaw Machine?
The horizontal layout supports work along a level machine axis. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
