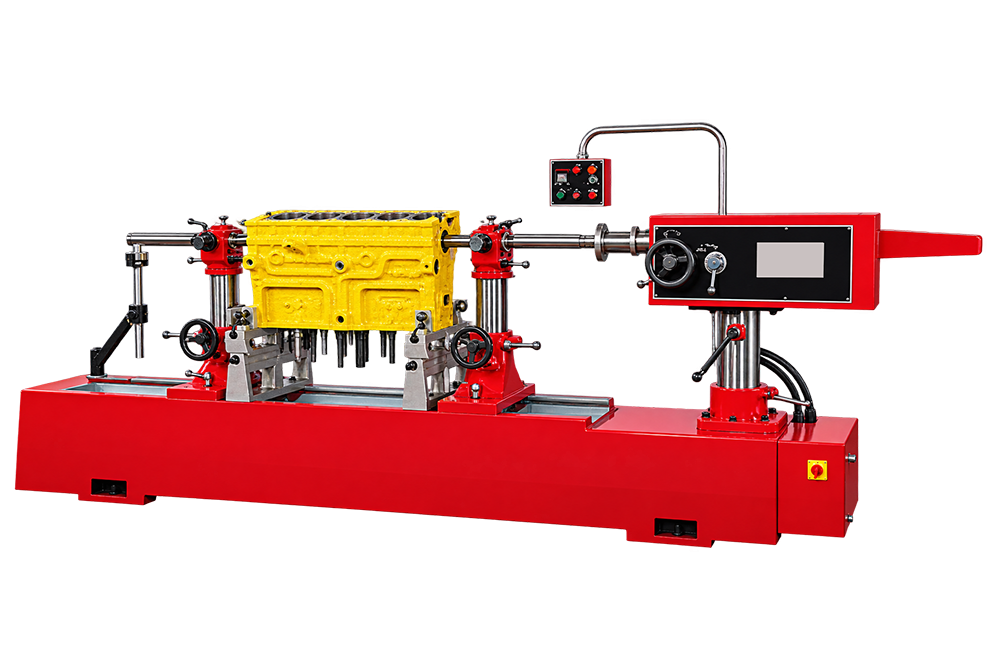

Horizontal Line Boring Machine
For work involving pivot points, bearing seats, frames, and heavy repair parts, the Horizontal Line Boring Machine offers a process-specific solution. Its bar alignment across separated bore positions suits earthmoving repair, mining maintenance, engine rebuilding, and heavy workshops. The horizontal layout supports work along a level machine axis.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Horizontal Line Boring Machine
Machine Purpose
The Horizontal Line Boring Machine is a purpose-built unit for restoring or machining bores on a shared centreline. Its layout is organised around pivot points, bearing seats, frames, and heavy repair parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine supports a boring bar through aligned housing locations. Its bar alignment across separated bore positions supports repeat work without replacing the need for trained operation. The horizontal layout supports work along a level machine axis.
Industrial Applications
Likely users are found in earthmoving repair, mining maintenance, engine rebuilding, and heavy workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Horizontal Line Boring Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PLBM 2500 | PLBM 1500 |
| Maximum Length of Block | 2500 MM (98.5'') | 1500 MM (59'') |
| Max.Distance Between Top of Bed To Boring Bar Center | 850 MM (33.5'') | 750 MM (29 1/2'') |
| Min.Distance Between Top of Bed and Boring Bar Center | 550 MM (215'') | 450 MM (17 3/4'') |
| Boring Capacity With Standard Equipments | 32 MM - 175 MM (1.25'' - 7'') | 32 MM - 140 MM (1 1/4 - 5.5'') |
| Boring Capacity With Optional Equipments | 24 MM - 225 MM (1''- 8.9'') | 24 MM - 225 MM (1'' - 8 3/4'') |
| Spindle Speed Infinitely Variable | 80 - 700 RPM | 80 - 700 RPM |
| Feed Both Directions Infinitely Variable | 0-50 MM / MIN. | 0 - 50 MM / MIN. |
| Max.Travel of Boring Bar | 450 MM (17 3/4'') | 450 MM (17 3/4'') |
| Drive Motor (A.C) | 1.5 KW / 2 HP | 1.5 KW / 2 HP. |
| Spindle Feed Motor (D.C) | 0.18 KW / 0.25 HP | 0.18 KW / 0.25 HP |
| Length of Machine | 4840 MM (190'') | 3840 MM (151'') |
| Width of the Machine | 750 MM (29 1/2'') | 750 MM (29.5'') |
| Height of Machine | 1850 MM (73'') | 1750 MM (69'') |
| Work Space Required (LxWxH) | 6000 MM X 1750 MM X 2000 MM (236'' X 69'' X 78.7'') |
5000 MM X 1750 MM X 1900 MM (197'' X 69'' X 75'') |
| Net Weight (Approx) | 2250 KGS. | 1750 KG |
| Gross Weight (Approx) | 2750 KGS. | 2250 KGS |
| Shipping Volume | 2750 KGS. | 6 M3 |
| Packing Case Outer Size (LxWxH) | 5100 MM X 1000 MM X 1595 MM (200'' X 40'' X 62'') |
4100 MM X 1000 MM X 1495 MM (161'' X 40'' X 58.8'') |
