Cutting Machines

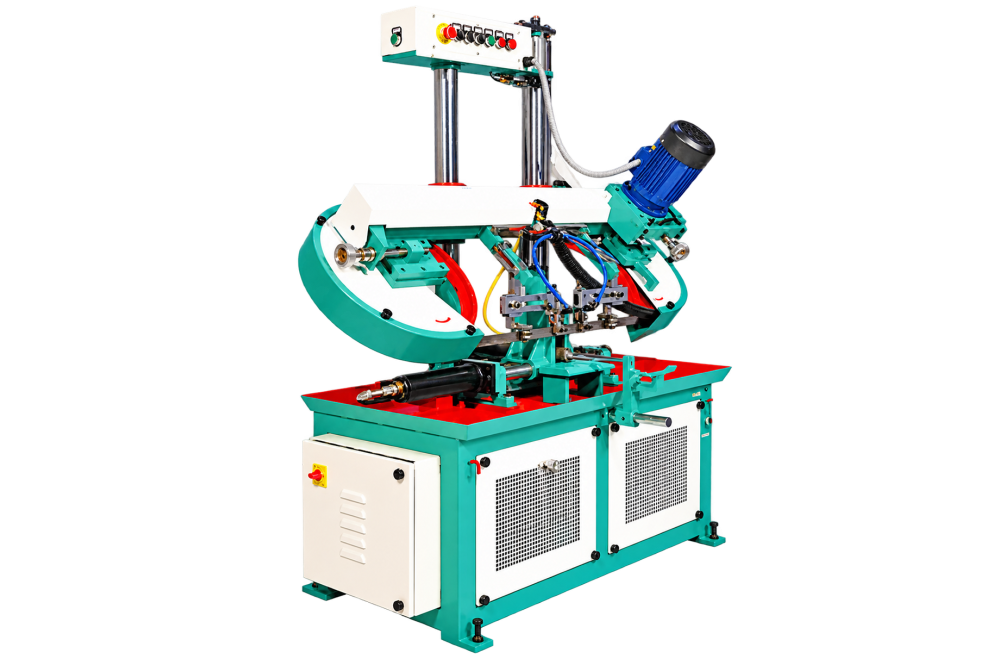

Horizontal Double Column Bandsaw Machine Model-175 S.A.
For work involving bars, tubes, profiles, timber, or title-specific stock, the Horizontal Double Column Bandsaw Machine Model-175 S.A. offers a process-specific solution. Its continuous cutting with stable blade guidance suits material stores, fabrication shops, sawmills, and workshops. The horizontal layout supports work along a level machine axis.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Horizontal Double Column Bandsaw Machine Model-175 S.A.
Machine Purpose
The Horizontal Double Column Bandsaw Machine Model-175 S.A. is a purpose-built unit for cutting stock with a continuous band blade. Its layout is organised around bars, tubes, profiles, timber, or title-specific stock, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports repeat work without replacing the need for trained operation. The horizontal layout supports work along a level machine axis.
Industrial Applications
The machine is applicable to material stores, fabrication shops, sawmills, and workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Horizontal Double Column Bandsaw Machine Model-175 S.A..
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | 175 S | 175 S.A. | 175 H.L.C. |
| Cutting Capacity Round Bar(mm) | 175 | 175 | 175 |
| Square(mm) | 160x160 | 160x160 | 160x160 |
| Blade Size(mm) | 27x0.9x2515 | 27x0.9x2515 | 27x0.9x2515 |
| Motor power | 1 H.P./1440 RPM | 1 H.P./1440 RPM | 1 H.P./1440 RPM |
| Coolant Pump Power | 0.15 H.P./2800 RPM | 0.15 H.P./2800 RPM | 0.15 H.P./2800 RPM |
| Hydraulic Drive Motor | x | 0.25 H.P./1500 RPM | 0.25 H.P./1500 RPM |
| Cutting Speed Control | Power Hydraulic | Power Hydraulic | Power Hydraulic |
| Blade Speed Min/Mtr | 32/42 | 32/42 | 32/42 |
| Net Weight | 210 kg | 210 kg | 210 kg |
| Overall Dimension | 1150x500x1400(LxWxH) | 1150x500x1400(LxWxH) | 1150x500x1400(LxWxH) |
Videos
Product Videos
FAQs
Frequently Asked Questions
What is a Horizontal Double Column Bandsaw Machine Model-175 S.A. used for?
The Horizontal Double Column Bandsaw Machine Model-175 S.A. is intended for cutting stock with a continuous band blade. It is arranged around bars, tubes, profiles, timber, or title-specific stock, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Horizontal Double Column Bandsaw Machine Model-175 S.A.?
The machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Horizontal Double Column Bandsaw Machine Model-175 S.A.?
It is primarily associated with bars, tubes, profiles, timber, or title-specific stock. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Horizontal Double Column Bandsaw Machine Model-175 S.A.?
Typical users include material stores, fabrication shops, sawmills, and workshops. In these settings, the Horizontal Double Column Bandsaw Machine Model-175 S.A. may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Horizontal Double Column Bandsaw Machine Model-175 S.A.?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Horizontal Double Column Bandsaw Machine Model-175 S.A. be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Horizontal Double Column Bandsaw Machine Model-175 S.A. price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Horizontal Double Column Bandsaw Machine Model-175 S.A..
How does horizontal arrangement affect the Horizontal Double Column Bandsaw Machine Model-175 S.A.?
The horizontal layout supports work along a level machine axis. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
