Broaching Machines

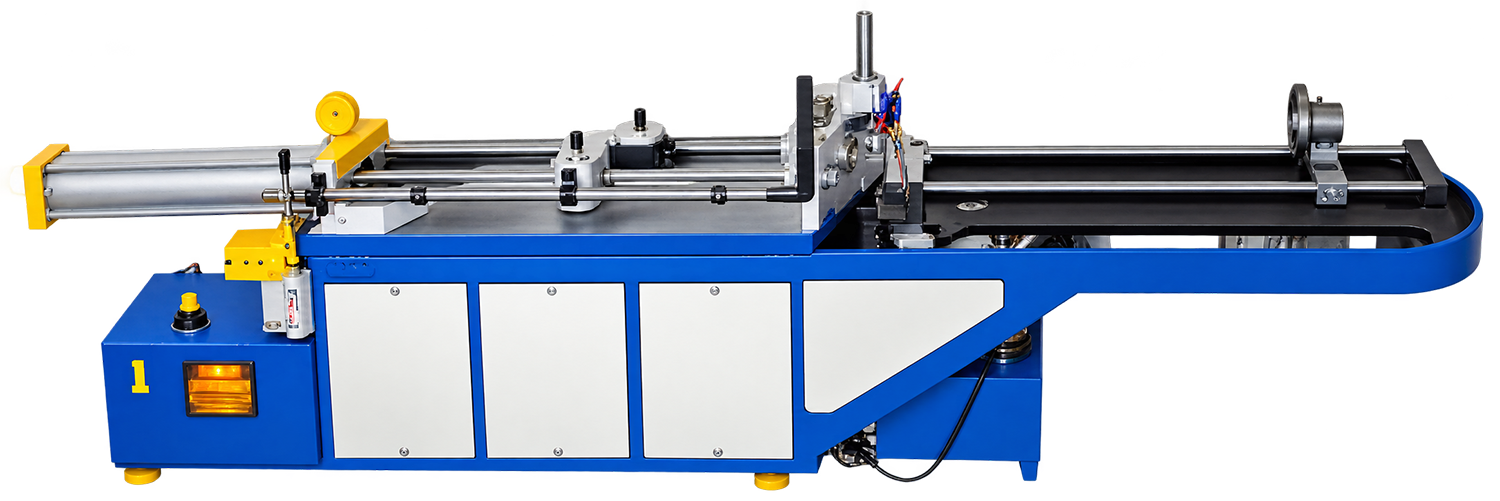

Horizontal Broaching Machine
A hydraulic horizontal broaching machine for controlled, production-oriented internal broaching. Available configurations provide a listed 7-20 ton pulling-force range, 800 or 2,000 mm stroke and infinitely variable cutting speed.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
The Horizontal Broaching Machine is a hydraulic production machine designed to pull a broach along a horizontal axis through a securely supported workpiece. The layout provides convenient access for long tooling, component loading and inspection during suitable internal broaching operations.
Available configurations provide a listed maximum pulling-force range from 7 to 20 tons, with maximum stroke options of 800 mm or 2,000 mm. The infinitely variable cutting-speed range of 0.5 to 3 m/min supports adjustment for the work material, broach geometry and required finish.
The supplied specification also lists a return-speed range of 0.5 to 3 m/min and a 100 mm bore in the table. The machine's hydraulic drive and extended bed arrangement are suited to controlled broach travel and repeatable production cycles.
Typical applications include keyways, splines, slots and other suitable internal profiles. Final selection should consider the component drawing, material, profile, stock allowance, broach length and shank, required force and stroke, fixture design, production volume, target cycle time and surface finish.
Specifications
Technical Specifications
| Parameter | Range / Value |
|---|---|
| Maximum Pulling Force | 7 to 20 tons |
| Maximum Stroke | 800 mm / 2,000 mm |
| Cutting Speed (Infinitely Variable) | 0.5-3 m/min |
| Return Speed | 0.5-3 m/min |
| Diameter of Bore in Table | 100 mm |
| Power of Main Motor for Hydraulics (as listed) | 2500 |
Source note: The supplied sheet prints the hydraulic main-motor value as "2500" without a unit. Confirm the motor power, speed, electrical supply and selected force/stroke configuration in the final technical quotation.
Applications
Applications

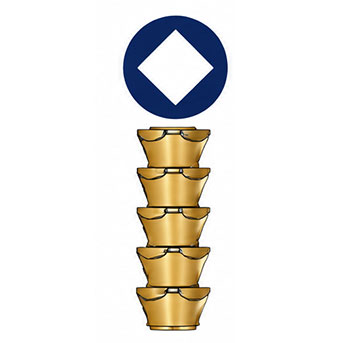

Vertical Broaching Machine Pull Type Application / Uses Image 1

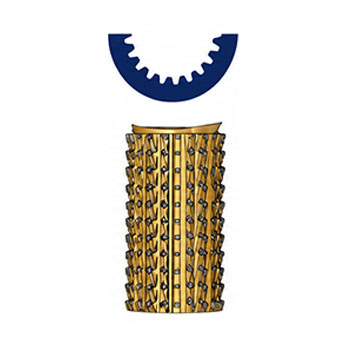

Vertical Broaching Machine Pull Type Application / Uses Image 10

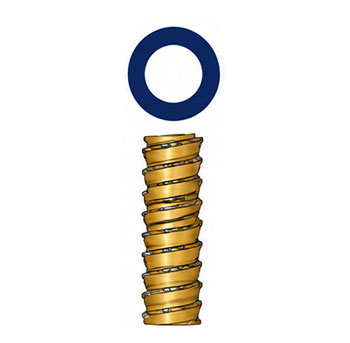

Vertical Broaching Machine Pull Type Application / Uses Image 11

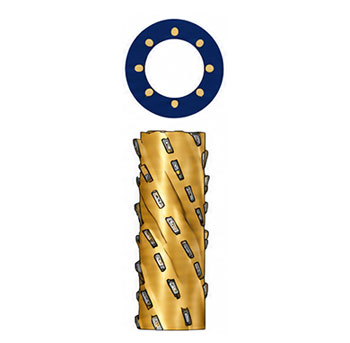

Vertical Broaching Machine Pull Type Application / Uses Image 12

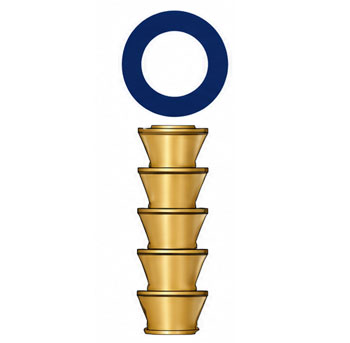

Vertical Broaching Machine Pull Type Application / Uses Image 2

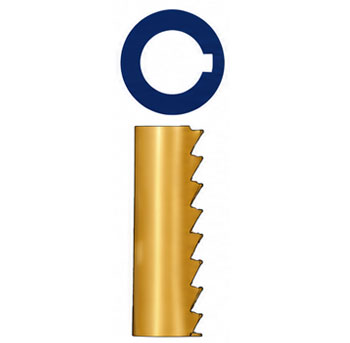

Vertical Broaching Machine Pull Type Application / Uses Image 3

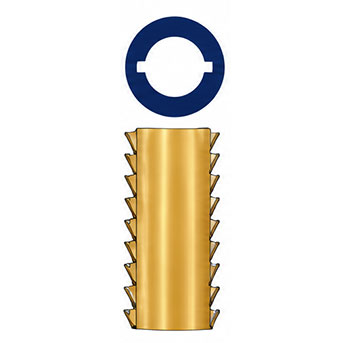

Vertical Broaching Machine Pull Type Application / Uses Image 4

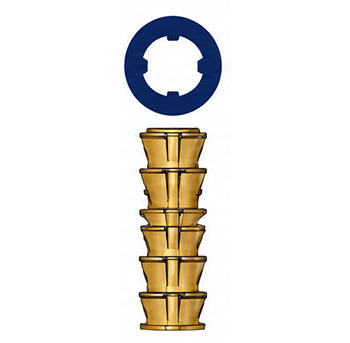

Vertical Broaching Machine Pull Type Application / Uses Image 5

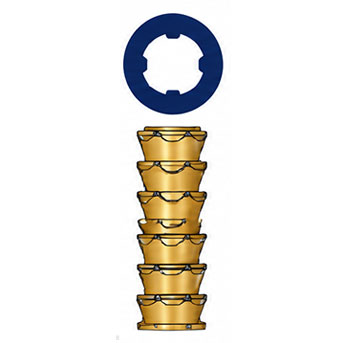

Vertical Broaching Machine Pull Type Application / Uses Image 6

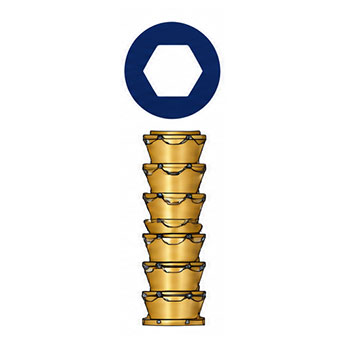

Vertical Broaching Machine Pull Type Application / Uses Image 7

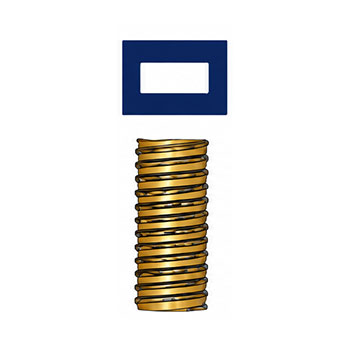

Vertical Broaching Machine Pull Type Application / Uses Image 8

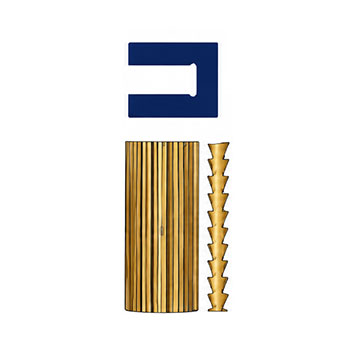

Vertical Broaching Machine Pull Type Application / Uses Image 9
FAQs
Frequently Asked Questions
What is a Horizontal Broaching Machine used for?
It pulls a broach horizontally through a supported workpiece to produce suitable internal profiles such as keyways, splines, slots and shaped bores.
What pulling-force range is available?
The supplied specification lists maximum pulling-force configurations from 7 to 20 tons. The required force must be calculated for the material, profile and broach design.
What stroke options are listed?
The source lists maximum stroke options of 800 mm and 2,000 mm. Select the stroke according to the broach length, workpiece and loading arrangement.
Is the cutting speed adjustable?
Yes. The cutting speed is listed as infinitely variable from 0.5 to 3 m/min.
What is the listed return speed?
The supplied specification lists a return-speed range of 0.5 to 3 m/min.
What table-bore diameter is provided?
The listed diameter of the bore in the table is 100 mm. Fixture, workpiece and tooling compatibility should be verified before ordering.
Are broaches and fixtures included?
The tooling scope should be confirmed with the order. Broaches, pullers and fixtures normally need to match the component drawing, work material and production requirements.
What information is required for machine selection?
Provide the component drawing, material, profile dimensions and tolerance, stock allowance, broach details, required stroke and pulling force, production volume, fixture concept and available electrical supply.
