Lathe Machines

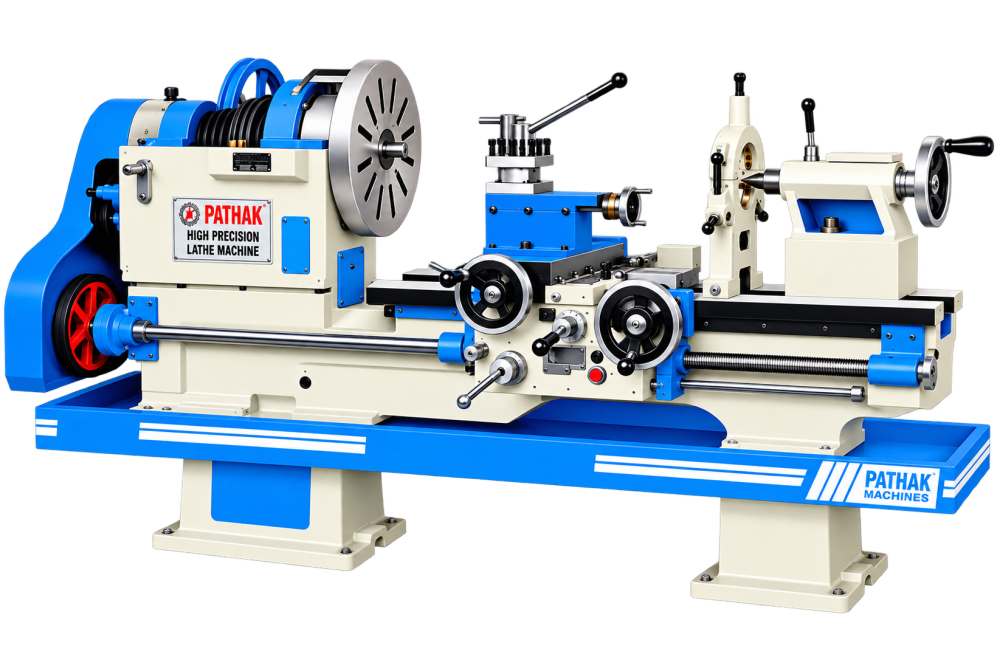

High Precision Lathe Machine
The High Precision Lathe Machine handles shafts, bushes, sleeves, discs, and other title-specific round parts through a layout intended for turning rotational components and producing faces, diameters, bores, or threads. It rotates a securely held workpiece while a guided tool removes material, with rigid workholding with controlled tool travel.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
High Precision Lathe Machine
Machine Purpose
The High Precision Lathe Machine is a purpose-built unit for turning rotational components and producing faces, diameters, bores, or threads. Its layout is organised around shafts, bushes, sleeves, discs, and other title-specific round parts, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it rotates a securely held workpiece while a guided tool removes material. The design therefore prioritises rigid workholding with controlled tool travel; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Natural settings include machine shops, repair workshops, tool rooms, and component plants. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the High Precision Lathe Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PGT-5 | PGT-7 | PGT-9 | PGT-10 | PGT-12 |
| Length of Bed (With Head Stock) | 5.5 Feet | 7 Feet | 9 Feet | 10 Feet | 12 Feet |
| 1675 MM | 2130 MM | 2740 MM | 3048 MM | 3658 MM | |
| A.B.C | 550 MM | 1000 MM | 1560 MM | 1860 MM | 2450 MM |
| Weight (Approx) | 1100 KG | 1300 KG | 1500 KG | 1900 KG | 2200 KG |
| Floor-L | 1980 ("78") | 2425 (95") | 3050 (120") | 3350 (132") | 3950 (156") |
| Space-W | 1250 (49") | 1250 (49") | 1250 (49") | 1250 (49") | 1250 (49") |
| Occupied | 1370 (54") | 1370 (54") | 1370 (54") | 1370 (54") | 1370 (54") |
| Center Height | 10" | 10" | 12" | 13" | 15" |
| Bed Width | 13" | 13" | 15" | 15" | 18" |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Videos
Product Videos
Applications
Applications
Power Plants
Steel & Paper Mills
Tool Rooms
Fasteners Industries
Fabrication Workshops
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Sugar Mills
Textile Industries
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
What does a High Precision Lathe Machine do?
The High Precision Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the High Precision Lathe Machine complete its working cycle?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a High Precision Lathe Machine?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a High Precision Lathe Machine?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the High Precision Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a High Precision Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a High Precision Lathe Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a High Precision Lathe Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title High Precision Lathe Machine.
