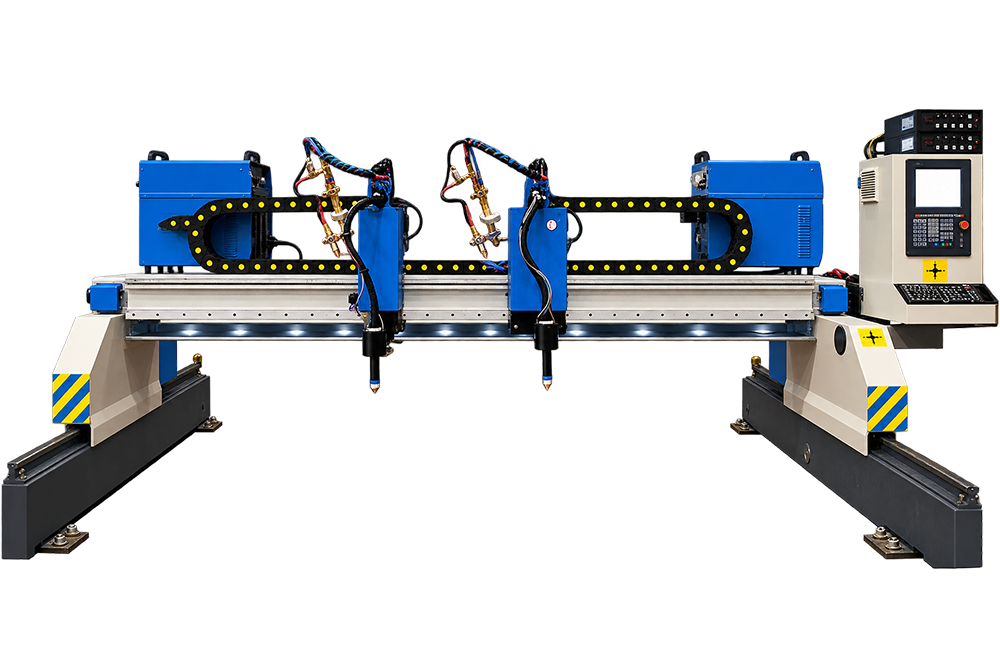

Heavy Gantry Type CNC Cutting Machine
The Heavy Gantry Type CNC Cutting Machine handles the stock or component identified by the title through a layout intended for separating material into required sizes or profiles. Typical users include material preparation, fabrication, maintenance, and production, where stable work support close to the cutting area is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Heavy Gantry Type CNC Cutting Machine
Machine Purpose
The Heavy Gantry Type CNC Cutting Machine provides a dedicated method of separating material into required sizes or profiles. Rather than acting as unrelated general equipment, it brings the working elements together around the stock or component identified by the title.
How It Works
Its cycle is based on the way it guides a suitable cutting tool through securely supported work. The design therefore prioritises stable work support close to the cutting area; actual output still depends on the chosen model, tool, workpiece, and operating method. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
Natural settings include material preparation, fabrication, maintenance, and production. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required Heavy Gantry Type CNC Cutting Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Dimension | Rail Length | Cutting Area |
| TLP1530-L | 1250x1150x2350x3100x50 mm | 4000 mm | 1500x3000 mm |
| TLP1563-L | 1250x1150x2350x3100x50 mm | 8000 mm | 1500x6300 mm |
| TLP2063-L | 1250x1150x2850x3600x50 mm | 8000 mm | 2000x6300 mm |
| TLP2563-H | 1350x1400x3550x4520x100 mm | 8000 mm | 2500x6300 mm |
| TLP2512-H | 1350x1400x3550x4320x100 mm | 14000 mm | 2500x12000 mm |
| TLP3063-H | 1350x1400x4050x4820x100 mm | 8000 mm | 3000x6300 mm |
| TLP3012-H | 1350x1400x3550x4520x100 mm | 14000 mm | 3000x12000 mm |
| Torch | 1 Oxy Fuel Torch | ||
| 1 Plasma Torch | |||
| Torch Quantity Can be Customized as per requirement | |||
| Cutting Thickness | Plasma : 1-30 mm depends on Plasma Cutting Capacity | ||
| Flame : 5-200 mm by Oxy Flame Cutting | |||
| Drive Mode | Dual Drive in Y-Axis | ||
| CNC System | FLMC-Fangling CNC Cutting Controller | ||
| Nesting Software | Fastcam or FLCNC |
