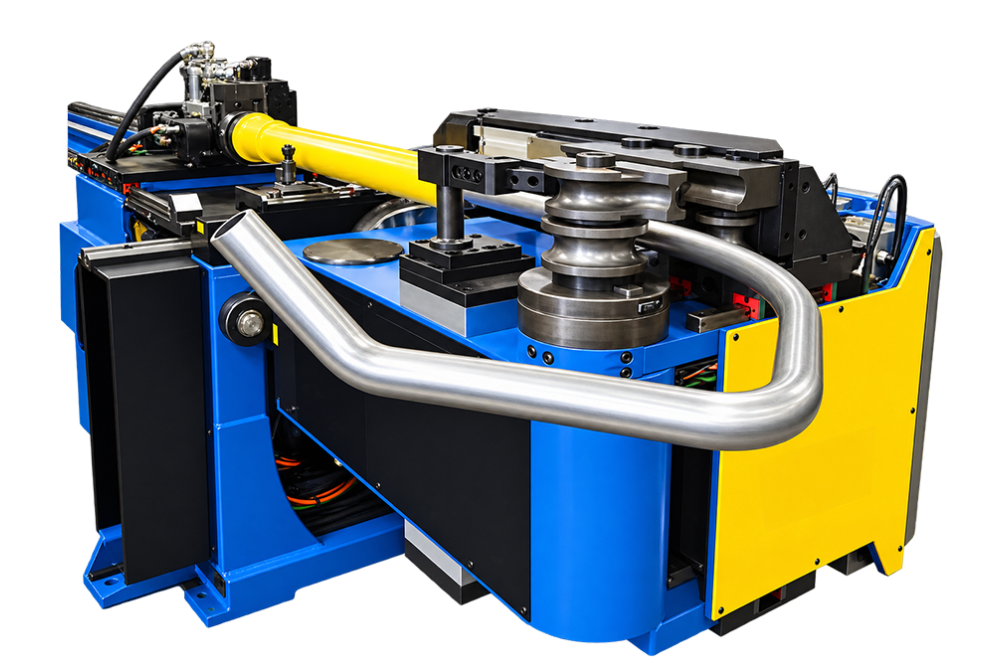

Heavy Duty Pipe Tube Bending Machine
Built around forming sheet, plate, pipe, bar, or sections into required shapes, the Heavy Duty Pipe Tube Bending Machine provides a dedicated working arrangement. Its dedicated tooling that supports material during forming suits structural fabrication, sheet-metal shops, and component production. The heavy-duty designation indicates demanding use, although capacity must be verified.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Heavy Duty Pipe Tube Bending Machine
Machine Purpose
The Heavy Duty Pipe Tube Bending Machine provides a dedicated method of forming sheet, plate, pipe, bar, or sections into required shapes. Rather than acting as unrelated general equipment, it brings the working elements together around the metal stock identified by the machine title.
How It Works
A typical cycle begins with locating the job correctly, after which the machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports repeat work without replacing the need for trained operation. The heavy-duty designation indicates demanding use, although capacity must be verified.
Industrial Applications
The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Heavy Duty Pipe Tube Bending Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL NO. | PHDPB 32 | PHDPB 45 | PHDPB 65 | PHDPB 100 | PHDPB 150 | |
|
Max. Capacity (Dia .X Thickness) |
Max. mm Min. |
32 X 2.0 6.00 |
45 X 3.0 12.00 |
65 X 6.0 20.00 |
114 X 7.0 25.00 |
168.3 X 7 50.00 |
| Bend Radius CLR* |
Max. mm Min. |
120 20.0 |
150 25.0 |
350 30.0 |
350 40.0 |
450 75 |
|
Min. Bend Radius (In terms of D*) |
1.5 D | 1.5 D | 1.5 D | 1.5 D |
1.5 D (upto 100mm dia pipe) 2.5 D above 100mm dia pipe) |
|
| Standard Length over Mandrel Extra Length (available on request) | Mtrs. | 2.01 | 2.01 | 2.01 | 4.01 | 4.01 |
| Bend Angle Range | Deg | 5-180 | 5-180 | 5-180 | 5-180 | 5-180 |
| Bending Direction | PCB Cards & Boards | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
| Bending Speed | Deg/Sec. | 60 | 50 | 40 | 30 | 15 |
| Indicative Prodution Rate (Approx.) | 90 Deg Bends/Hr | 150 | 150 | 125 | 100 | 30 |
| Bend Angle Accuracy | Deg | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 | +- 0.25 |
| Motor Capacity | HP | 5 | 7.5 | 10 | 20 | 30 |
| Weight (Approx.) | Tonners | 1 | 1.4 | 2 | 4 | 8 |
FAQs
Frequently Asked Questions
Which operation is the Heavy Duty Pipe Tube Bending Machine designed to perform?
The Heavy Duty Pipe Tube Bending Machine is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Heavy Duty Pipe Tube Bending Machine work?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Heavy Duty Pipe Tube Bending Machine?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Heavy Duty Pipe Tube Bending Machine?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Heavy Duty Pipe Tube Bending Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Heavy Duty Pipe Tube Bending Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Heavy Duty Pipe Tube Bending Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Heavy Duty Pipe Tube Bending Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Heavy Duty Pipe Tube Bending Machine.
When is design arrangement useful on a Heavy Duty Pipe Tube Bending Machine?
The heavy-duty designation indicates demanding use, although capacity must be verified. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
