Drilling Machines

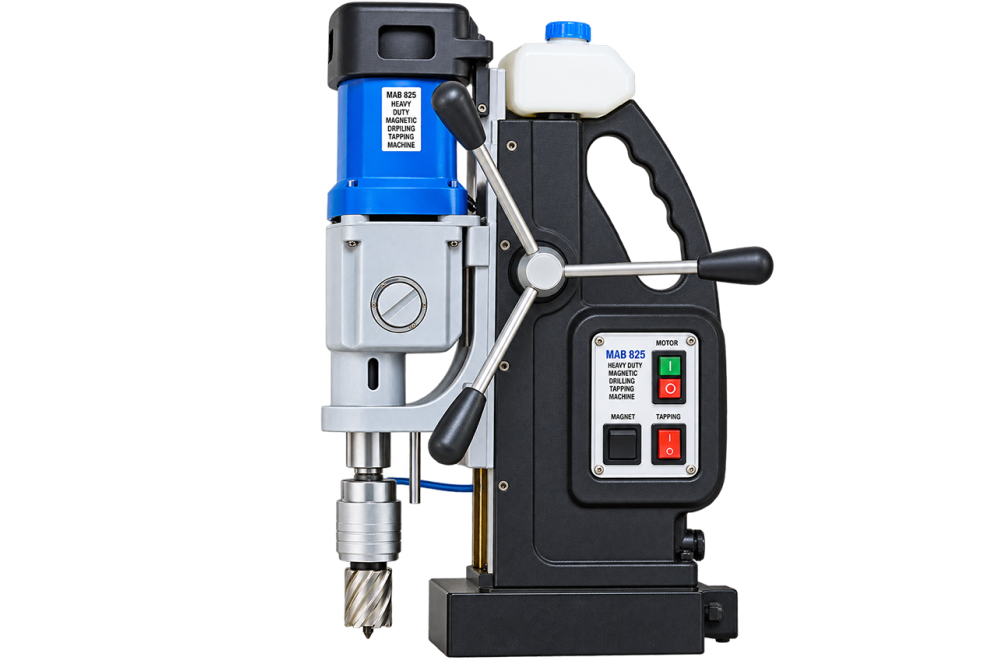

Heavy Duty Magnetic Drilling Tapping Machine MAB 825
Built around drilling or tapping installed steel structures, the Heavy Duty Magnetic Drilling Tapping Machine MAB 825 provides a dedicated working arrangement. Its portable mounting where work cannot be moved to a fixed drill suits site fabrication, bridge work, maintenance, and shipyards. The heavy-duty designation indicates demanding use, although capacity must be verified.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Heavy Duty Magnetic Drilling Tapping Machine MAB 825
Machine Purpose
The Heavy Duty Magnetic Drilling Tapping Machine MAB 825 provides a dedicated method of drilling or tapping installed steel structures. Rather than acting as unrelated general equipment, it brings the working elements together around plates, beams, structures, and large fabricated assemblies.
How It Works
Its cycle is based on the way it anchors magnetically to ferrous work while its spindle feeds the cutter. The design therefore prioritises portable mounting where work cannot be moved to a fixed drill; actual output still depends on the chosen model, tool, workpiece, and operating method. The heavy-duty designation indicates demanding use, although capacity must be verified.
Industrial Applications
The machine is applicable to site fabrication, bridge work, maintenance, and shipyards. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Heavy Duty Magnetic Drilling Tapping Machine MAB 825 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| EAN | TPL-825 |
|---|---|
| Cutting Depth | 110 mm |
| Twist Drilling | 31.75 mm |
| Tapping | M30 |
| Reaming | 31.75 mm |
| Motor Output | 1800 Watts |
| Stroke | 255 mm |
| Magnet Size | 110 x 220 x 54 mm |
| Magnet Power | 19500 N |
| Weight | 25 Kg. |
| Morse Taper | MT3 |
| Speed Gears | 4 |
| Speed 1 | 40 – 110 min-1 |
| Speed 2 | 65 – 175 min-1 |
| Speed 3 | 140 – 360 min-1 |
| Speed 4 | 210 – 550 min-1 |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 Carry case on wheels, 1 drill drift & 1 taper drift, 1 Industrial arbor MT3, 1 KEYLESS drill chuck, 1 Operating manual, 1 Safety chain, 4 ejector pins |
| Core Drilling | 100 mm |
| Countersink | 50 mm |
Applications
Applications
Steel fabrication and erection
Shipbuilding and offshore industries
Heavy machinery maintenance
Bridge construction
Railway track construction
Boiler manufacturing
Pipeline manufacturing
Tank manufacturing
FAQs
Frequently Asked Questions
What does a Heavy Duty Magnetic Drilling Tapping Machine MAB 825 do?
The Heavy Duty Magnetic Drilling Tapping Machine MAB 825 is intended for drilling or tapping installed steel structures. It is arranged around plates, beams, structures, and large fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Heavy Duty Magnetic Drilling Tapping Machine MAB 825 complete its working cycle?
The machine anchors magnetically to ferrous work while its spindle feeds the cutter. Its portable mounting where work cannot be moved to a fixed drill supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Heavy Duty Magnetic Drilling Tapping Machine MAB 825?
It is primarily associated with plates, beams, structures, and large fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Heavy Duty Magnetic Drilling Tapping Machine MAB 825?
Typical users include site fabrication, bridge work, maintenance, and shipyards. In these settings, the Heavy Duty Magnetic Drilling Tapping Machine MAB 825 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Heavy Duty Magnetic Drilling Tapping Machine MAB 825?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Heavy Duty Magnetic Drilling Tapping Machine MAB 825 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Heavy Duty Magnetic Drilling Tapping Machine MAB 825?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Heavy Duty Magnetic Drilling Tapping Machine MAB 825.
When is design arrangement useful on a Heavy Duty Magnetic Drilling Tapping Machine MAB 825?
The heavy-duty designation indicates demanding use, although capacity must be verified. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
