Heavy Duty Hydraulic Scrap Gantry Shearing Machine
The Heavy Duty Hydraulic Scrap Gantry Shearing Machine handles sheet blanks, plate, bars, or title-specific scrap through a layout intended for cutting sheet, plate, sections, or scrap without conventional sawing. It passes a moving blade through material supported at the cutting zone, with guided blade movement and stable material support. Hydraulic actuation provides progressive force and controlled movement. The heavy-duty…
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

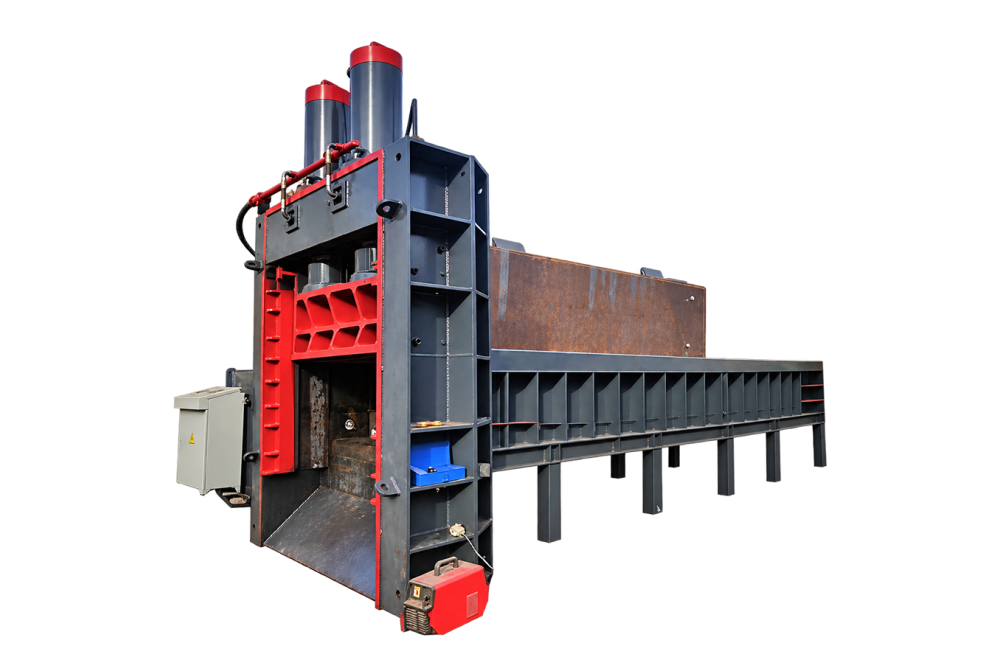

Heavy Duty Hydraulic Scrap Gantry Shearing Machine
Machine Purpose
The Heavy Duty Hydraulic Scrap Gantry Shearing Machine is a purpose-built unit for cutting sheet, plate, sections, or scrap without conventional sawing. Its layout is organised around sheet blanks, plate, bars, or title-specific scrap, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it passes a moving blade through material supported at the cutting zone. The design therefore prioritises guided blade movement and stable material support; actual output still depends on the chosen model, tool, workpiece, and operating method. Hydraulic actuation provides progressive force and controlled movement. The heavy-duty designation indicates demanding use, although capacity must be verified.
Industrial Applications
Likely users are found in fabrication shops, recycling yards, and metal processors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within scrap bailing machines can differ in arrangement and capability. The required Heavy Duty Hydraulic Scrap Gantry Shearing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Section | Specification | PHDGSM - 1000 | PHDGSM - 1250 | PHDGSM - 1500 |
|---|---|---|---|---|
| Cut Oil Bed | Journey | 1000mm | 1200mm | 1200mm |
| Maximum thrust | 5000KNx2 | 6300KNx2 | 7500KNx2 | |
| Quantity | 2 | 2 | 2 | |
| Pressure Cylinder | Model | YG280/200 | YG360/200 | YG400/280 |
| Journey | 1200mm | 1400mm | 1400mm | |
| Maximum thrust | 1600KNx2 | 2500KNx3 | 2500KNx3 | |
| Quantity | 2 | 3 | 3 | |
| Box size | 8000x2000x1000mm | 8000x2200x1200mm | 8000*2200*1200mm | |
| Maximum Working Pressure Of Hydraulic System | 25Mpa | 25Mpa | 25Mpa | |
| Cutting width | 2000mm | 2200mm | 2200mm | |
| Shear angle | 9 Degree | 9 Degree | 9 Degree | |
| Shear speed | 3-4 times/minute | 3-4 times/minute | 3-4 times/minute | |
| Cut length | 300mm-600mm square steel, 180mm*180mm round steel, 200mm steel plate, 90mm*1800mm steel plate | 300mm-600mm square steel, 200mm*200mm round steel, 220mm steel plate, 110mm*2000mm steel plate | 300mm-600mm square steel, 200mm*200mm round steel, 220mm steel plate, 110mm*2000mm steel plate | |
| Cut opening | 750mm-1100mm | 750mm-1200mm | 750mm-1200mm | |
| Motor | Equipment motor total power | 315KW | 220KW | 275KW |
| Model | Y250M-4 | Y250M-4 | Y250M-4 | |
| Quantity | 7 units | 4 units | 5 units | |
| Oil Pump | Model | 250HY/A7V160/HY350 | 250HY/A7V160/HY350 | 250HY/A7V160/HY350 |
| Flow | 250ml/r | 250ml/r | 250ml/r | |
| Rated pressure | 31.5Mpa | 31.5Mpa | 31.5Mpa | |
| Quantity | 7 | 8 | 10 | |
| Cooling method | Panel cooling or air conditioning refrigeration | Plate cooling or forced cooling by air conditioning | Plate cooling or forced cooling by air conditioning | |
| Equipment operation mode | PLC manual/automatic integration | PLC manual/automatic integration | PLC manual/automatic integration |
Short Videos

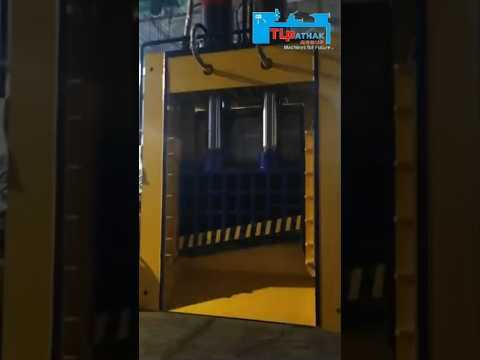

YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a Heavy Duty Hydraulic Scrap Gantry Shearing Machine used in industrial work?
The Heavy Duty Hydraulic Scrap Gantry Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Heavy Duty Hydraulic Scrap Gantry Shearing Machine?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Heavy Duty Hydraulic Scrap Gantry Shearing Machine handle?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Heavy Duty Hydraulic Scrap Gantry Shearing Machine typically installed?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the Heavy Duty Hydraulic Scrap Gantry Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Heavy Duty Hydraulic Scrap Gantry Shearing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Heavy Duty Hydraulic Scrap Gantry Shearing Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Heavy Duty Hydraulic Scrap Gantry Shearing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Heavy Duty Hydraulic Scrap Gantry Shearing Machine.
What is the benefit of hydraulic actuation on this Heavy Duty Hydraulic Scrap Gantry Shearing Machine?
Hydraulic actuation provides progressive force and controlled movement. The heavy-duty designation indicates demanding use, although capacity must be verified. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
