Lathe Machines

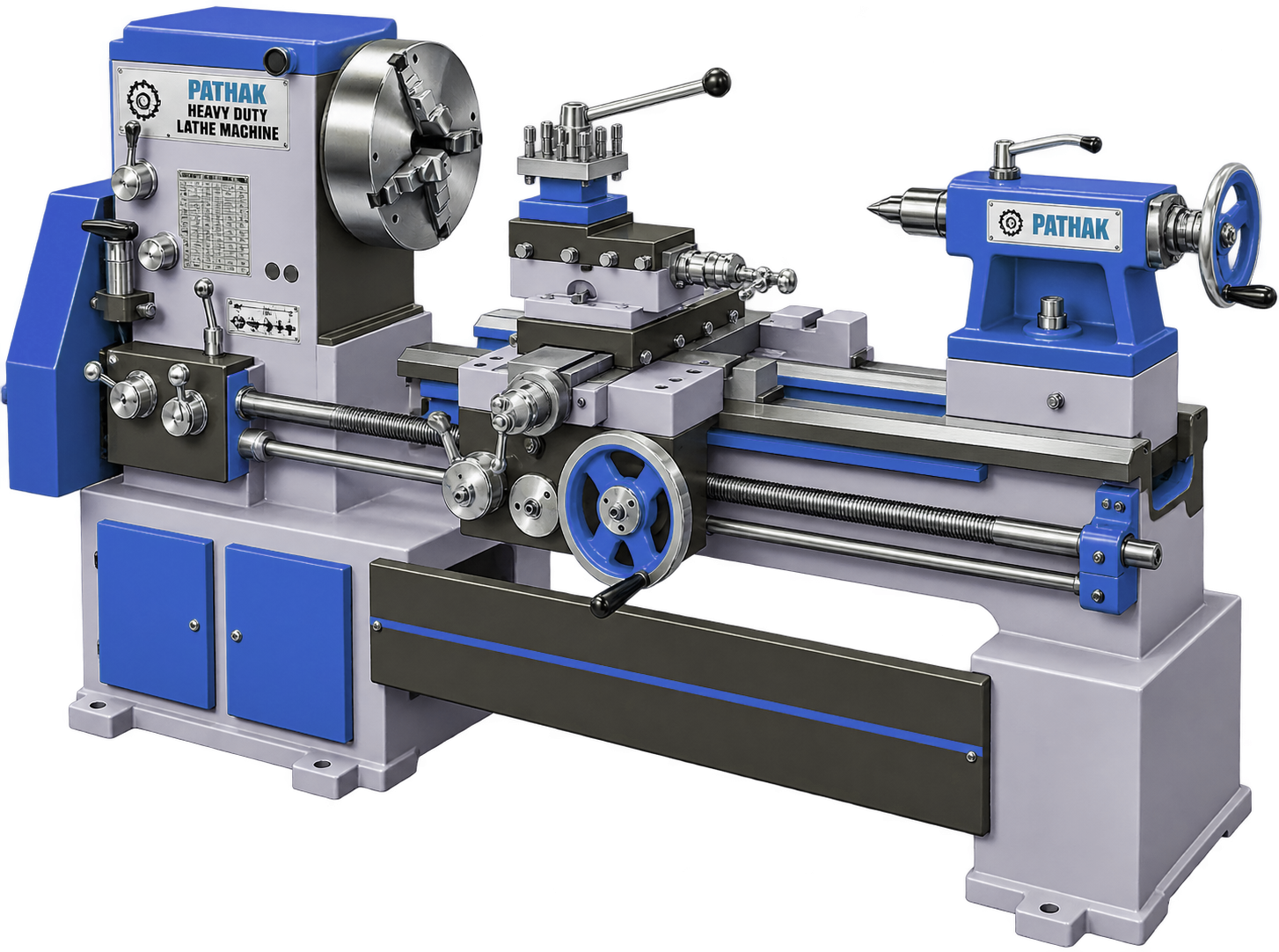

Heavy Duty Cone Pulley Lathe Machine
The Heavy Duty Cone Pulley Lathe Machine handles shafts, bushes, sleeves, discs, and other title-specific round parts through a layout intended for turning rotational components and producing faces, diameters, bores, or threads. Typical users include machine shops, repair workshops, tool rooms, and component plants, where rigid workholding with controlled tool travel is valuable. The heavy-duty designation indicates demanding use, although…
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Heavy Duty Cone Pulley Lathe Machine
Machine Purpose
The Heavy Duty Cone Pulley Lathe Machine provides a dedicated method of turning rotational components and producing faces, diameters, bores, or threads. Rather than acting as unrelated general equipment, it brings the working elements together around shafts, bushes, sleeves, discs, and other title-specific round parts.
How It Works
In operation, it rotates a securely held workpiece while a guided tool removes material. The practical focus is rigid workholding with controlled tool travel. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. The heavy-duty designation indicates demanding use, although capacity must be verified.
Industrial Applications
The machine is applicable to machine shops, repair workshops, tool rooms, and component plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Heavy Duty Cone Pulley Lathe Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | ST-4 | ST-6 | SMT-8 | DK-10 |
| Length of Bed (With Head Stock) | 4'-6" | 6'-0" | 8'-0" | 10'-10" |
| Width of Bed | 12" | 14" | 16" | 18" |
| Centre of BED | 10" | 12" | 14" | 16" |
| Width of gap | 5" | 9" | 12" | 14" |
| Swing over saddle (dia) | 10" | 12" | 14" | 16" |
| Swing in gap (dia) | 28" | 38" | 41" | 47" |
| Admit between centers | 2'-3" | 3'-0" | 4'-6" | 5'-8" |
| Hollow Spindle | 1.3/4" | 2.1/8" | 3.1/8" | 3.5/8" |
| No. Of Spindle Speeds | 6 | 6 | 6 | 6 |
| Dia. Of Leedscrew | 1.3/8" | 1.5/8" | 1.5/8" | 1.5/5" |
| Dia. Of Feedshaft | 1" | 1.1/8" | 1.1/8" | 1.3/8" |
| Power Require | 1 H.P | 2 H.P | 3H.P | 3 H.P |
| R.P.M of Motor (Aprox.) | 1440 | 1440 | 960 | 960 |
| NETT Weight (Aprox.) | 800 KGS | 1200 KGS | 1800 KGS | 2300 KGS |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder
Videos
Product Videos
Applications
Applications
Ship Building
Power Plants
Steel & Paper Mills
Mining Industries
Textile Industries
Tool Rooms
Educational Institutes
Fasteners Industries
Fabrication Workshops
Sugar Mills
Metal Fabrication Shops
Automotive Industry
Aerospace Industry
General Sheet Metal Cutting
Appliance Manufacturing
Shaft turning and thread cutting
Heavy Engineering
Precision turning of small parts
DIY metalworking and model engineering
Used for heavy and long workpieces in large scale industries
Turning, facing and taper turning of large diameter shafts
FAQs
Frequently Asked Questions
What does a Heavy Duty Cone Pulley Lathe Machine do?
The Heavy Duty Cone Pulley Lathe Machine is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Heavy Duty Cone Pulley Lathe Machine complete its working cycle?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Heavy Duty Cone Pulley Lathe Machine?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Heavy Duty Cone Pulley Lathe Machine?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Heavy Duty Cone Pulley Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Heavy Duty Cone Pulley Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Heavy Duty Cone Pulley Lathe Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Heavy Duty Cone Pulley Lathe Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Heavy Duty Cone Pulley Lathe Machine.
What is the benefit of design arrangement on this Heavy Duty Cone Pulley Lathe Machine?
The heavy-duty designation indicates demanding use, although capacity must be verified. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
