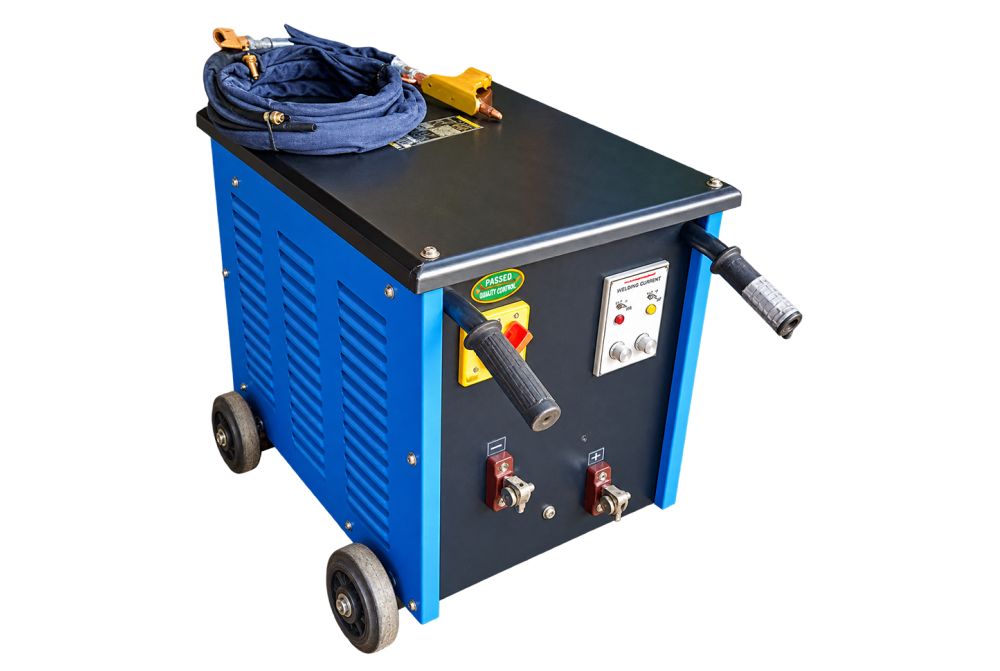

Hand Spot Welding
The Hand Spot Welding is designed for joining overlapping sheet parts at localised points. Its combined electrode pressure and resistance heating suits automotive bodies, cabinets, appliances, and battery work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Hand Spot Welding
Machine Purpose
Used for joining overlapping sheet parts at localised points, the Hand Spot Welding addresses a distinct stage of industrial work. It accommodates sheet assemblies, wire products, and small components and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to automotive bodies, cabinets, appliances, and battery work. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it clamps sheets between electrodes and passes current through the joint. The practical focus is combined electrode pressure and resistance heating. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Machines within welding equipments can differ in arrangement and capability. The required Hand Spot Welding should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PHSW-16 |
| Output KVA | 16 |
| Input primary voltage (AC) | 415V (2-Phase) |
| Rated frequency (HZS) | 50/60 |
| No-load voltage (Max OCV) (Volt) | 9 |
| Primary line current (Max (AMP) | 55 |
| Dimension (approx) (H*L*W) (MM) | 625+510+800 |
| Weight (without gun and cable) (approx kg) | 104 |
| Gun & cable weight (approx Kg) | 9.5 |
| Output work cable with water cooling length (Mtr) | 3 |
| Earth cable with water cable length (Mtr) | 3 |
| Cooling | Natural |
| Insulation Class | A |
| Time control (KA) | Solid stage electronic |
| Output current selection (way) | 8 Step |
| Time control (step) | Cycle / second |
