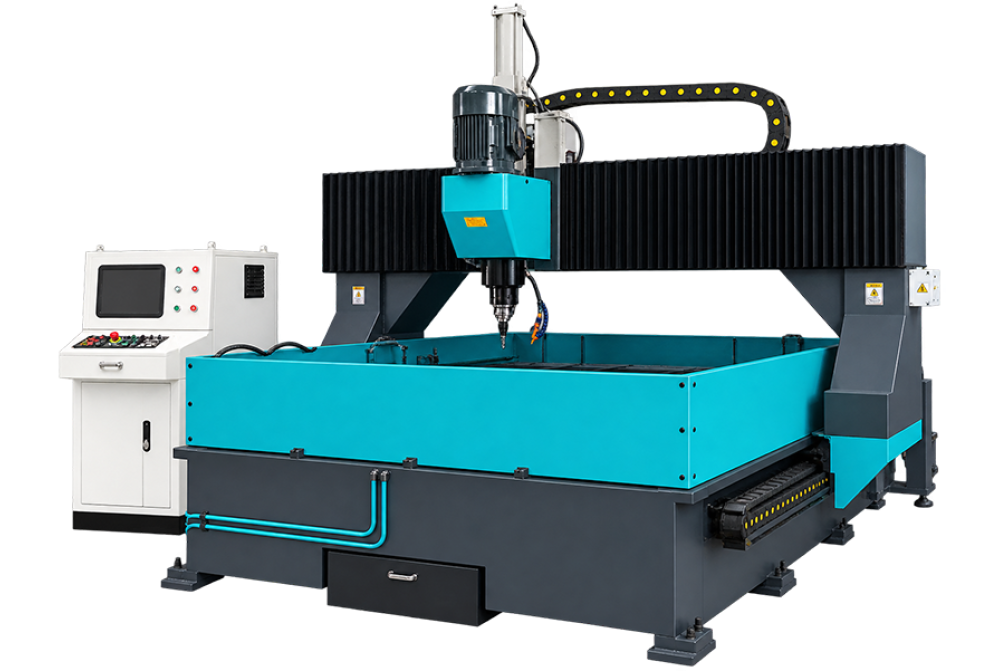

Gantry Type CNC Drilling Machine
For work involving metal parts, plates, castings, and fabricated assemblies, the Gantry Type CNC Drilling Machine offers a process-specific solution. The operating method supports engineering workshops, maintenance departments, and production floors and centres on stable spindle guidance and practical feed control. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Gantry Type CNC Drilling Machine
Machine Purpose
The Gantry Type CNC Drilling Machine provides a dedicated method of creating positioned holes and related hole-finishing work. Rather than acting as unrelated general equipment, it brings the working elements together around metal parts, plates, castings, and fabricated assemblies.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to engineering workshops, maintenance departments, and production floors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Gantry Type CNC Drilling Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLP-PD-2016 | TLP-PD-2016/2 | TLP-PD-3016 | TLP-PD-3016/2 |
| Processing Scope | 2000x1600 mm | 2000x1600 mm | 3000x1600 mm | 3000x1600 mm |
| Stack Thickness | 100 mm | |||
| Spindle Number | 1 | 2 | 1 | 2 |
| Spindle Model | Morse 4 # Taper Hole | |||
| Spindle Rotating Speed (r/min) | 120-560 | |||
| Feed Motor | Hydraulic Automatic Stroke Drilling Power Head | |||
| Feed Stock | 180 mm | |||
| Drilling Diameter | 12-5 (12-63 optional) mm | |||
| Main Motor Power (KW) | 5.5/7.5 (optional) | 5.5x2/7.5x2 (optional) | 5.5/7.5 (optional) | 5.5x2/7.5x2 (optional) |
| Drilling Precision | +- 0.5 mm | |||
| Re-Positioning Precision | +- 0.2 mm | |||
| Number of Clamping Cylinders | 12 | |||
| Clamping Force | 7.5 KN | |||
| Clamping System | Double Side Button Control of Gantry | |||
| Hydraulic Pump Pressure | 6 Mpa | |||
| Control System | PLC+IPC | |||
| Size | 3500x2650x2870 mm | |||
Applications
Applications
Marine and shipbuilding industries
Bridge and tower construction
Wind turbine components
Boiler and pressure vessel manufacturing
Steel structure fabrication
FAQs
Frequently Asked Questions
What does a Gantry Type CNC Drilling Machine do?
The Gantry Type CNC Drilling Machine is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Gantry Type CNC Drilling Machine complete its working cycle?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Gantry Type CNC Drilling Machine?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Gantry Type CNC Drilling Machine?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the Gantry Type CNC Drilling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Gantry Type CNC Drilling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Gantry Type CNC Drilling Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Gantry Type CNC Drilling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Gantry Type CNC Drilling Machine.
How does CNC control affect the Gantry Type CNC Drilling Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
