Sheet Metal Machines

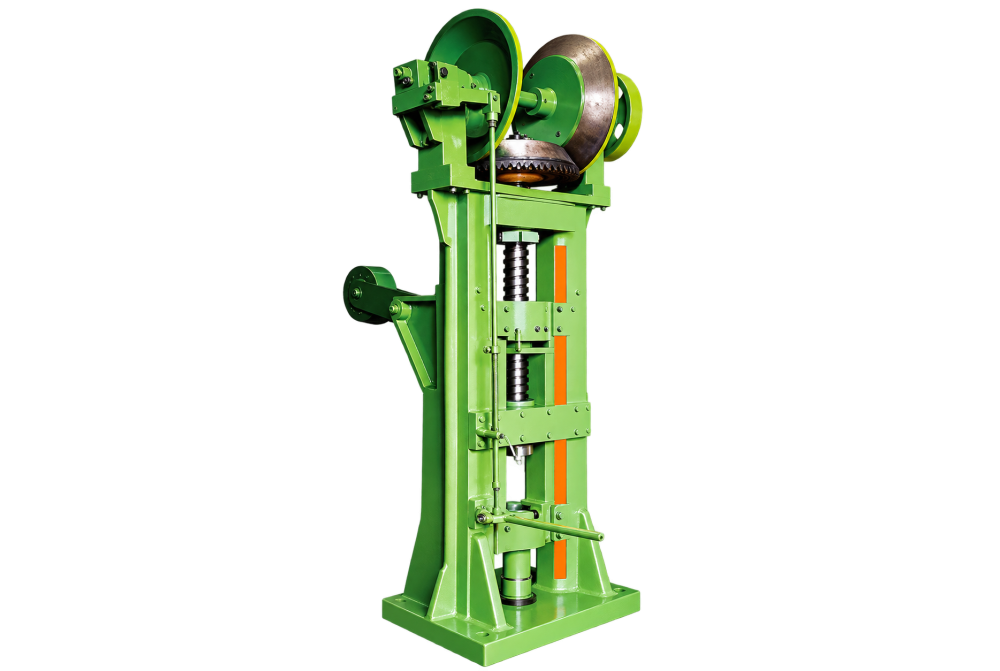

Friction Screw Press Up Stroke
The Friction Screw Press Up Stroke is designed for applying controlled force for forming, fitting, punching, or compaction. Its rigid reaction support around the working zone suits fabrication, assembly, maintenance, and production workshops.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Friction Screw Press Up Stroke
Machine Purpose
Used for applying controlled force for forming, fitting, punching, or compaction, the Friction Screw Press Up Stroke addresses a distinct stage of industrial work. It accommodates components and materials named by the product title and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports repeat work without replacing the need for trained operation.
Selection Considerations
When comparing versions of the Friction Screw Press Up Stroke, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Type | Nominal Capacity |
Dia of Screw | Stroke | Slide Table | Places/Hour | Max.Dia of Bolt capacity Forging | Max.Length of bolt capable forging | Foundation | Pulley Size | Power Required/H.P.(Approx.)Motor R.P.M. |
| Tons | mm/inch | mm/inch | mm/inch |
-
|
mm/inch
|
mm/inch | mm/inch | mm/inch | H.P./R.P.M | |
| VFP | 50 | 85/3-1/4 | 300/12 | 200/8 | 800-1200 | 12/-1/2 | 250/10 | 840-585 | 100/4B | 3/1440 |
| VFP | 100 | 110/4-1/4 | 400/16 | 225/9 | 600-1000 | 20/-3/4 | 300/12 | 930x610 | 100/4B | 7.5/1440 |
| VFP | 125 | 115/5-1/4 | 450/18 | 225/9 | 500-900 | 22/-7/8 | 400/16 | 940x710 | 100/4B | 10/1440 |
| VFP | 150 | 130/5-1/8 | 500/20 | 250/10 | 400-700 | 32/1-1/4 | 450/18 | 1080x750 | 125/5C | 15/1440 |
| VFP | 200 | 135/5-3/8 | 550/22 | 275/11 | 300-600 | 38/1-1/2 | 500/20 | 1115x790 | 125/5C | 20/1440 |
| VFP | 300 | 155/6-1/8 | 600/24 | 275/11 | 200-500 | 50/2 | 600/24 | 1200x860 | 200/8C | 25/960 |
| VFP | 400 | 175/7 | 650/26 | 300/12 | 150-300 | 63/2-1/2 | 650/26 | 1320x1000 | 200/8C | 30/960 |
| VFP | 500 | 200/8 | 700/28 | 335/13 | 80-250 | 75/3 | 700/28 | 1470x1050 | 200/8C | 40/960 |
| VFP | 630 | 225/9 | 760/30 | 355/14 | 70-225 | 90/3-1/2 | 760/30 | 1525x1100 | 200/8C | 50/960 |
| VFP | 800 | 250/10 | 810/32 | 380/15 | 60-200 | 100/4 | 810/32 | 1600x1150 | 200/8C | 60/960 |
| VFP | 1000 | 275/11 | 865/34 | 405/16 | 50-150 | 115/4-1/2 | 860/34 | 1750x1250 | 200/8C | 70/960 |
FAQs
Frequently Asked Questions
What does a Friction Screw Press Up Stroke do?
The Friction Screw Press Up Stroke is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Friction Screw Press Up Stroke complete its working cycle?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Friction Screw Press Up Stroke?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Friction Screw Press Up Stroke?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Friction Screw Press Up Stroke may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Friction Screw Press Up Stroke?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Friction Screw Press Up Stroke need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Friction Screw Press Up Stroke?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Friction Screw Press Up Stroke.
