Friction Screw Press Down Stroke
Sheet Metal Machines

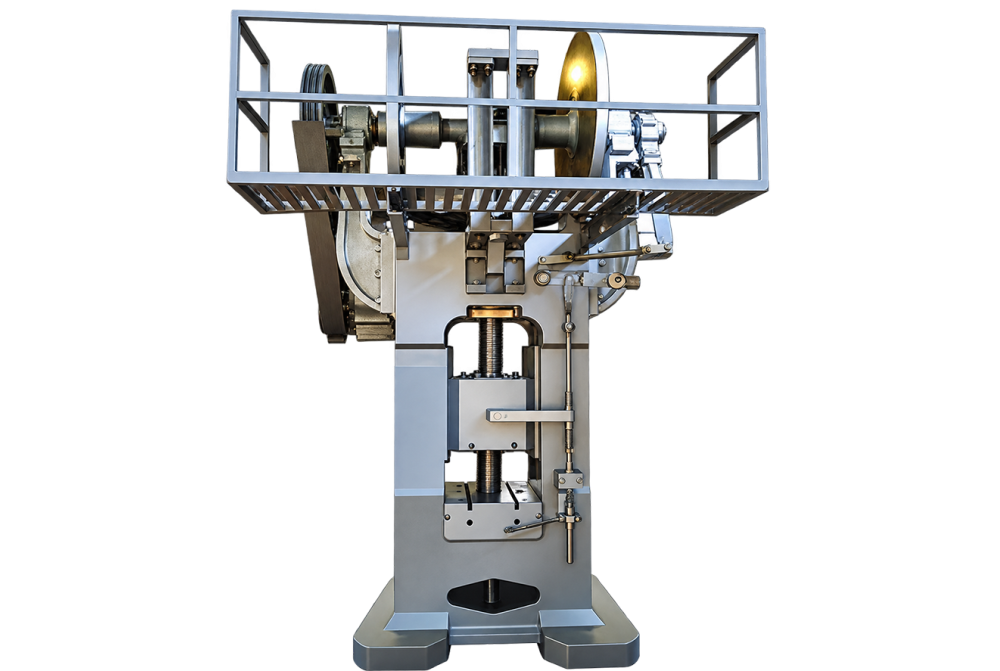

Friction Screw Press Down Stroke

Built around applying controlled force for forming, fitting, punching, or compaction, the Friction Screw Press Down Stroke provides a dedicated working arrangement. Typical users include fabrication, assembly, maintenance, and production workshops, where rigid reaction support around the working zone is valuable.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

Friction Screw Press Down Stroke

Machine Purpose

For facilities needing applying controlled force for forming, fitting, punching, or compaction, the Friction Screw Press Down Stroke offers a process-specific workstation. Its arrangement supports components and materials named by the product title while keeping the important operating area accessible.

Industrial Applications

Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.

How It Works

In operation, it advances a guided working member against supported material. The practical focus is rigid reaction support around the working zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.

Selection Considerations

When comparing versions of the Friction Screw Press Down Stroke, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

Type Nominal Capacity Dia of Screw Stroke
of Ram		 Number
of Strokes		 Size of Table Max.Distance B/W Table & Ram Min.Distance
B/W Table & Ram 		Dia of Hole in the table Dia of Hole in the Ram Pulley
Size		 Power
Required
  Tons mm/inch mm/inch Per mintue mm/inch mm/inch mm/inch mm/inch mm/inch mm/inch H.P./R.P.M
FSP 30 75/3 150/6 40 325x350/13x14 300/12 175/7 75/3 38/1-1/2 100/4B 3/1440
FSP 50 115/4-1/4 175/7 30 325x400/13x16-1/2 325/13 175/7 80/3-1/4 38/1-1/2 100/4B 5/1440
FSP 100 132/5-1/4 250/10 25 430x470/17x18-1/2 450/18 200/8 100/4 50/2 100/4B 10/1440
FSP 150 155/6-1/4 275/11 20 450x525/18x21 475/19 225/9 118/4-1/2 64/2-1/2 125/5C 15/1440
FSP 200 165/6-1/2 300/12-3/8 18 500x540/20x21-1/2 500/20 250/10 125/5 64/2-1/2 125/5C 20/960
FSP 300 200/8 350/14 16 600x600/24x24 580/23 280/11 140/5-1/2 64/2-1/2 175/7C 25/960
FSP 400 225/9-1/2 375/15 14 700x700/28x28 600/24 300/12 150/6 89/3-1/2 175/7C 30/960
FSP 500 255/10 405/16 12 760x760/30x30 625/25 325/13 150/6 118/4-1/2 175/7C 40/960
FSP 630 280/11 432/17 10 810x810/32x32 660/26 355/14 150/6 118/4-1/2 175/7C 50/960
FSP 800 292/11-1/2 457/18 8 865x865/34x34 710/28 380/15 165/6-1/2 125/5 175/7C 60/960
FSP 1000 307/12-1/2 507/20 6 915x915/36x36
-
-
-
-
-
-
FAQs

Frequently Asked Questions

Why is a Friction Screw Press Down Stroke used in industrial work?
The Friction Screw Press Down Stroke is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Friction Screw Press Down Stroke?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Friction Screw Press Down Stroke handle?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Friction Screw Press Down Stroke typically installed?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Friction Screw Press Down Stroke may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Friction Screw Press Down Stroke?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Friction Screw Press Down Stroke?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Friction Screw Press Down Stroke?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Friction Screw Press Down Stroke.
