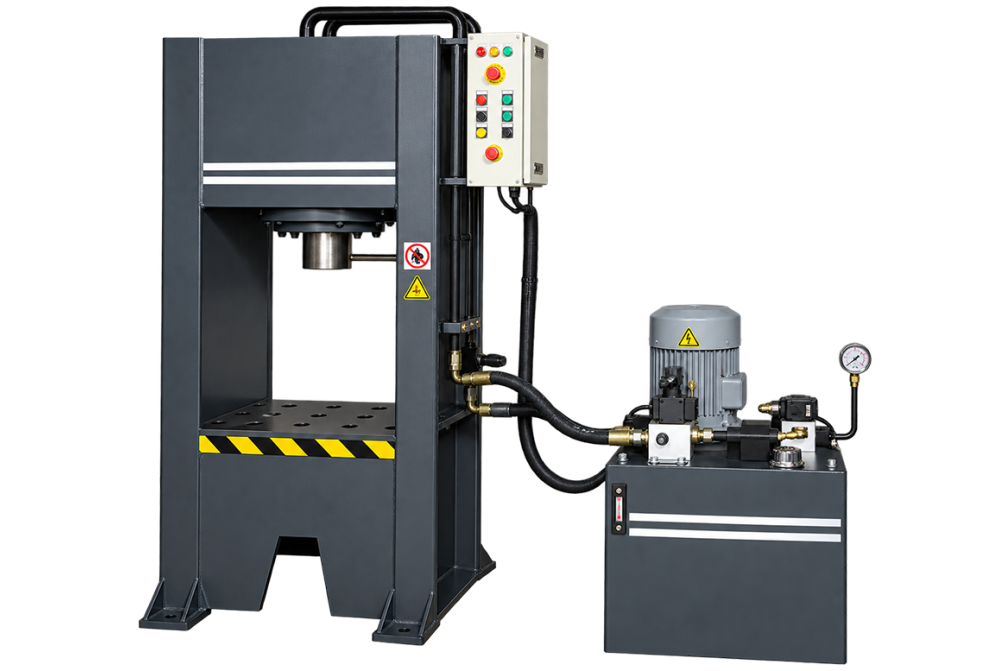

Fix Frame Press Machine Ram Type
The Fix Frame Press Machine Ram Type handles components and materials named by the product title through a layout intended for applying controlled force for forming, fitting, punching, or compaction. Typical users include fabrication, assembly, maintenance, and production workshops, where rigid reaction support around the working zone is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Fix Frame Press Machine Ram Type
Machine Purpose
The Fix Frame Press Machine Ram Type provides a dedicated method of applying controlled force for forming, fitting, punching, or compaction. Rather than acting as unrelated general equipment, it brings the working elements together around components and materials named by the product title.
How It Works
Its cycle is based on the way it advances a guided working member against supported material. The design therefore prioritises rigid reaction support around the working zone; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
When comparing versions of the Fix Frame Press Machine Ram Type, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Capacity | Bed Size (mm) | Bed to Ram (Delight Gap) mm | Stroke (Travel of Ram) mm | Shut Height | Motor HP | Oil Tank |
|---|---|---|---|---|---|---|
| 20 Ton | 508 x 305 | 350 | 100 | 250 | 3 | 150 |
| 30 Ton | 558 x 355 | 350 | 100 | 250 | 3 | 150 |
| 50 Ton | 800 x 400 | 400 | 125 | 275 | 5 | 200 |
| 60 Ton | 800 x 450 | 400 | 125 | 275 | 5 | 200 |
| 80 Ton | 800 x 500 | 450 | 125 | 325 | 7.5 | 250 |
| 100 Ton | 900 x 500 | 450 | 150 | 300 | 7.5 | 250 |
| 150 Ton | 1000 x 600 | 500 | 150 | 350 | 10 | 300 |
| 200 Ton | 1000 x 650 | 600 | 150 | 450 | 15 | 300 |
| 250 Ton | 1200 x 700 | 600 | 150 | 450 | 15 | 350 |
| 300 Ton | 1200 x 700 | 650 | 175 | 475 | 20 | 400 |
| 400 Ton | 1200 x 800 | 650 | 175 | 475 | 25 | 500 |
| 500 Ton | 1250 x 850 | 650 | 175 | 475 | 30 | 600 |
FAQs
Frequently Asked Questions
What is a Fix Frame Press Machine Ram Type used for?
The Fix Frame Press Machine Ram Type is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Fix Frame Press Machine Ram Type?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Fix Frame Press Machine Ram Type?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Fix Frame Press Machine Ram Type?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Fix Frame Press Machine Ram Type may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Fix Frame Press Machine Ram Type?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Fix Frame Press Machine Ram Type be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Fix Frame Press Machine Ram Type price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Fix Frame Press Machine Ram Type.
