Drilling Machines
Electrical Tapping Machine
For work involving plates, castings, fittings, and fabricated parts, the Electrical Tapping Machine offers a process-specific solution. The operating method supports assembly shops, fabrication units, and batch production and centres on controlled tool alignment and reversal.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

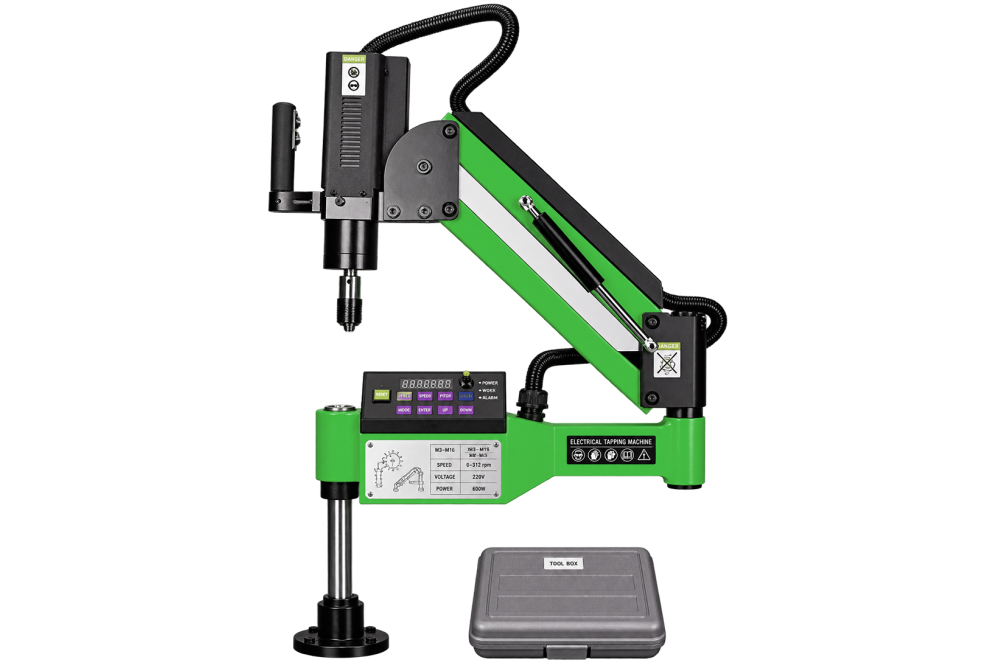

Electrical Tapping Machine
Machine Purpose
The Electrical Tapping Machine provides a dedicated method of forming internal threads in prepared holes. Rather than acting as unrelated general equipment, it brings the working elements together around plates, castings, fittings, and fabricated parts.
How It Works
A typical cycle begins with locating the job correctly, after which the machine drives and reverses a tap in alignment with the hole. Its controlled tool alignment and reversal supports repeat work without replacing the need for trained operation.
Industrial Applications
The machine is applicable to assembly shops, fabrication units, and batch production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Electrical Tapping Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
Vertical Electric Tapping Machine |
DS16 | Vertical Electric Tapping Machine | Vertical Electric Tapping Machine |
| Modle | M3-M16 | MR-DS36 | MR-DS42 |
| Tap size | 220V/600W | M6-M36 | M12-M42 |
| Power | 3000rpm | 220V | 220V |
| Speed | - | 0-150rmp/min | 0-90rmp/min |
| Voltage | - | 1200W | 1200W |
| Standard Equipment | - | Eleven tap collets:M6-8,M10,M12,M14,M16,M18-20,M22,M24,M27-30,M33,M36 | Eleven tap collets;M12,M14,M16,M18-20,M22,M24,M27-30,M33,M36,M40,M42 |
| Optional Equipment | - | Magnetic Seat : 1000KG | Magnetic Seat : 1000 KG |
| - | Table | Table | |
| - | Tap collets as the custormer required (ISO,JPS,IN) | Tap collets: As the customer required (ISO,JPS,in) |
Videos
Product Videos
Applications
Applications
Machinery and equipment manufacturing
Electrical and automotive parts production
Sheet metal and chassis fabrication
Industrial assembly lines
FAQs
Frequently Asked Questions
What does a Electrical Tapping Machine do?
The Electrical Tapping Machine is intended for forming internal threads in prepared holes. It is arranged around plates, castings, fittings, and fabricated parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Electrical Tapping Machine complete its working cycle?
The machine drives and reverses a tap in alignment with the hole. Its controlled tool alignment and reversal supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Electrical Tapping Machine?
It is primarily associated with plates, castings, fittings, and fabricated parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Electrical Tapping Machine?
Typical users include assembly shops, fabrication units, and batch production. In these settings, the Electrical Tapping Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Electrical Tapping Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Electrical Tapping Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Electrical Tapping Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Electrical Tapping Machine.
