Drilling Machines

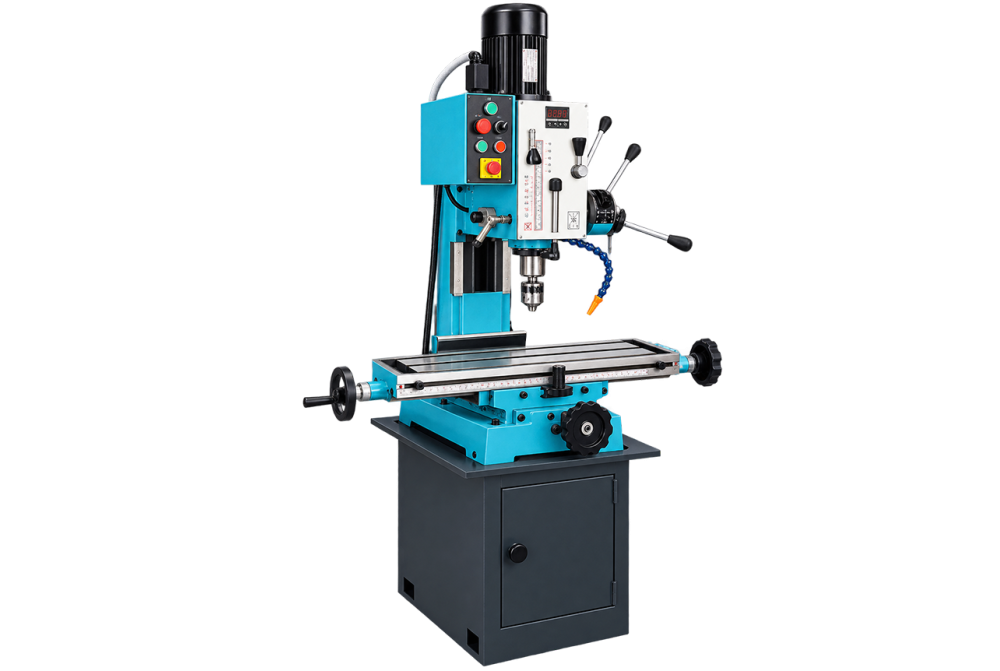

Drilling Cum Milling Machine With Stand
Built around machining faces, slots, keyways, and contoured features, the Drilling Cum Milling Machine With Stand provides a dedicated working arrangement. Typical users include tool rooms, maintenance departments, and component factories, where controlled table travel and rigid cutter support is valuable.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Drilling Cum Milling Machine With Stand
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Drilling Cum Milling Machine With Stand offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to tool rooms, maintenance departments, and component factories. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
Its cycle is based on the way it feeds supported work against a rotating multi-edge cutter. The design therefore prioritises controlled table travel and rigid cutter support; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
When comparing versions of the Drilling Cum Milling Machine With Stand, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Drilling Capacity
|
45 mm
|
| Face Milling Capacity
|
80 mm
|
| End Milling Capacity
|
32 mm
|
| Tapping Capacity
|
4 mm to 20 mm
|
| Distance:Spindle Nose to Table
|
450 mm
|
| Min Distance:Spindle Axis to Column
|
260 mm
|
| Spindle Travel
|
130 mm
|
| Spindle Tapper
|
MT 4
|
| Step of Spindle Speed
|
6
|
| Range of Spindle Speed
|
80-1250 RPM
|
| Swivel Angle of Head Stock Vertically
|
+- 90 degree
|
| Table Size
|
800x240 mm
|
| Forward and Backward Travel of Table
|
200 mm
|
| Left and Right Travel of Table
|
500 mm
|
| Motor Power
|
1.50 KW/2 H.P.
|
| Net Weight/Gross Weight
|
450 Kg
|
Videos
Product Videos
Applications
Applications
Small component fabrication in metal and plastic
Tapping and countersinking
Face and end milling
Slotting and keyway cutting
Precision drilling
FAQs
Frequently Asked Questions
What does a Drilling Cum Milling Machine With Stand do?
The Drilling Cum Milling Machine With Stand is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Drilling Cum Milling Machine With Stand complete its working cycle?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Drilling Cum Milling Machine With Stand?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Drilling Cum Milling Machine With Stand?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Drilling Cum Milling Machine With Stand may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Drilling Cum Milling Machine With Stand?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Drilling Cum Milling Machine With Stand need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Drilling Cum Milling Machine With Stand?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Drilling Cum Milling Machine With Stand.
