Drilling Machines

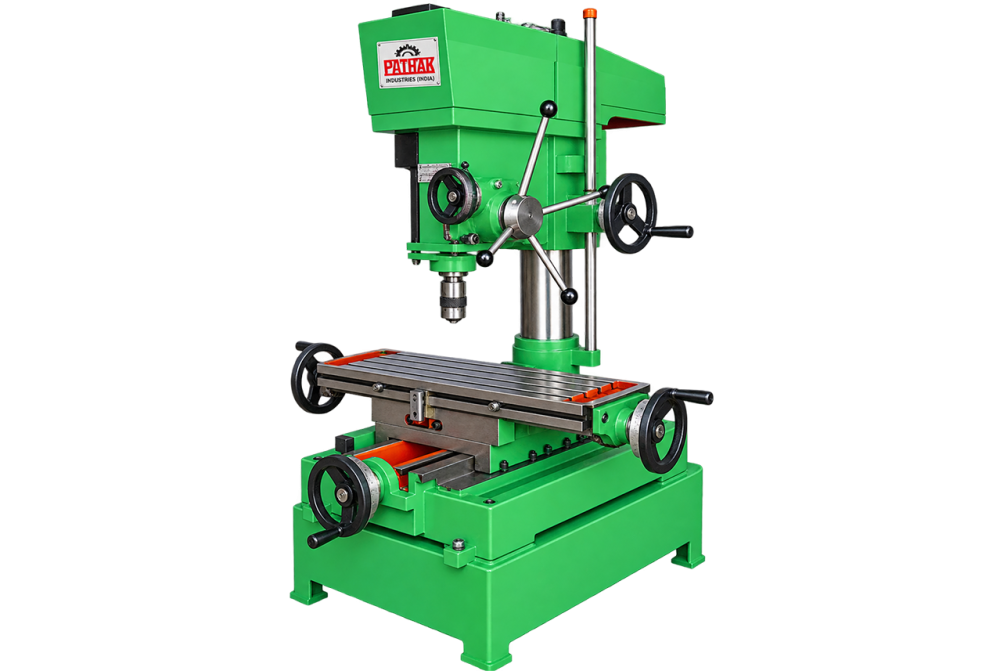

Drilling Cum Milling Machine PM 40
The primary role of the Drilling Cum Milling Machine PM 40 is machining faces, slots, keyways, and contoured features. Its controlled table travel and rigid cutter support suits tool rooms, maintenance departments, and component factories.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Drilling Cum Milling Machine PM 40
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Drilling Cum Milling Machine PM 40 offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to tool rooms, maintenance departments, and component factories. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Drilling Cum Milling Machine PM 40 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | DM 40 |
| Capacity in Mild Steel | 40 |
| No.of Spindle Speeds |
80 to 3600 4+4=8 |
| Number of Auto Feed | .05 |
| Spindle Center to Column | 260 |
| Max. Travel of Spindle | 250 |
| Max. Dist Spindle Nose to Table | 500 |
| Max. Dist. Spindle Nose to Base | |
| Spindle Nose Bore Fitting | M.T.4 |
| Dia of Table | 228 *765 |
| Dia of RAM | 78 |
| Base Area Machined | 475 * 700 |
| Dia to Column | 108 |
| Total Height of the Machine | 1600 |
| H.P. of The Motor | 1.5 |
| RPM | 1440 |
| Vee Belt | B 56 |
| Swing | 45 L/R |
| End Mill Cap | 20 |
| Net Weight | 500 kgs |
Videos
Product Videos
Applications
Applications
Tool Rooms
Workshops
Fasteners Industries
Fabrication Workshops
Drilling metal
Drilling wood
Drilling plastic
Machinery and equipment manufacturing
Sheet metal and chassis fabrication
FAQs
Frequently Asked Questions
Why is a Drilling Cum Milling Machine PM 40 used in industrial work?
The Drilling Cum Milling Machine PM 40 is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Drilling Cum Milling Machine PM 40?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Drilling Cum Milling Machine PM 40 handle?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Drilling Cum Milling Machine PM 40 typically installed?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Drilling Cum Milling Machine PM 40 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Drilling Cum Milling Machine PM 40?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Drilling Cum Milling Machine PM 40?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Drilling Cum Milling Machine PM 40?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Drilling Cum Milling Machine PM 40.
