Drilling Machines

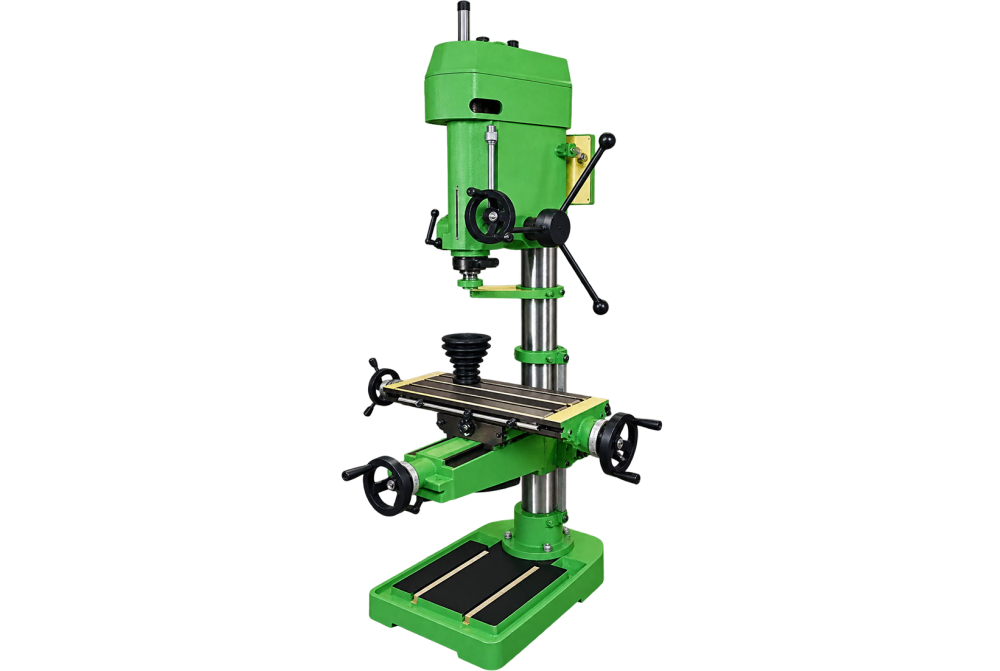

Drilling Cum Milling Machine PM 25
The primary role of the Drilling Cum Milling Machine PM 25 is machining faces, slots, keyways, and contoured features. Its controlled table travel and rigid cutter support suits tool rooms, maintenance departments, and component factories.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Drilling Cum Milling Machine PM 25
Machine Purpose
For facilities needing machining faces, slots, keyways, and contoured features, the Drilling Cum Milling Machine PM 25 offers a process-specific workstation. Its arrangement supports machine parts, dies, fixtures, and repair components while keeping the important operating area accessible.
Industrial Applications
Likely users are found in tool rooms, maintenance departments, and component factories. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Drilling Cum Milling Machine PM 25 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PM 25 |
| Drilling Capacity | 25 MM |
| Spindle Speed | SIX SPEED |
| Speed Range | 73 to 1850 RPM |
| Spindle Nose | MT-3 |
| Spindle Center to Column | 225 MM |
| Spindle Travel | 150 MM |
| Table Travel | 480 MM |
| Maxi. Distance Spindle to Table | 700 MM |
| Maxi.Distance Spindle to Base | 940 MM |
| Working Surface of Base | 300 X 320 |
| Working Surface of Table | 160 X 520 |
| Column Diameter | 74 MM |
| Machine Base | 470 X 320 |
| Motor | 1 HP / 1440 RPM |
| V Belt Size | B-46 |
| Weight of Machine (Approx.) | 150 kg |
| MILLING DETAILS | |
| Cross Travel (Left to Right ) | 300 MM |
| Longitudinal Travel | 150 MM |
| Table Size | 160 x 520 MM |
Videos
Product Videos
FAQs
Frequently Asked Questions
Why is a Drilling Cum Milling Machine PM 25 used in industrial work?
The Drilling Cum Milling Machine PM 25 is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Drilling Cum Milling Machine PM 25?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Drilling Cum Milling Machine PM 25 handle?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Drilling Cum Milling Machine PM 25 typically installed?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Drilling Cum Milling Machine PM 25 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Drilling Cum Milling Machine PM 25?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Drilling Cum Milling Machine PM 25?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Drilling Cum Milling Machine PM 25?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Drilling Cum Milling Machine PM 25.
