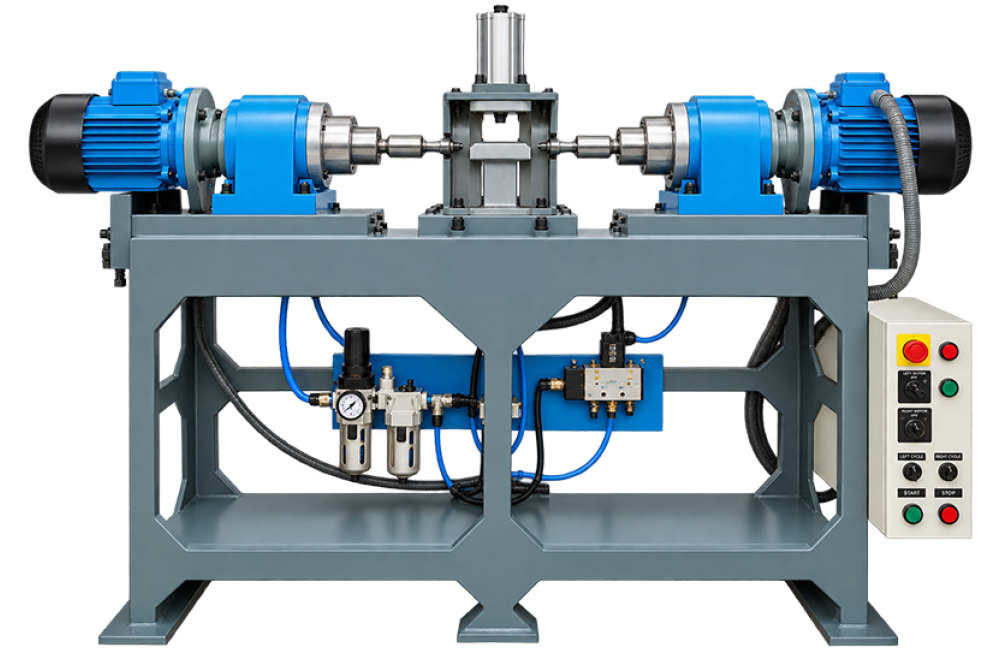

Double Head Riveting Machine
The primary role of the Double Head Riveting Machine is forming permanent riveted joints. The operating method supports automotive parts, cookware, sheet-metal products, and repair shops and centres on guided pressure for consistent joint formation. Two heads approach related operations from both sides of the setup.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Double Head Riveting Machine
Machine Purpose
Used for forming permanent riveted joints, the Double Head Riveting Machine addresses a distinct stage of industrial work. It accommodates plates, linings, utensils, and title-specific assemblies and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include automotive parts, cookware, sheet-metal products, and repair shops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
In operation, it supports the assembly and deforms the rivet with controlled pressure. The practical focus is guided pressure for consistent joint formation. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Two heads approach related operations from both sides of the setup.
Selection Considerations
When comparing versions of the Double Head Riveting Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODELS | Riveting capacity (M.S.38kg/mm U.T.S) (mm) | Throat depth (mm) |
Shut height (Max) (mm) |
Stroke Adjustable (mm) | Cycle time Adjustable(mm) | Over all dim.(mm) | Motor3 415V | Air Pressure |
| Model-003 | 3 | 110 | 200 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.25 HP (0.18 kw) | 3-7 kg/cm |
| Model-005 | 6 | 110 | 180 | 0-30 | 0-9.9 sec. | 470x400x860 | 0.5 HP (0.37 kw) | 3-7 kg/cm |
| Model-008 | 8 | 140 | 225 | 0-45 | 0-9.9 sec. | 570x525x1100 | 1 HP (0.75 kw) | 3-7 kg/cm |
| Model-012 | 12 | 200 | 280 | 0-45 | 0-9.9 sec. | 625x585x1325 | 1.5 HP (1.2 kw) | 3-7 kg/cm |
| Model-016-H | 16 | 225 | 220 | 0-45 | 0-9.9 sec | 540x615x1375 | 6.0 HP (4.5 kw) Including Power Pack | 0-80 kg/cm (Hydraulic Pressure) |
Applications
Applications
Rollers
Bakelite Metal Assembly
Bicycle Parts
Chain Assembly
Fans
Clutch Brake Liners
Toys
Electronics
Electrical Parts
Castors
Hand Tools
Auto Electricals
Surgical Instruments
Baggage
Locks
Typewriters
Brake shoes
Clutch plates
Seat structures
Busbars
Switchgear panels
Steel chairs
Cabinets
Frames
Hinges
Handles
FAQs
Frequently Asked Questions
Which operation is the Double Head Riveting Machine designed to perform?
The Double Head Riveting Machine is intended for forming permanent riveted joints. It is arranged around plates, linings, utensils, and title-specific assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Double Head Riveting Machine work?
The machine supports the assembly and deforms the rivet with controlled pressure. Its guided pressure for consistent joint formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Double Head Riveting Machine?
It is primarily associated with plates, linings, utensils, and title-specific assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Double Head Riveting Machine?
Typical users include automotive parts, cookware, sheet-metal products, and repair shops. In these settings, the Double Head Riveting Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Double Head Riveting Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Double Head Riveting Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Double Head Riveting Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Double Head Riveting Machine.
When is design arrangement useful on a Double Head Riveting Machine?
Two heads approach related operations from both sides of the setup. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
