Cutting Machines

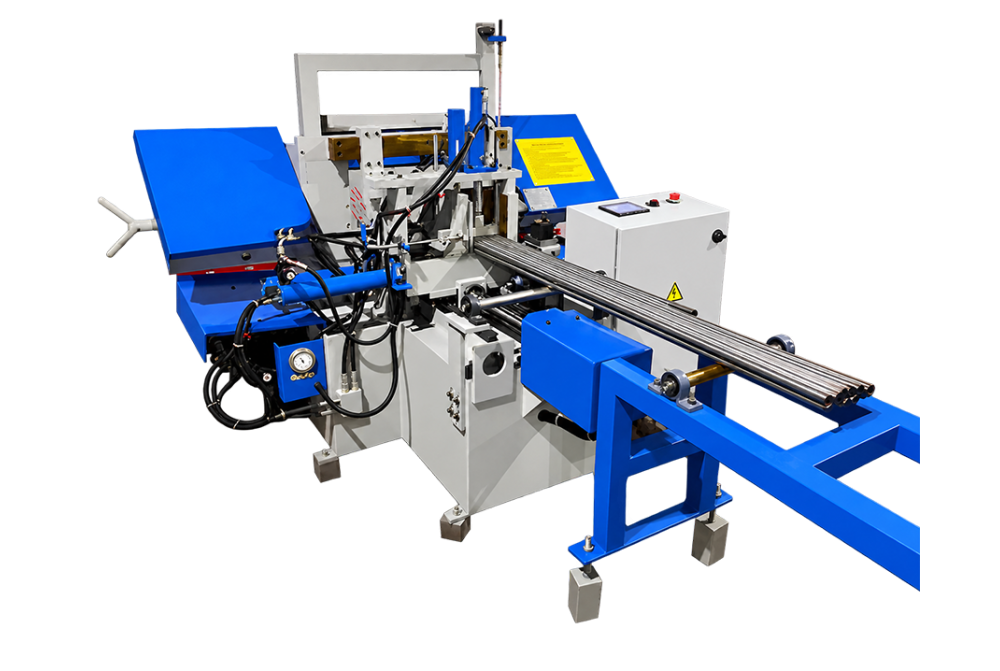

Double Column Full Automatic Bandsaw
For work involving bars, tubes, profiles, timber, or title-specific stock, the Double Column Full Automatic Bandsaw offers a process-specific solution. The operating method supports material stores, fabrication shops, sawmills, and workshops and centres on continuous cutting with stable blade guidance. Automatic functions reduce repeated manual intervention during the cycle.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Double Column Full Automatic Bandsaw
Machine Purpose
The Double Column Full Automatic Bandsaw provides a dedicated method of cutting stock with a continuous band blade. Rather than acting as unrelated general equipment, it brings the working elements together around bars, tubes, profiles, timber, or title-specific stock.
How It Works
Its cycle is based on the way it guides a tensioned loop blade through supported material. The design therefore prioritises continuous cutting with stable blade guidance; actual output still depends on the chosen model, tool, workpiece, and operating method. Automatic functions reduce repeated manual intervention during the cycle.
Industrial Applications
Likely users are found in material stores, fabrication shops, sawmills, and workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within cutting machines can differ in arrangement and capability. The required Double Column Full Automatic Bandsaw should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPDCB-250 | TLPDCB-350 | TLPDCB-450 | TLPDCB-550 |
| Cutting Capacity in Round | 250 mm | 350 mm | 450 mm | 550 mm |
| Cutting Capacity in Square | 250x250 mm | 350x350 mm | 450x450 mm | 550x550 mm |
| Blade Size | 4100x34x1.1 mm | 4100x34x1.1 mm | 5230x34x1.1 mm | 6300x41x1.1 mm |
| Blade Speed | 20-70 mtr/min | 20-70 mtr/min | 20-70 mtr/min | 20-70 mtr/min |
| Main Motor Power | 3.0 H.P. | 3.0 H.P. | 5.0 H.P. | 7.5 H.P. |
| Hydraulic Motor Power | 1.5 H.P. | 1.5 H.P. | 2.0 H.P. | 2.0 H.P. |
| Coolant Motor Power | 0.25 H.P. | 0.25 H.P. | 0.25 H.P. | 0.25 H.P. |
| Working Height | 650 mm | 650 mm | 650 mm | 650 mm |
| Machine Weight | 1100 kg | 1100 kg | 1400 kg | 1800 kg |
| UP-Down Movement | On Twin Pillars mounted LM Rails,with two hydraulic cylinders,down feed precisely controlled by temperature & pressure compensated flow control value | |||
FAQs
Frequently Asked Questions
What does a Double Column Full Automatic Bandsaw do?
The Double Column Full Automatic Bandsaw is intended for cutting stock with a continuous band blade. It is arranged around bars, tubes, profiles, timber, or title-specific stock, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Double Column Full Automatic Bandsaw complete its working cycle?
The machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Double Column Full Automatic Bandsaw?
It is primarily associated with bars, tubes, profiles, timber, or title-specific stock. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Double Column Full Automatic Bandsaw?
Typical users include material stores, fabrication shops, sawmills, and workshops. In these settings, the Double Column Full Automatic Bandsaw may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Double Column Full Automatic Bandsaw?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Double Column Full Automatic Bandsaw need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Double Column Full Automatic Bandsaw?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Double Column Full Automatic Bandsaw.
What is the benefit of automatic operation on this Double Column Full Automatic Bandsaw?
Automatic functions reduce repeated manual intervention during the cycle. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
