Cutting Machines
Degree Cutting Bandsaw Machine
The Degree Cutting Bandsaw Machine is designed for cutting stock with a continuous band blade. The operating method supports material stores, fabrication shops, sawmills, and workshops and centres on continuous cutting with stable blade guidance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

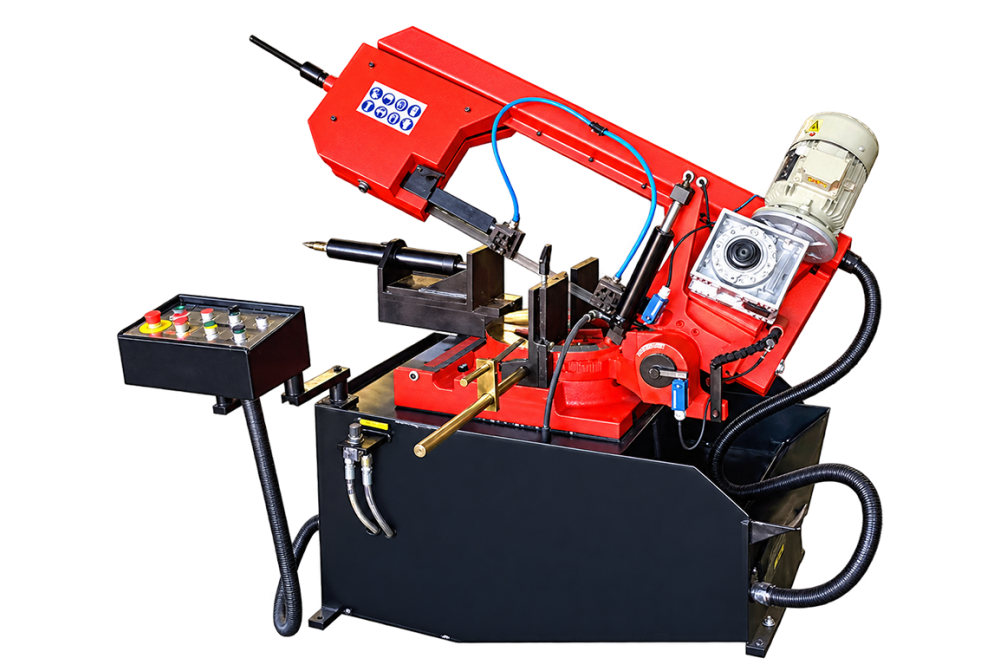

Degree Cutting Bandsaw Machine
Machine Purpose
For facilities needing cutting stock with a continuous band blade, the Degree Cutting Bandsaw Machine offers a process-specific workstation. Its arrangement supports bars, tubes, profiles, timber, or title-specific stock while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to material stores, fabrication shops, sawmills, and workshops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it guides a tensioned loop blade through supported material. The practical focus is continuous cutting with stable blade guidance. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
When comparing versions of the Degree Cutting Bandsaw Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | HBS 300 | MODEL | HBS 300 |
| Minimum Order Quantity | 1 Piece | Diameter | 250 |
| Brand | Sawmax | Pressure | 40-50 kg |
| Type | Semi automatic | Voltage | 410V |
| Features | Metal cutting,degree cutting, hydraulic clamping and frame autolifting |
Weight | 540 Kgs approx |
| Capacity | 250 mm round with Miter cutting | Blade Size | 2910*27*0.9 mm |
| Material | Ms, ss, aluminium, bronze, die steel etc. | Frequency (Hertz) | 50 |
| Material Grade | Ms,ss,die steel etc. | Band Tension | 20 Nm |
| Motor Power | 2 HP | Blade Speed | 35-70 mtr |
| Automatic Grade | Automatic | Coolant Pump | 0.10 |
| Colour | Red & black | Coolant Tank Capacity | 35 |
| Condition | New | Pipe Material | Any |
| Orientation | India | Power | 2.3 |
| Warranty | 1 Year | Table Material | Cast iron |
| Cutting Angel (Degree) | Upto 60 (Degree) | Table Size | 300 mm |
| Number of Wheels | 2 | Usage | Horizontal Metal Cutting |
Videos
Product Videos
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
What does a Degree Cutting Bandsaw Machine do?
The Degree Cutting Bandsaw Machine is intended for cutting stock with a continuous band blade. It is arranged around bars, tubes, profiles, timber, or title-specific stock, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Degree Cutting Bandsaw Machine complete its working cycle?
The machine guides a tensioned loop blade through supported material. Its continuous cutting with stable blade guidance supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Degree Cutting Bandsaw Machine?
It is primarily associated with bars, tubes, profiles, timber, or title-specific stock. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Degree Cutting Bandsaw Machine?
Typical users include material stores, fabrication shops, sawmills, and workshops. In these settings, the Degree Cutting Bandsaw Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Degree Cutting Bandsaw Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Degree Cutting Bandsaw Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Degree Cutting Bandsaw Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Degree Cutting Bandsaw Machine.
